Pressure Sensor - 250 bar - 0..10V - G1/4
Request for quotation:

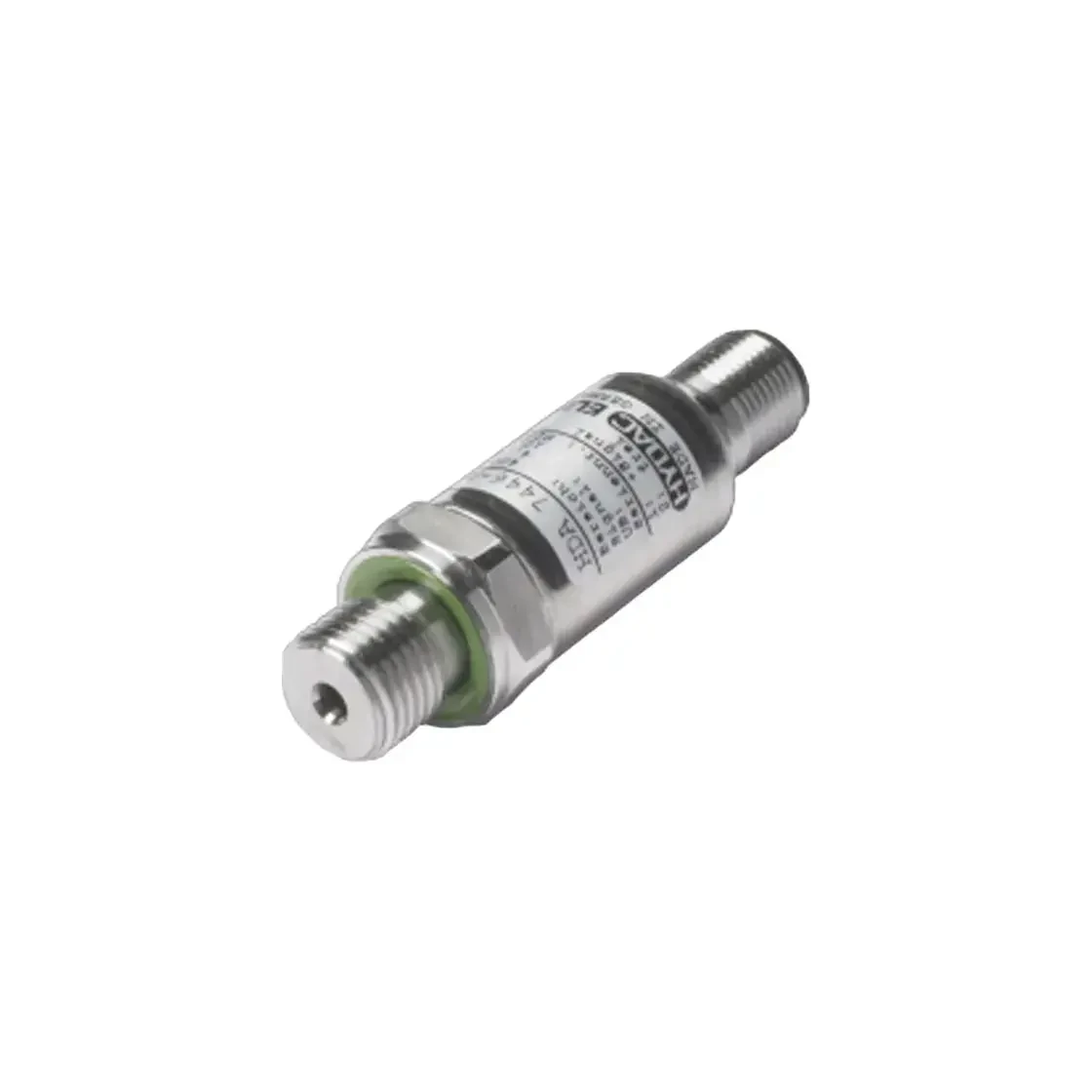

Pressure Sensor - 250 bar - 0..10V - G1/4" - M12 - HDA 7446-B-250-000

Request for quotation:
Connection M12×1
Electrical connection M12 DIN EN 61076-2-101
Mechanical connection G1/4 A ISO 1179 / külső
Pressure Range 0 - 250 bar
Type A - 4-20mA
Maximum overpressure 500
Manufacturer article number: 908115
Model: DTA0250M14HD7
Availability: Available to order
Manufacturer: Hydac
Approvals and Technical Data
Property Value
Approval UL approval
Electrical connection M12x1 / 4p
Mechanical connection G1/4 A ISO 1179-2 / external
Output signal 0 - 10V
Accuracy 1.00% max = 0.5% tip.
Maximum pressure range 250 bar
Minimum pressure range 0 bar
Pressure unit BAR
Pressure type Relative
