Description
| property | value |
|---|---|
| type | electronic |
| series | HEDE1 |
| Connection size | G1/4 pressure |
| Outputs | 0 - 10V, 4 - 20mA |
| Response time | Adjustment < 5 ms |
| Hydraulic Interface | 1/4 inch |
| Connection type | M12 plug connector |
| Component Type | 2X |
| Power | 24VDC |
| Plug variant | M12, 4-pin standard |
| Case material | EPDM/X (Santoprene); PBTP (Pocan); PC (Macrolon); V2A (1.4301) |
| Gasket material | FKM |
| Supplemental energy | 18 - 36VDC |
| Temperature range | -20 - 80 °C |
| Pressure Rating | 250 bar |
| Protection class | IP 67 |
| Liquid temperature range | -25 - 80 °C |

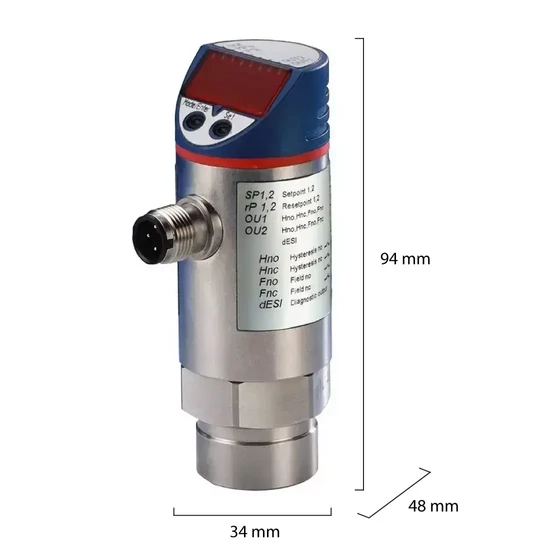

| Dimensions | 48 mm depth x 34 mm width x 94 mm height |
