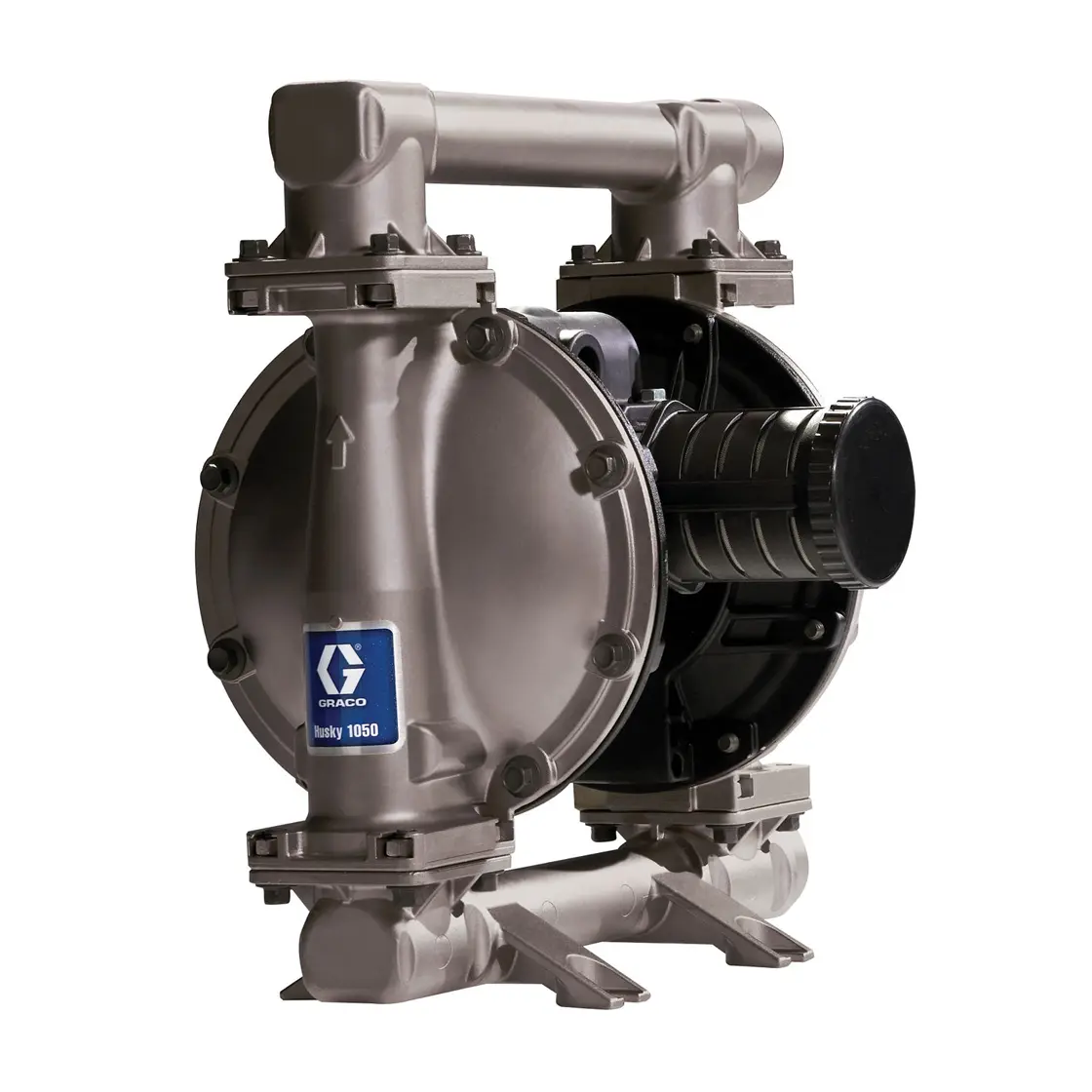

Air-Operated Double Diaphragm Pump - Husky 1050 1"

438.6743 € + VAT

Qty:pcs

Add to Cart

Model:

HPM1050GRSSG16

Availability:

2 pcs in stock

Husky 1050 Air-Operated Diaphragm Pump: Advanced Performance and Reliability

The Husky 1050 air-operated diaphragm pump is engineered for superior performance in industrial applications. It features a stall-free, low-pulsation air valve that ensures smooth and rapid changeover. Its one-piece center section design effectively eliminates air leaks, leading to more efficient operation and reduced maintenance compared to other diaphragm pumps.

Key Advantages

Extended Diaphragm Life: Offers up to five times longer diaphragm life, significantly reducing maintenance needs and downtime.
Modular Air Valve: Provides stall-free, low-pulsation operation for smooth and rapid changeover.
One-Piece Center Section: Eliminates air leaks, ensuring more efficient operation.
Four-Bolt Joint Design: Delivers even sealing pressure, contributing to leak-free performance.
Multiple Ports: Increases installation flexibility by offering more connection options.
Enhanced Efficiency: Up to 30% more efficient than the market leader.
Increased Fluid Flow: Provides a 20% increase in fluid flow compared to the Husky 1040 model.

Optional Features

DataTrak™: Offers runaway protection and tracks material usage.
Pulse Output: Provides cycle count capability.
Spring-Loaded, Externally Serviceable Pilot Valves: Enables faster changeover and reduced pulsation.

Description

Description

Technical Specifications

Type: Pneumatic diaphragm pump
Model/Series: Husky 1050
Power Source: Air
Application: Industrial
Standards Met: ATEX, CE
Weight: 4.24 kg

Fluid and Pressure Ratings

Maximum Air Pressure: 8.6 bar (0.86 MPa, 860 kPa, 125 psi)
Maximum Fluid Pressure: 8.6 bar (0.86 MPa, 860 kPa, 125 psi)
Maximum Flow Rate: 189 L/min
Maximum Cycle Rate: 280 CPM
Maximum Operating Temperature: 82 °C
Maximum Solid Size: 3.175 mm (0.3175 cm)

Materials

Center Section Material: Aluminum
Fluid Section Material: Stainless Steel
Wetted Material: Stainless Steel, Aluminum, Santoprene, PTFE
Diaphragm Material: Santoprene
Ball Material: Santoprene
Seat Material: Santoprene
Manifold O-Ring Material: PTFE
Seals Material: FKM (This was listed as "Seals" in the previous context, but its direct relevance to the pump's components suggests it's a general seal material used in the pump, not exclusively for the air valve as suggested previously. I'll maintain FKM for consistency with your prior data on seals.)

Connections

Connection Type: Threaded
Air Inlet Size: 1/2 in (Female NPT)
Air Exhaust Port Size: 3/4 in (Female NPT)
Fluid Inlet Size: 1 in (2.54 cm, 25.4 mm) BSPT
Fluid Outlet Size: 1 in (2.54 cm, 25.4 mm) BSPT
Manifold Configuration: Center Port, End Port

Compatible Materials (Fluids)

Antifreeze
Detergents
Motor Oil
Hydraulic Fluid
Cutting Oil
Water - Wastewater Transfer
