Actuator - AKP 851E-1/4"-GTE58-8F

93.6071 € + VAT

Qty:pcs

Add to Cart

Model:

PVP22D14AKP851E

Availability:

2 pcs in stock

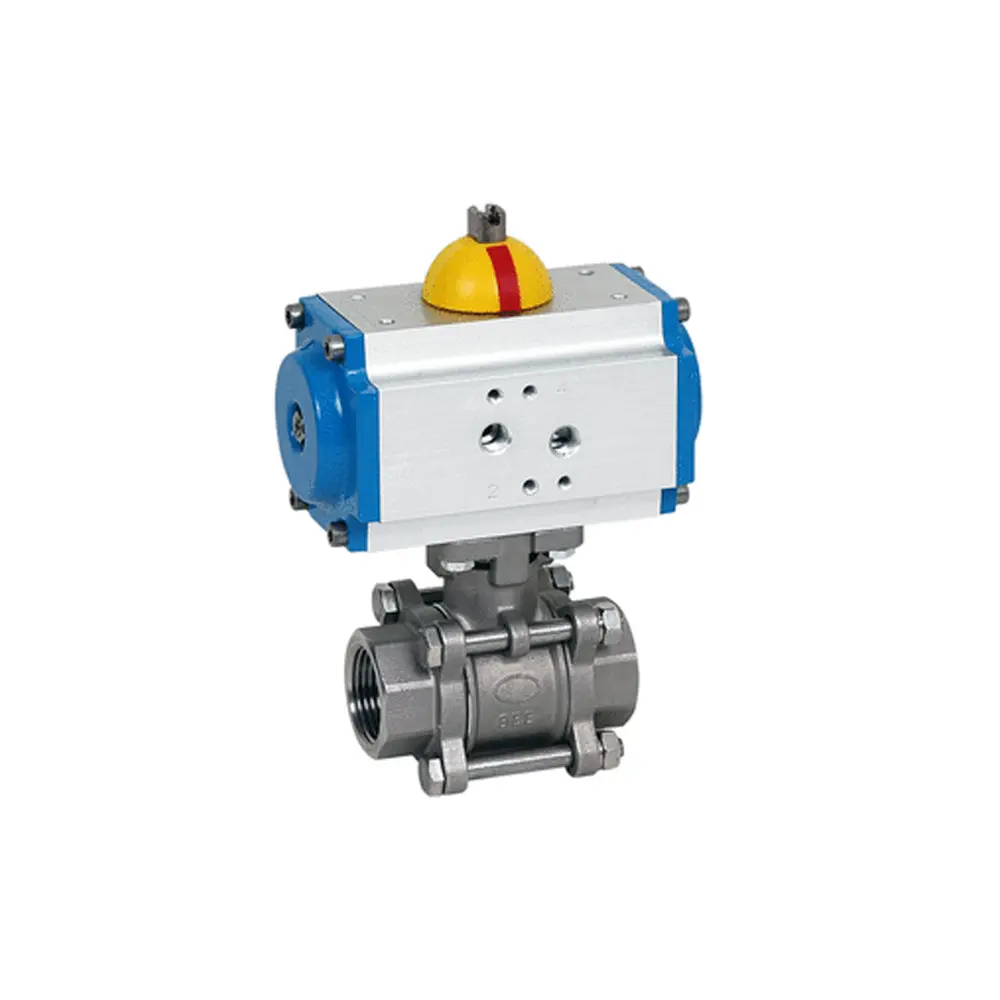

Automatic Ball Valves with Pneumatic Actuators

These automatic ball valves offer a high-performance, reliable solution for industrial applications. The design prioritizes durability and versatility, ensuring seamless operation under various conditions.

General Information

Operating Medium: Greasing media, e.g., different types of oil, oiled compressed air, etc. (Not suitable for non-greasing media such as water, base solutions, etc.).
Maximum Differential Pressure:
- 7 bar for types 71MEA, 71MSA, KSA75, 87EA.
- Standard differential pressure: 16 bar.
Operating and Ambient Temperature Range: -20°C to +70°C.
Control Pressure for Pneumatic Actuators: 6 bar.
Standard Version of Single-Acting Pneumatic Actuators: "Spring closing."

Description

Description

Ball Valve Design Features

Body: 3-piece body.
Antistatic Device: Integrated antistatic protection.
Full Port: According to DIN EN 1983.
Gland Nut: Has to be retightened within certain periods.
Adjustable Stem Packing: Allows for adjustment of the stem packing tightness.

Actuator Design Features

Design: Double piston turn actuator, single-acting with spring return.
Turning Angle: 90° Standard; 120°, 180°, 240° on request.
Setting Range: 5° open position.
Optional Both Sides Adjustability: The actuator can be adjusted from both sides.
Interface: Ball valve, flange type, and Bi-square according to ISO 5211.

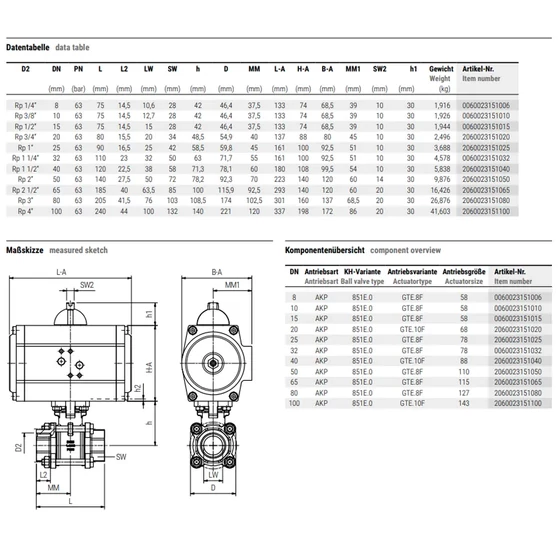

Technical Data

Control Pressure: 3 bar up to 10 bar.
Material Body: Aluminum anodized.
Material Piston: Aluminum.
Material Gaskets: NBR.
Material Cap: Aluminum epoxy resin resistant.
Standard Temperature Range: -20°C to +70°C.
Note on Medium Temperature: At a medium temperature higher than +70°C, the actuator has to be mounted in a raised position.

Approvals

Classification: PED category 3 according to PED 2014-68-EU.
Material: Non-corrosive cast steel according to DIN EN 10283.
TA-Air Approval: According to VDI 2440.
