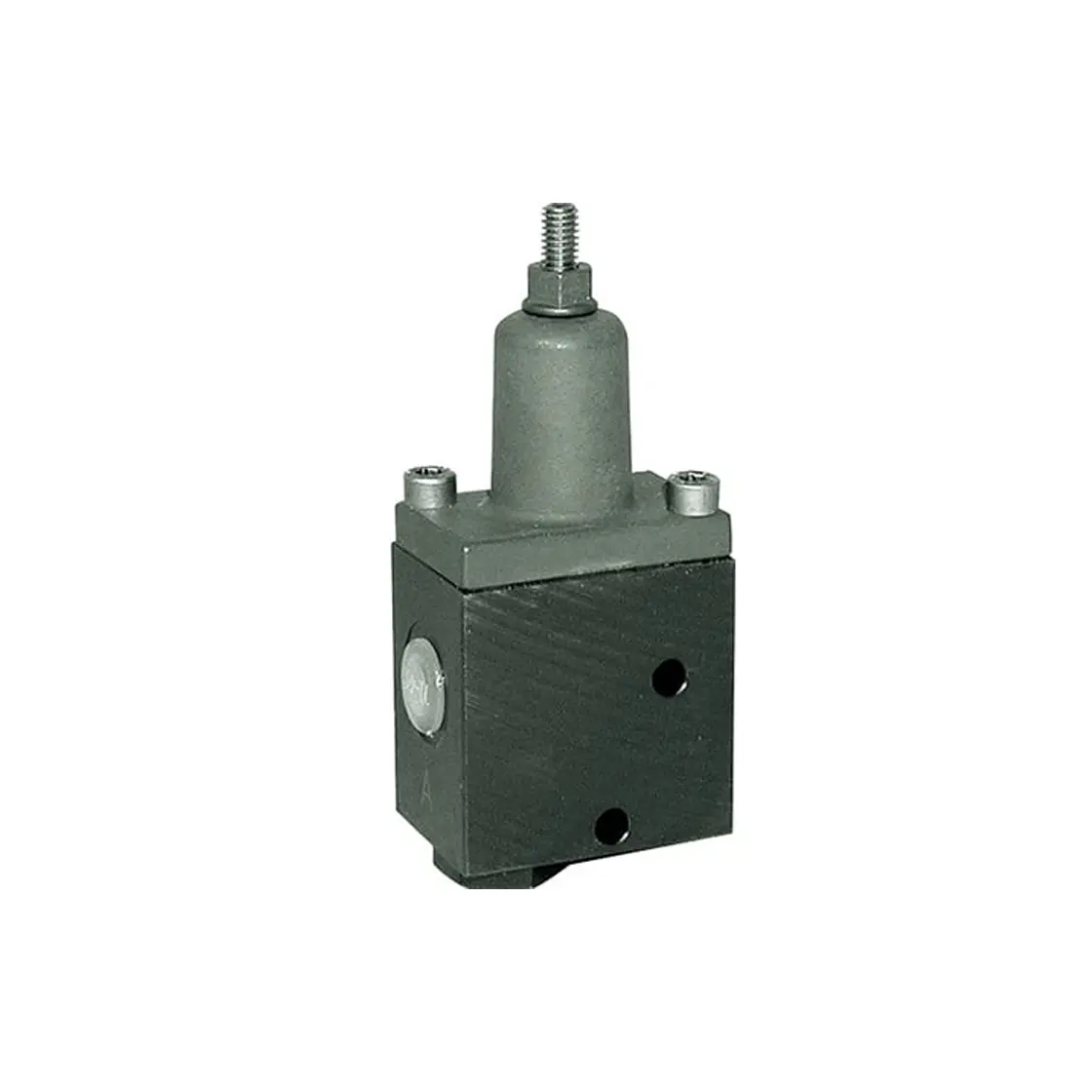

Sequence valve - inline - 2954410 - G1/4" - 10-75bar - 500bar - 8l/min

Sequence valves are used in power workholding circuits for pressure-dependent sequence control. Their compact size allows for direct mounting to the clamping fixture, requiring only one pressure line from the power unit to the fixture for single-acting cylinders.

Several sequence valves can be manifold-mounted together to form a battery with only one common P-line.

Technical Specifications:

• Type: Directly-controlled spool valve
• Type of mounting: Pipes or M5 screws
• Port size: G 1/4
• Max operating pressure: 500 bar
• Max. flow rate: 8 l/min
• Range of adjustment: 10 - 75 bar
• Pressure change per rotation: approx. 6.5 bar
• Check valve opening pressure: 0.15 bar

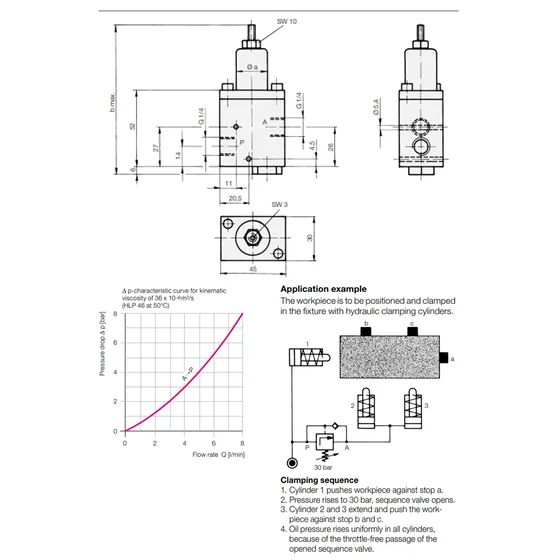

• Diameter 'a': 22 mm
• 'b' max: 108.5 mm
• Weight: 0.52 kg
