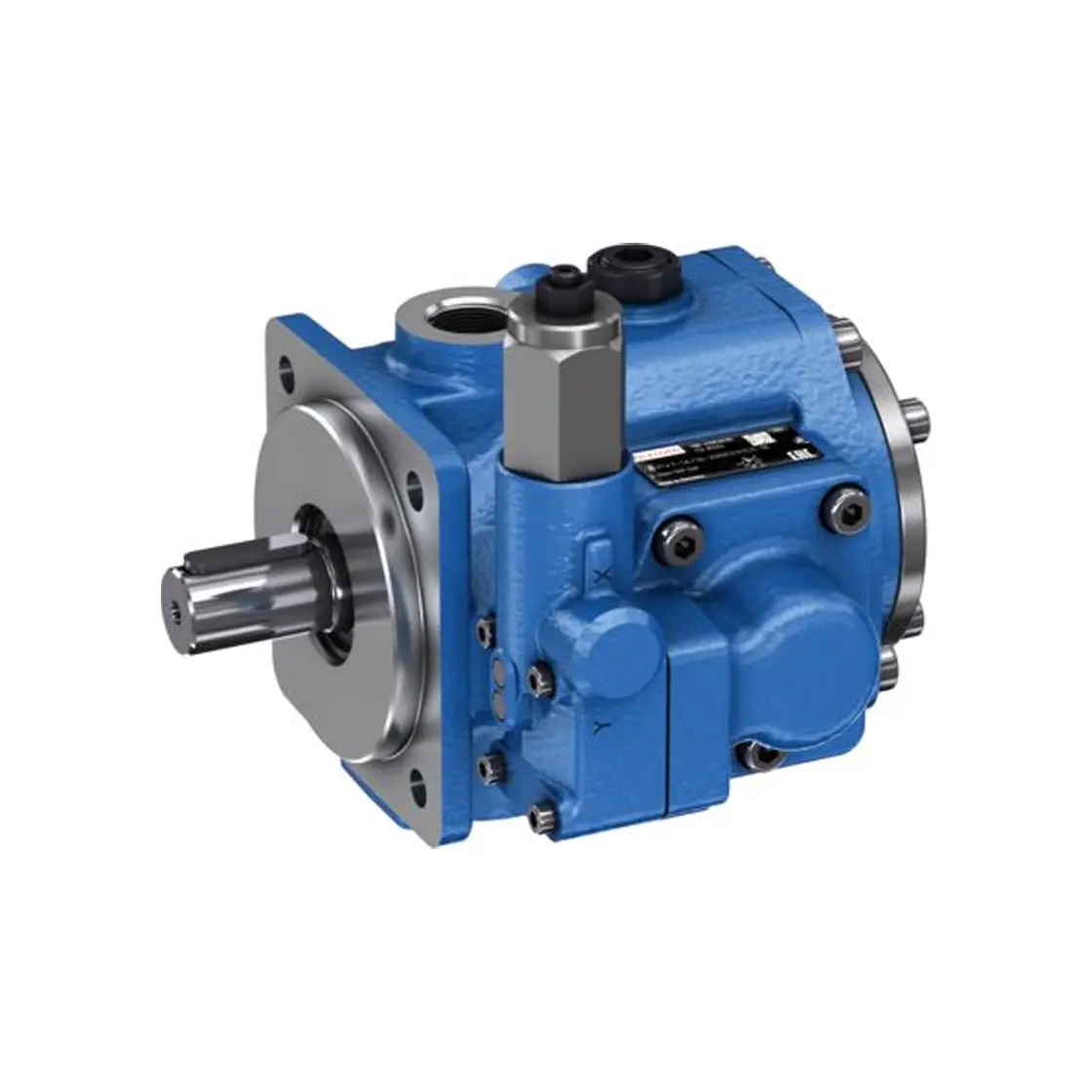

Variable Vane Pump - PV7-1X/16-20RE01MC0-16

PV7 Series Variable Displacement Pump: Precision and Reliability for Industrial Use

This variable displacement pump is engineered for industrial applications within an open circuit, offering high reliability and precise control for a variety of hydraulic systems.

Key Features

• High reliability in industrial settings.
• Low noise and pulsation level ensuring smooth operation.
• Precise control behavior with low hysteresis and high repetition accuracy.
• Flexibly combinable with other Rexroth pumps for versatile system configurations.
• Includes a pressure controller.
• Equipped with NBR seals.

Technical Specifications

• Displacement Type: Variable
• Size: 20 cm3
• Product Family: PV7...C/D/N/W
• Max. Operating Pressure: 160 bar
• Max. Flow: 29 l/min
• Through-drive: Yes
• Direction of Rotation: Clockwise
• Shaft End: Cylindrical ∅ 25 mm with fitting key, ISO 3019-2
• Mounting Flange: 4-hole mounting flange 100B4HW according to ISO 3019-2
• Hydraulic Fluid Compatibility: HLP, HLPD, HVLP, HVLPD
• Seals Material: NBR
• Weight: 15.57 kg
