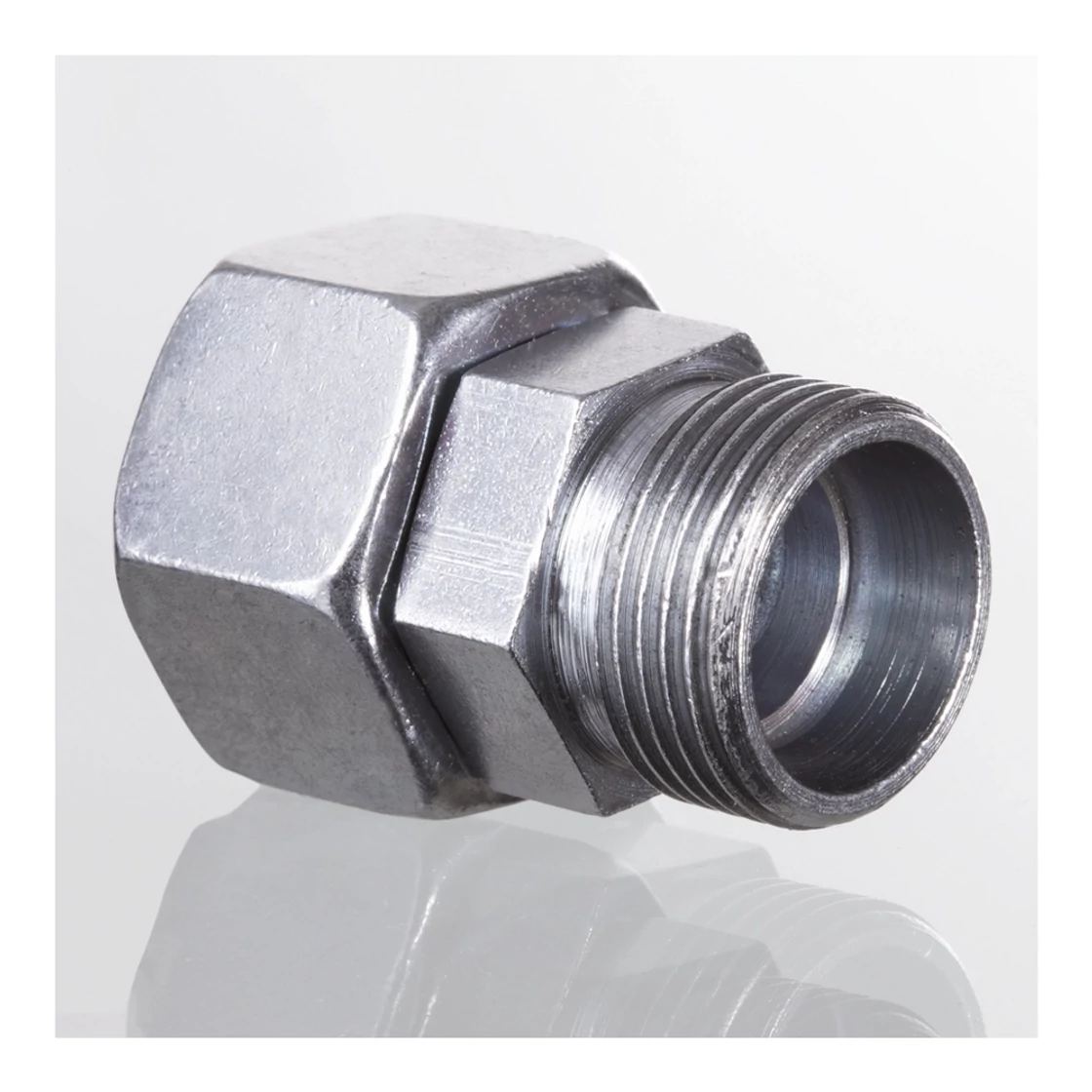

Tube Coupling - RED 15/08-L
5.0349 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - RED 15/08-L

5.0349 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric female swivel nut
Connection 2 Metric male thread
Connector sub-type Metrikus menet - könnyű kivitel (RED-L)
Connector type Szűkítő rátét - RED
Ø d1 (mm) 15
Ø d2 (mm) 8
Surface Galvanic coating
Design L
Standard ISO 8434-1
Structural form Reducing Adapter - RED
Extent Swivel nut, without cutting ring
Sealing 1 24° external cone
Sealing 2 24° internal cone
Operating pressure (bar) 315
Manufacturer article number: AOHNW13L06
Model: HQCRD15L08L0
Availability: 5 pcs in stock
Manufacturer: Nem besorolt
