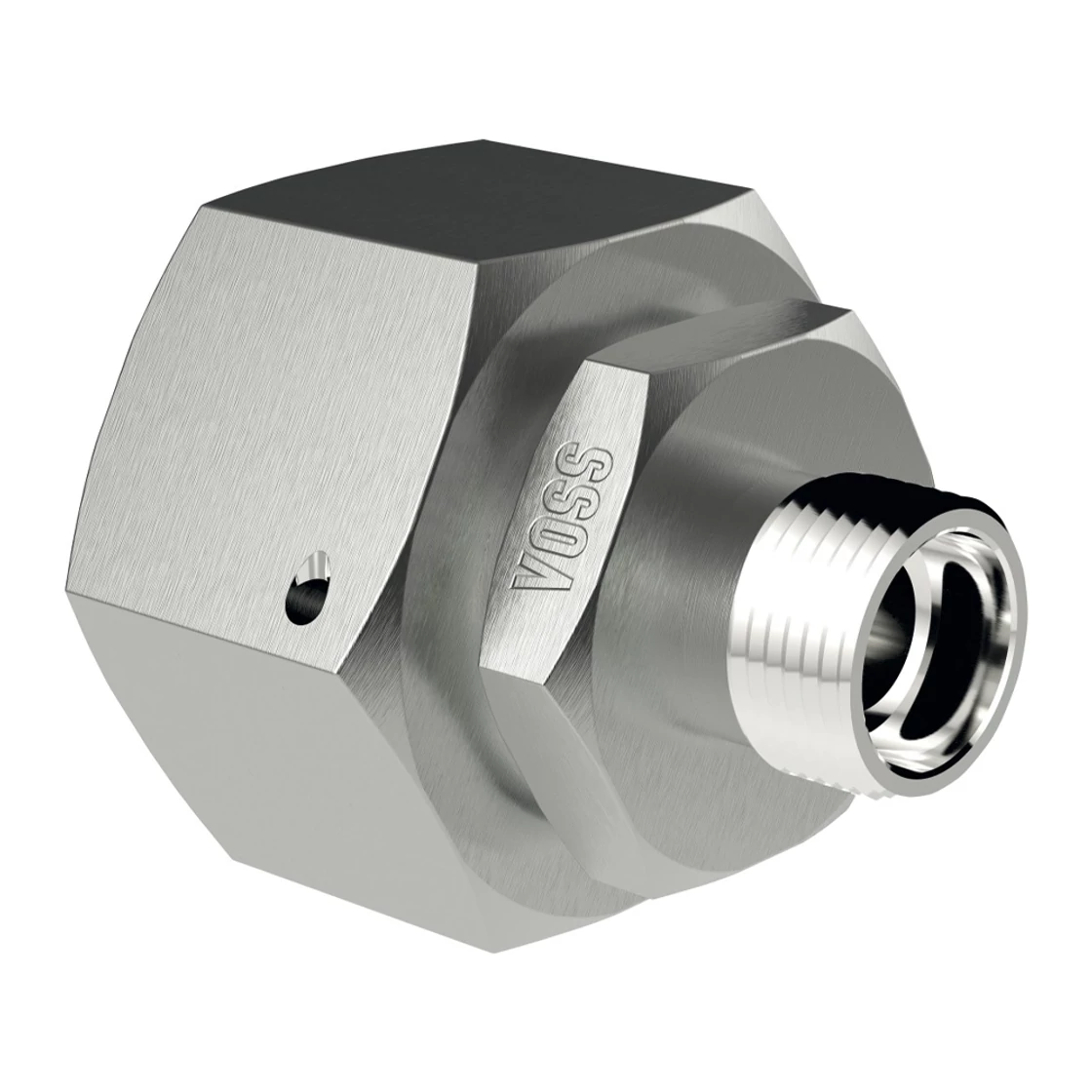

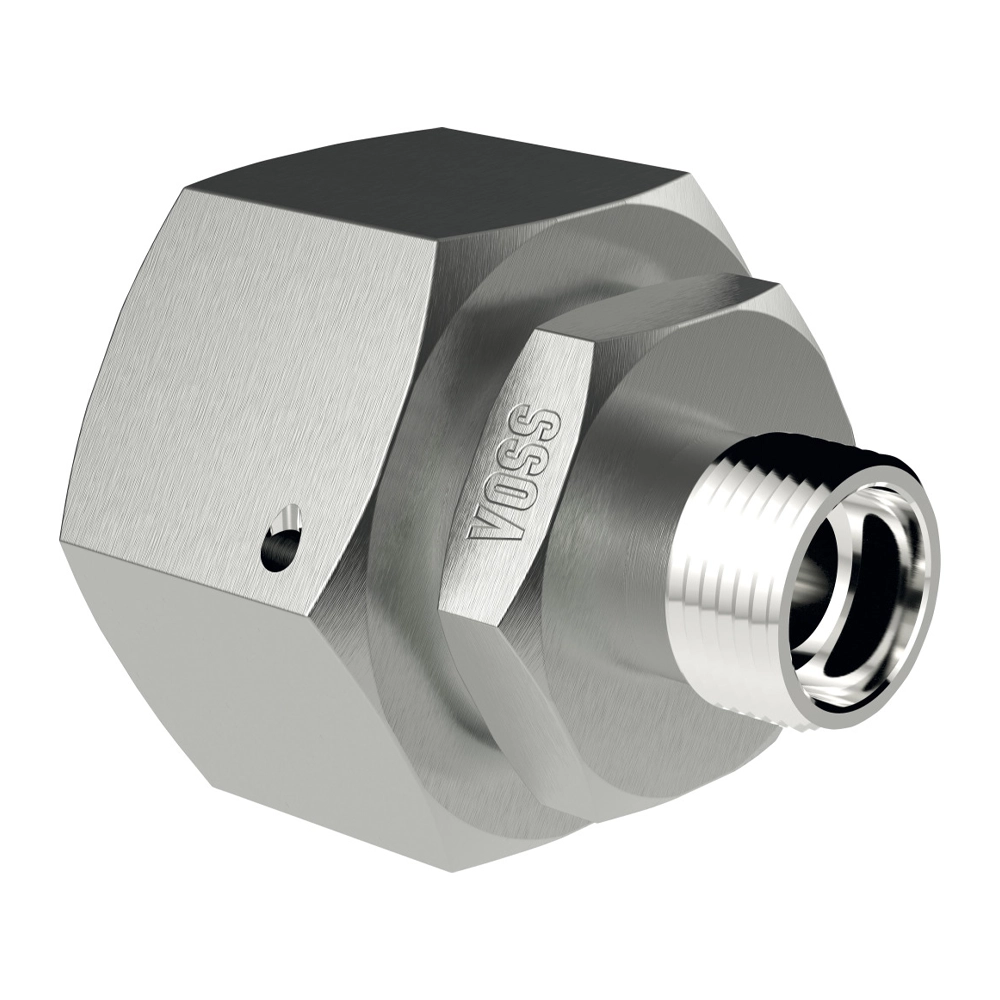

Tube Coupling - RED 25/10-S
15.1046 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - RED 25/10-S

15.1046 € + VAT
Qty:pcs
Add to Cart

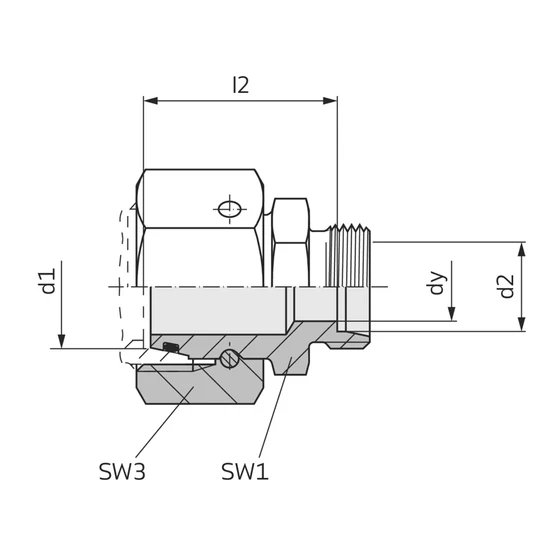

Material Steel
Connection 1 Metric female swivel nut
Connection 2 Metric male thread
Connection G1 (mm) M36x2
Connection G2 (mm) M18x1,5
Connector sub-type Metrikus menet - nehéz kivitel (RED-S)
Connector type Szűkítő rátét - RED
Ø d1 (mm) 25
Surface Galvanic coating
Design S - S
Standard DIN 2353/ISO 8434-1
Structural form Reducing Adapter - RED
Extent Swivel nut, without cutting ring
Sealing 1 24° external cone
Sealing 2 24° internal cone
Manufacturer article number: 1181682057
Model: HQCRD25S10S0
Availability: 3 pcs in stock
Manufacturer: Nem besorolt
