Tube Coupling RI (K-B) G3/8
6.5199 € + VAT
Qty:pcs
Add to Cart

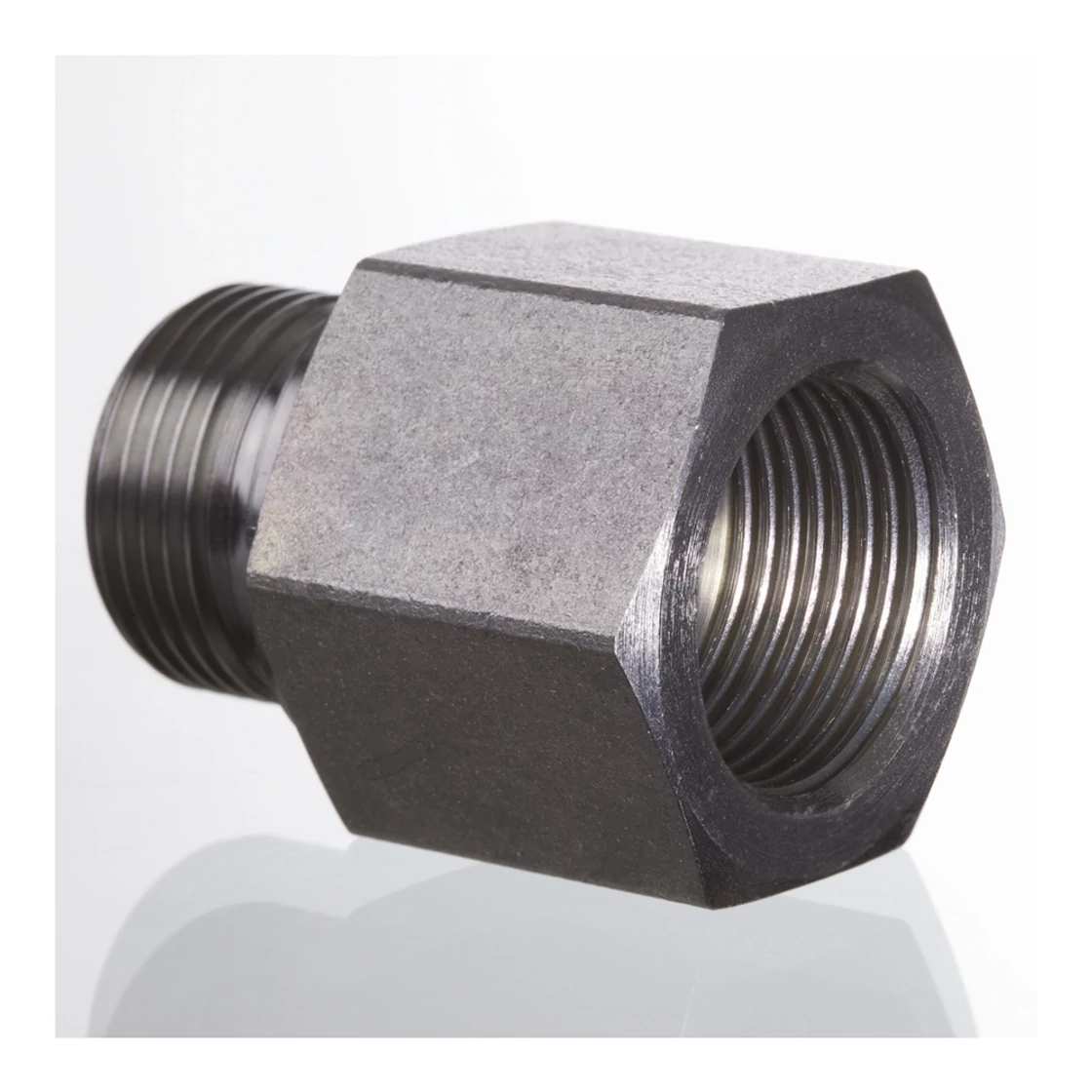

Tube Coupling RI (K-B) G3/8"-G1/4" - KEG

6.5199 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 BSPP male thread
Connection 2 BSPP female thread

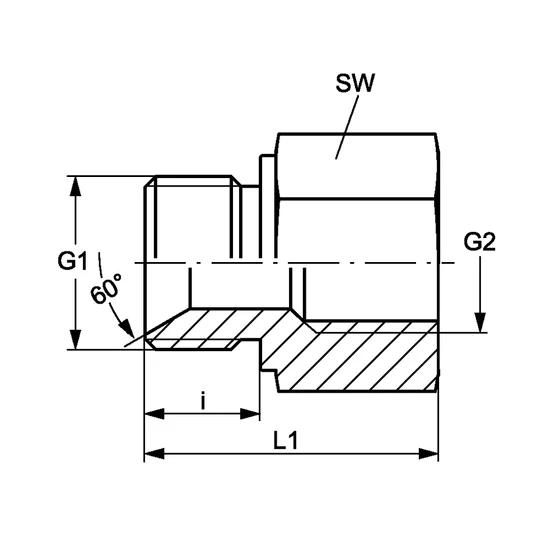

Connection G1 (mm) G 3/8" -19
Connection G2 (mm) G 1/4" -19
Connector sub-type BSP külső/belső menet (RI-CS) (K-B)
Connector type Váltó, szűkítő - RI
Surface Galvanic coating
i (mm) 12
L1 (mm) 30.5
SW (mm) 22
Standard ISO 8434-6
Structural form Reducer/Changing Adapter - RI
Sealing 1 60° internal cone, flat sealing
Sealing 2 Flat sealing
Main category Csatlakozók
SubCategory Csavarzatok
Manufacturer Nincs
Manufacturer article number: GHB06IR04L
Model: HQCRRR06041
Availability: 6 pcs in stock
Manufacturer: Nem besorolt
