Parker P31 Series Filter-Regulator, G1/4, 0-16 bar, 5µm + Auto Drain
The Parker P31 series Filter-Regulator is part of a comprehensive solution for compressed air preparation. This unit combines particulate filtration and pressure regulation in a single, compact body, minimizing space without sacrificing performance. It is particularly well-suited for low-flow and space-restricted applications.
The product range includes a full complement of particulate and coalescing filters, regulators, filter/regulators, and lubricators. It's available in three body sizes with either BSPP or NPT threading to accommodate various requirements. Individual units can be easily assembled into different combinations using the patented modular system.
Features and Benefits
- Integral ports (NPT, BSPP, BSPT): Provide versatile connection options.
- High-efficiency 5 micron element as standard: Guarantees excellent air quality.
- Excellent water removal efficiency: Effectively removes moisture from compressed air.
- Robust but lightweight aluminum construction: Ensures durability and ease of handling.
- Positive bayonet latch: Guarantees correct and safe fitting.
- Secondary pressure ranges: 0-2 bar (0-30 psig), 0-4 bar (0-60 psig), 0-8 bar (0-125 psig), 0-16 bar (0-232 psig) – offering broad applicability.
- Secondary aspiration plus balanced poppet: Delivers quick response and accurate pressure regulation.
Technical Specifications
- Product Type: Filter-regulator, Parker P31 series

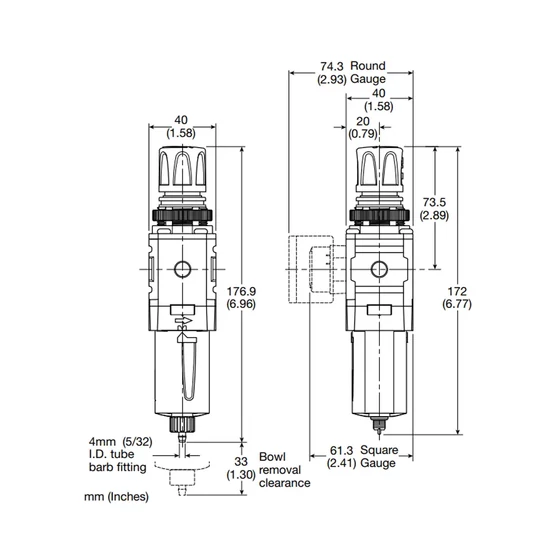

- Body Diameter: Ø40 mm (without pressure gauge)
- Length: 176.9 mm
- Connection Thread Type: Female Internal Thread BSPP, 1/4 inch
- Bowl Type: Metal
- Drain Option: Automatic (as per title), and Manual (as per datasheet, requires clarification)
- Filter Element Type: 5 micron
- Outlet Pressure Rating: 2 bar (as per specification, contradicting 0-16 bar range, requires clarification)
- Pressure Gauge Type: Square
- Pressure Regulator Type: Relieving
|
