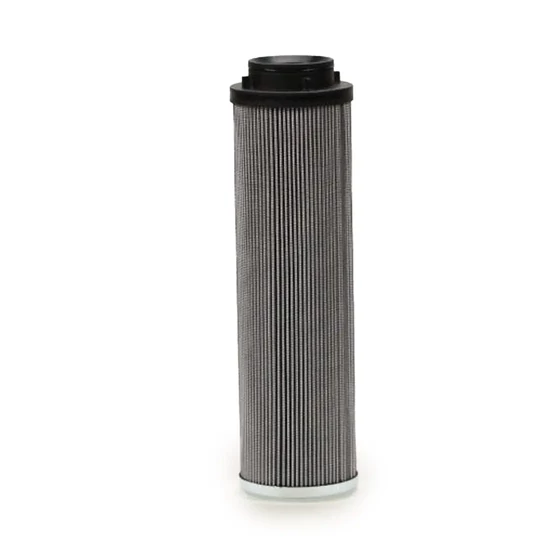

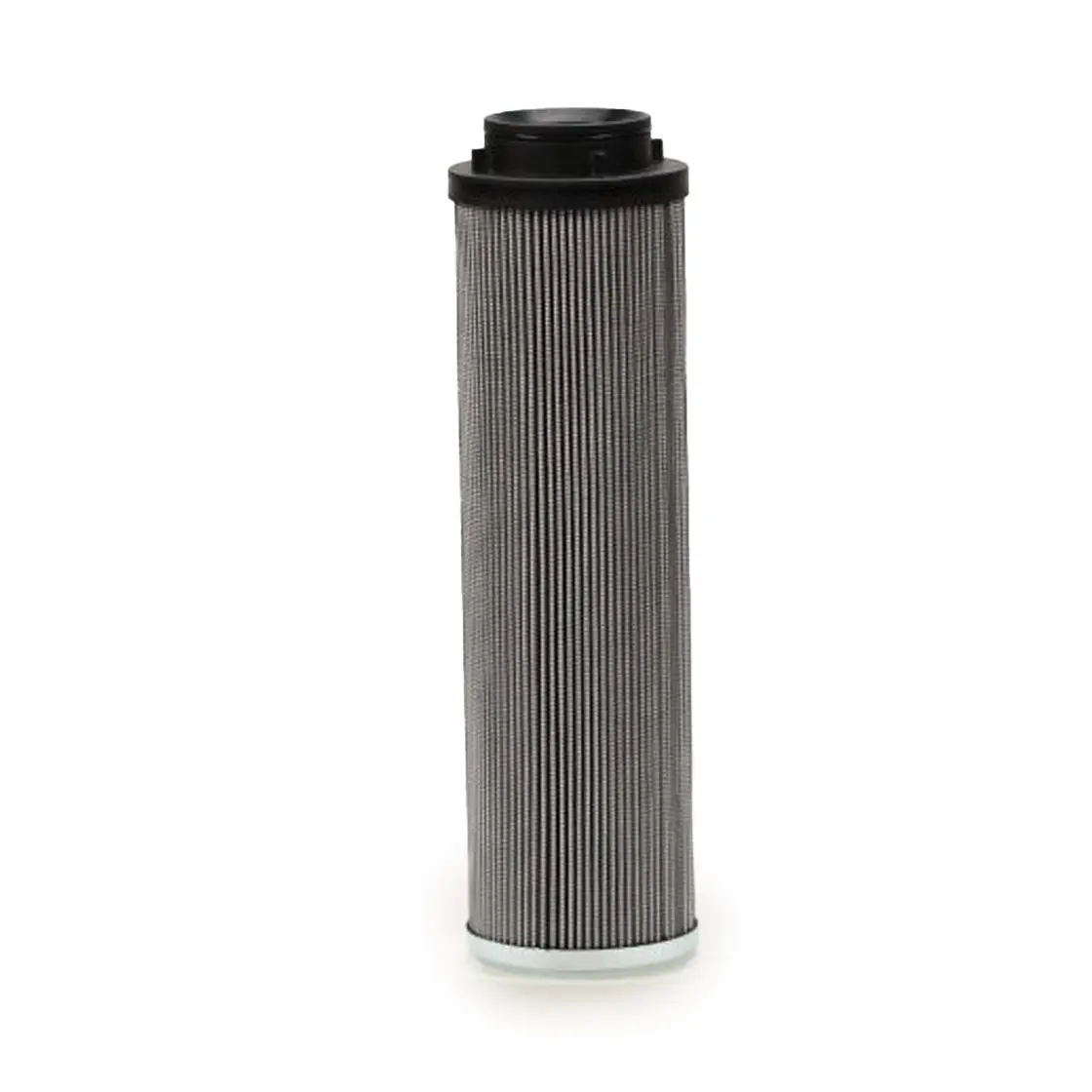

Return line filter element - G02022 - interchange
Request for quotation:

Return line filter element - G02022 - interchange

Request for quotation:
Type Filter element
Manufacturer article number: R541G25
Model: HFVFG02022HIP25
Availability: Available to order
Manufacturer:
Filtrec
Filtrec

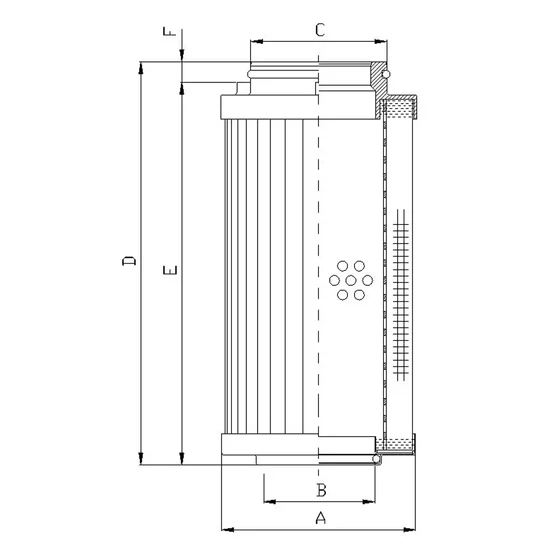

A: 90 mm
B: 52 mm
C: 63.2 mm
D: 325.5 mm
Seals - Material: NBR
Flow direction: Outside to inside
E: 315 mm
Application area: Hydraulics
F: 10.5 mm
Filtration fineness [µm(c)]: ß21=200 / ß27=1000
Filter medium: Glass fiber
Manufacturer: FILTREC
Weight [kg]: 1.02 kg
Allowed continuous operating temperature: Between -30°C and +100°C
Max. allowed pressure differential [bar]: 10 bar
