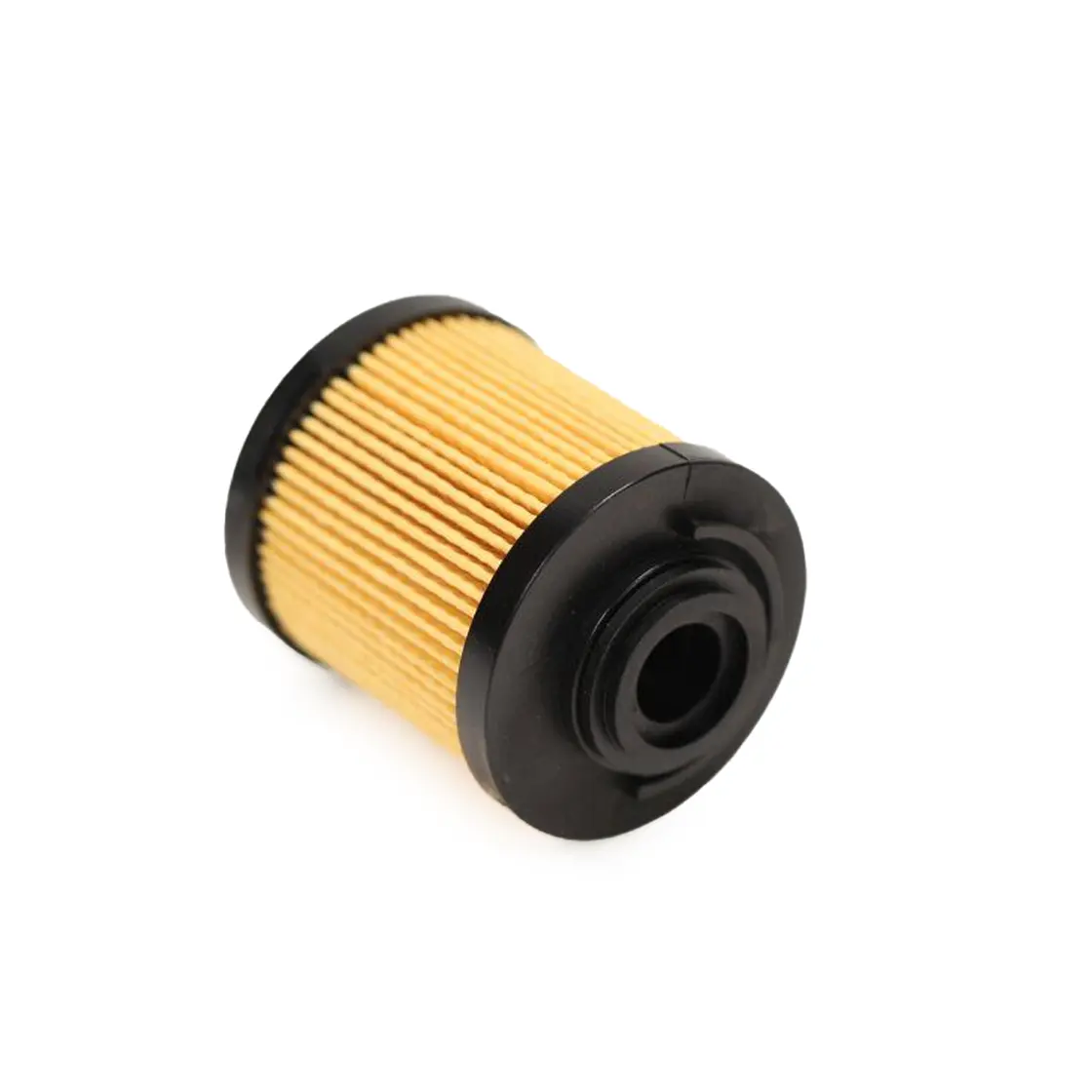

Return line filter element - MPF1001 - P10mic. - interchange

Filtration efficiency	10 microns
Type	Filter element
Manufacturer article number:	R120C10B
Model:	HFVFMF1001FIP10
Availability:	Available to order
Manufacturer:	Filtrec

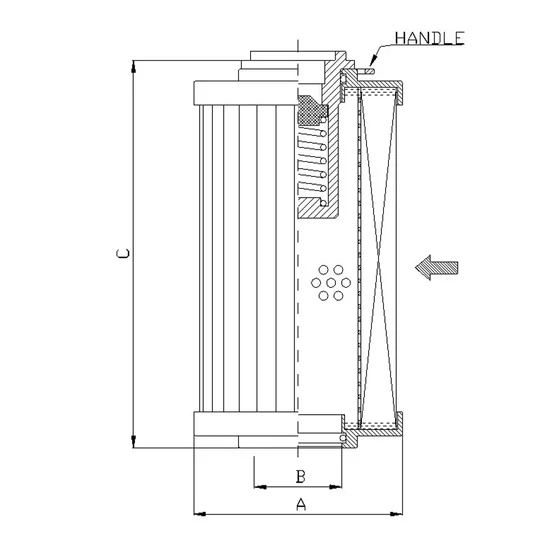

A: 70 B: 29.5 C: 85 Note: The spring has not been part of the delivery scope since the 2018.06 manufacturing date Bypass valve opening pressure [bar]: 1.7 Seals - Material: NBR Application area: Hydraulics Filtration fineness [µm(c)]: ß10=2 Filter medium: Cellulose Manufacturer: FILTREC Weight [kg]: 0.2 Allowed continuous operating temperature: Between -25°C and +120°C Max. allowed pressure differential [bar]: 3
