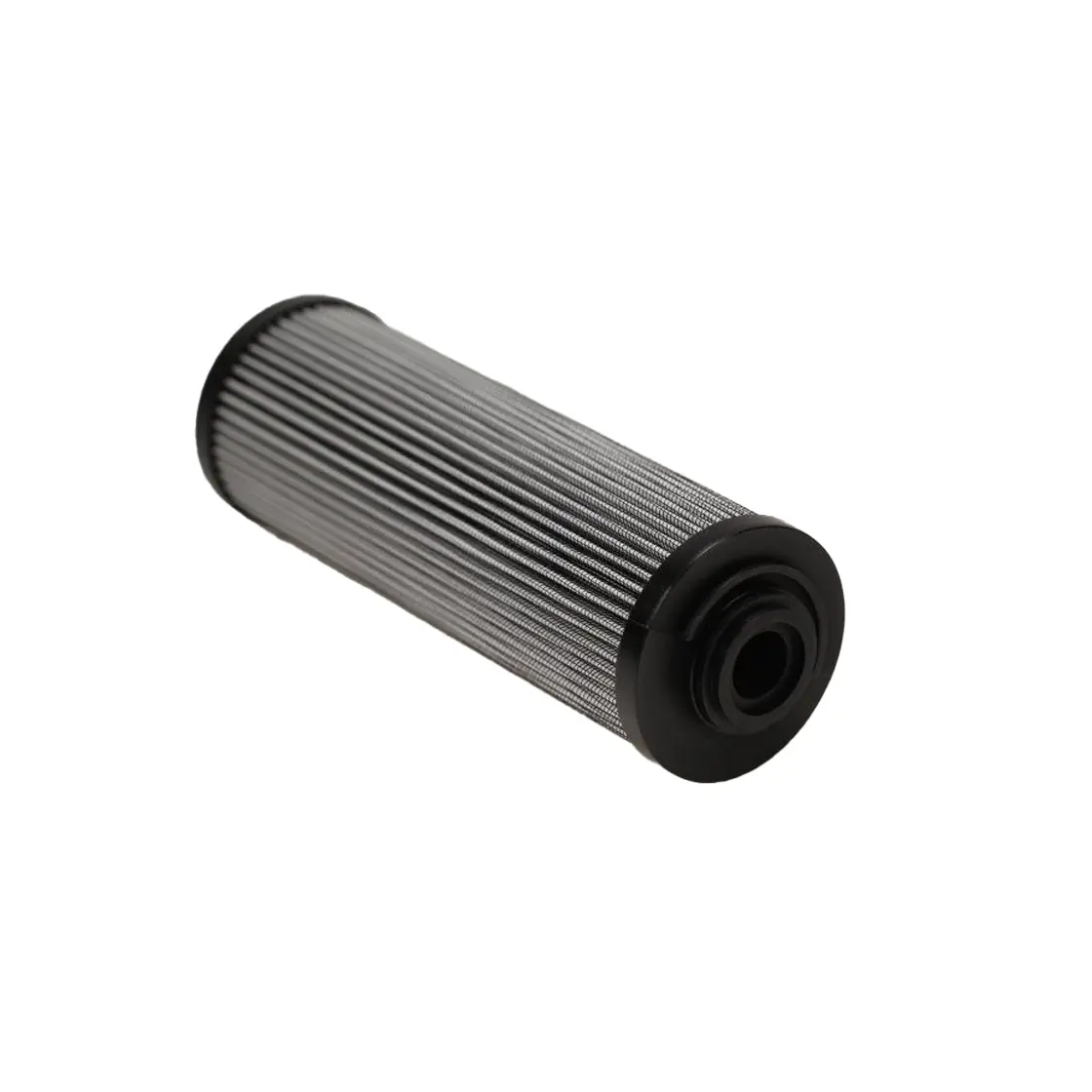

Return line filter element - MPF1003 - A10mic. - interchange

Return line filter element - MPF1003 - A10mic. - interchange

Filtration efficiency 10 microns
Type Filter element
Manufacturer article number: R130G10B
Model: HFVFMF1003FIA10
Availability: Available to order
Manufacturer:
Filtrec
Filtrec

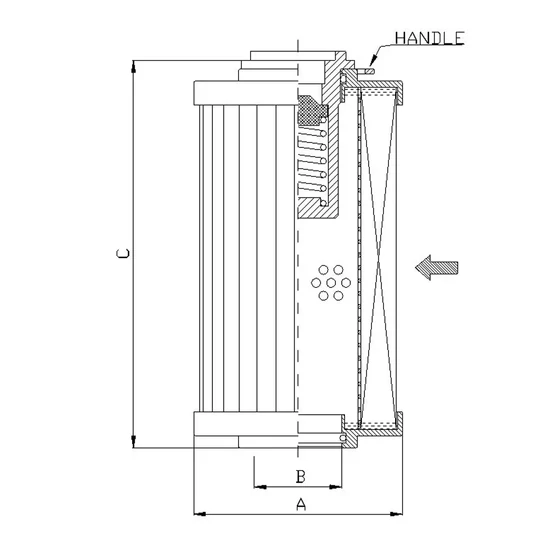

  • A: 70 mm
  • B: 40.5 mm
  • Note: The spring has not been included in the package since the June 2018 production date
  • Bypass valve opening pressure: 1.7 bar
  • C: 211.5 mm
  • Seals - Material: NBR
  • Application: Hydraulics
  • Filtration rating: ß12=1000 µm(c)
  • Filter media: Fiberglass
  • Manufacturer: FILTREC
  • Weight: 0.28 kg
  • Max. allowable operating temperature: -25°C to +120°C
  • Max. allowable pressure differential: 10 bar
