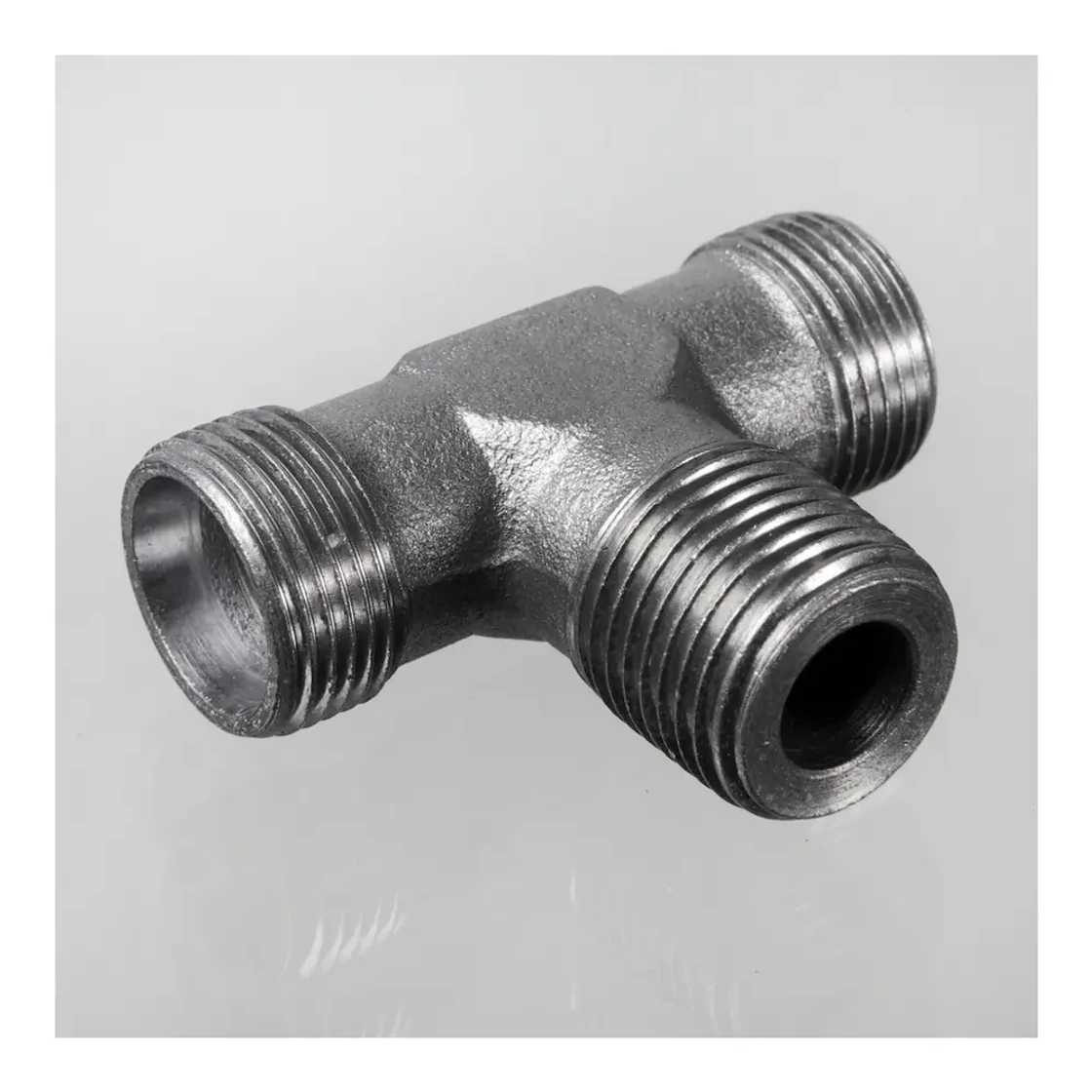

Tube Coupling - TE 04-LLR
5.7901 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - TE 04-LLR

5.7901 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 BSPT male thread
Connection 2 Metric male thread
Connection 3 Metric male thread
Connection - F 100
Connection G1 (mm) R 1/8" K
Connection G2 - G3 (inch) M8x1
Connector sub-type Metrikus/BSP menet - extra könnyű kivitel (TE-LL/R)
Connector type T-idom becsavarható - TE
Ø d2 (mm) 4
Surface Galvanic coating
i (mm) 8
Design LL
L4 (mm) 11
L5 (mm) 17
L7 (mm) 15
SW (mm) 9
Standard DIN 2353/ISO 8434-1, DIN 3852-2
Structural form Screw-in T-fitting - TE
Extent Swivel nut, without cutting ring
Sealing 1 Thread-sealing
Sealing 2 24° internal cone
Sealing 3 24° internal cone
Manufacturer article number: 129002000
Model: HQCTE04LLR00
Availability: 7 pcs in stock
Manufacturer: Nem besorolt
