Tube Coupling - ET 06-L
7.7500 € + VAT
Qty:pcs
Add to Cart

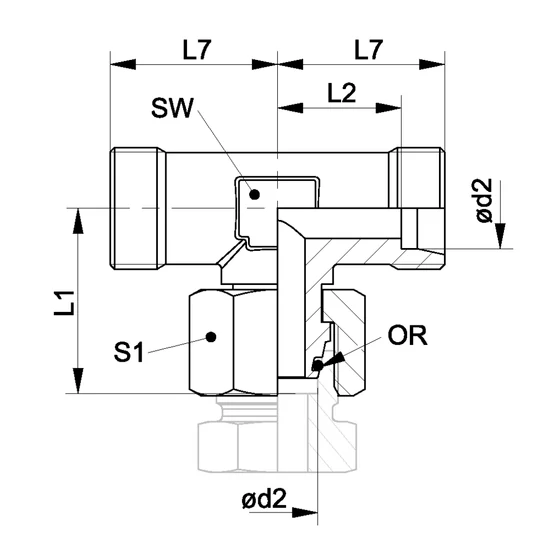

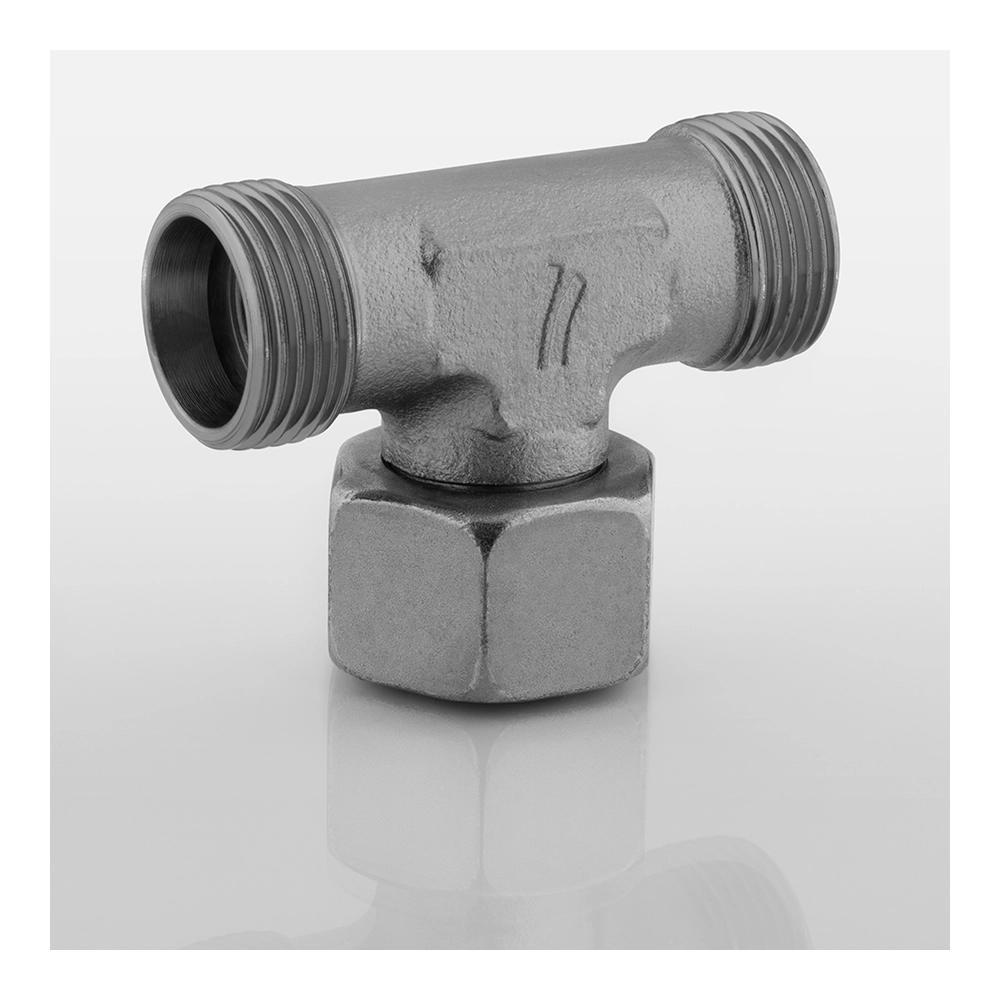

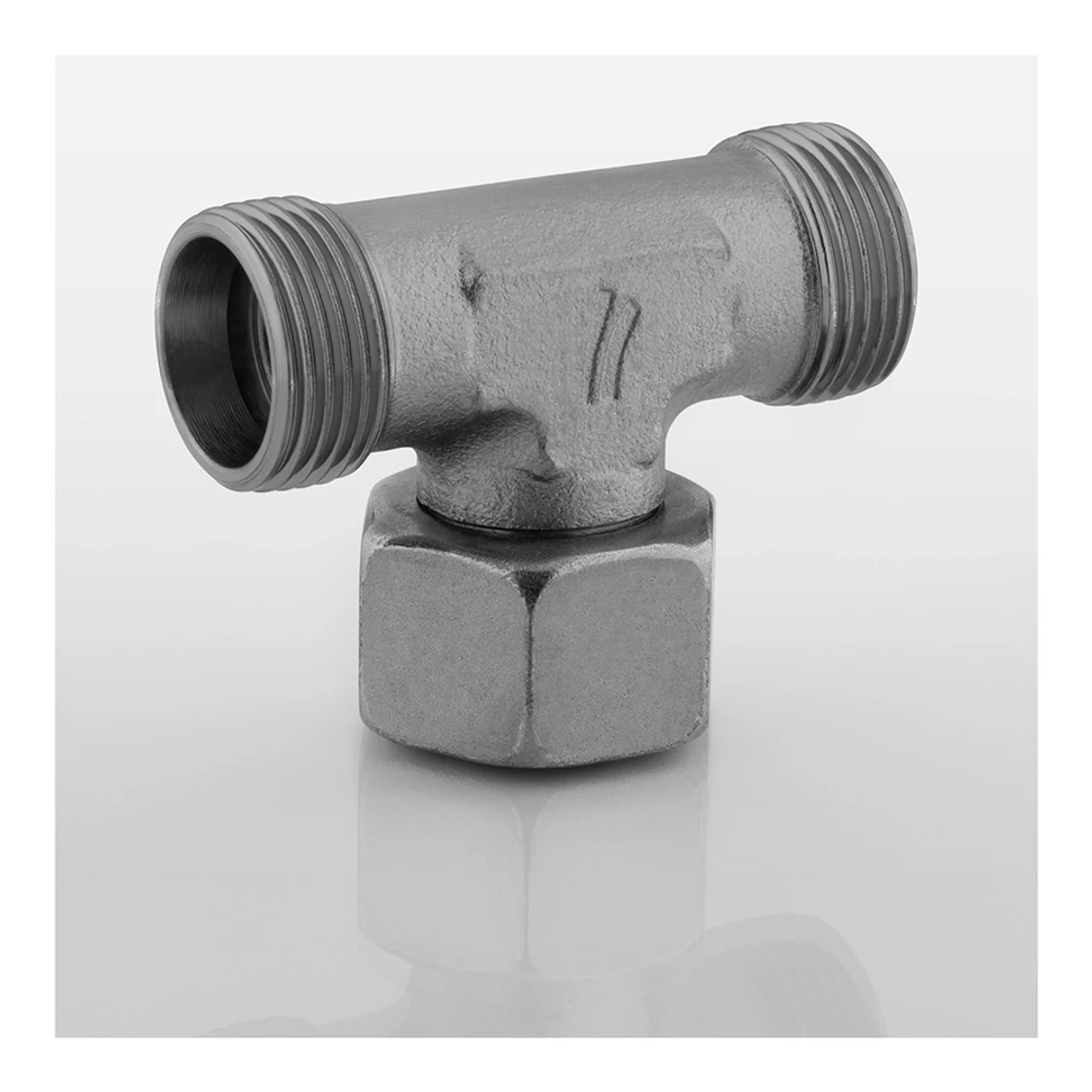

Tube Coupling - ET 06-L

7.7500 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric female swivel nut
Connection 2 Metric male thread
Connection 3 Metric male thread
Connection G1 - G3 (mm) M12x1,5
Connector sub-type Metrikus menet - könnyű kivitel (ET-L)
Connector type T-idom rátét - ET
Ø d2 (mm) 6
Surface Galvanic coating
Design L
L1 (mm) 26
L2 (mm) 12
L7 (mm) 19
S1 (mm) 14
SW (mm) 12
Standard ISO 8434-1
Structural form T-fitting Insert - ET
Extent Swivel nut, without cutting ring
Sealing 1 24° external cone
Sealing 2 24° internal cone
Sealing 3 24° internal cone
Operating pressure (bar) 315
Main category Fittings
SubCategory Swivel nut branch Tee - ET
Manufacturer Nincs
Manufacturer article number: VETONW04HL
Model: HQCET06L00
Availability: 11 pcs in stock
Manufacturer: Nem besorolt
