Tube Coupling - (T-UNF) - JIC 7/16
2.0139 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - (T-UNF) - JIC 7/16"-20

2.0139 € + VAT
Qty:pcs
Add to Cart

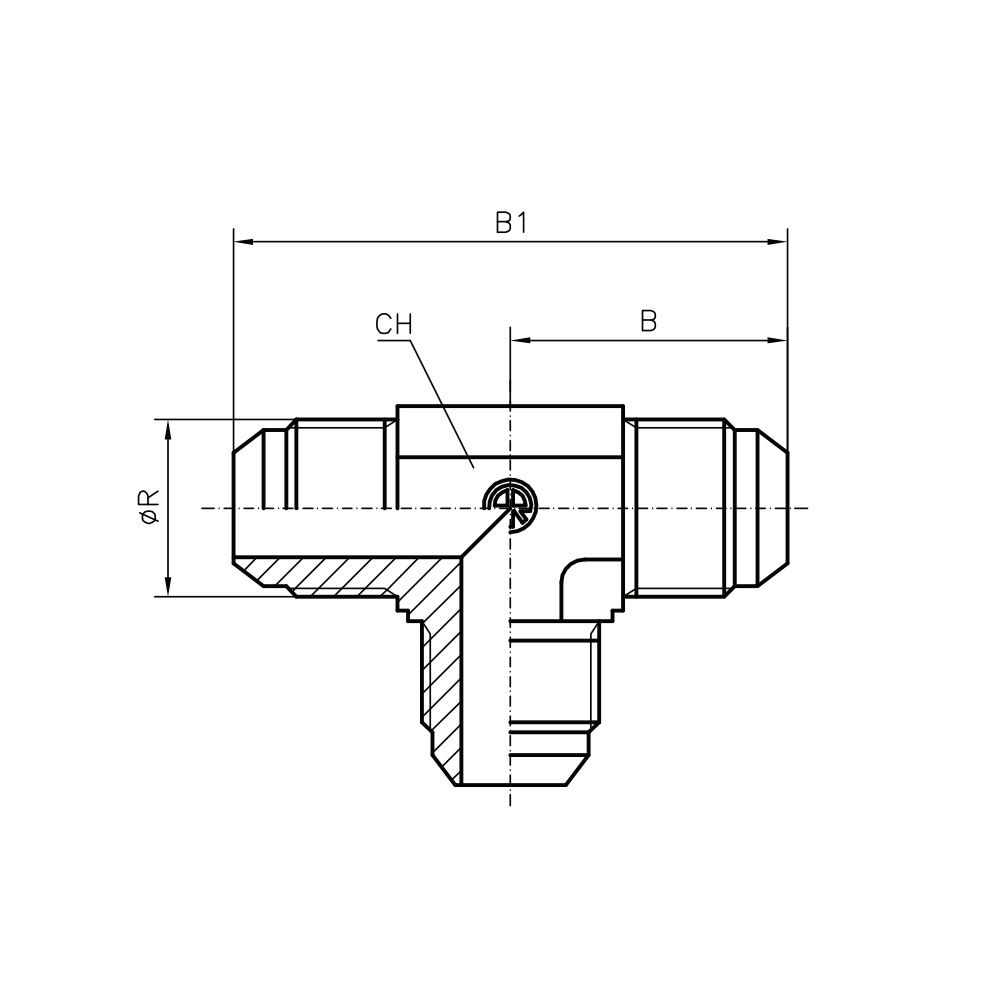

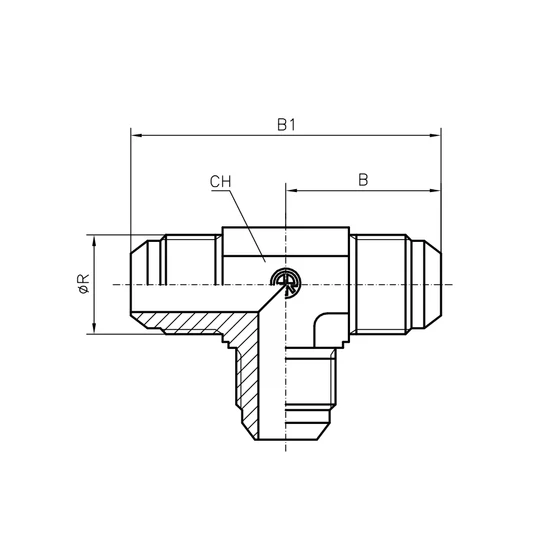

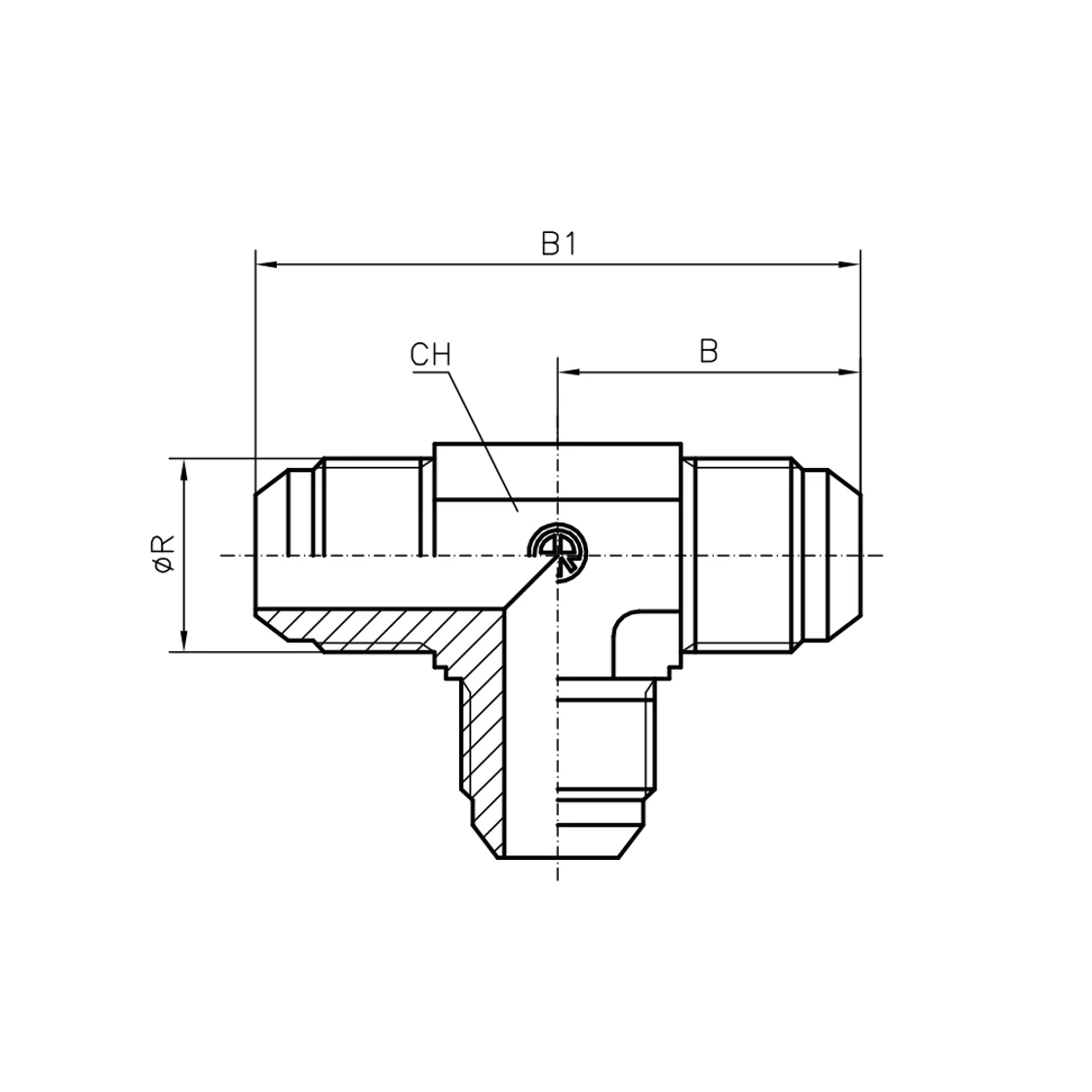

Material Steel
B (mm) 22.6
CH (mm) 111
Connection 1 UNF male thread
Connection 2 UNF male thread
Connection 3 UNF male thread
Connection ØR (col) 7/16
Connector sub-type UNF menet - JIC kivitel (T-JIC)
Connector type T-idom
Pipe size (mm) 6
Pipe size (inch) 1/4
Surface Galvanic coating
Structural form T-fitting
Sealing 1 37° internal cone
Sealing 2 37° internal cone
Sealing 3 37° internal cone
Operating pressure (bar) 350
Manufacturer article number: ST.51.00.04
Model: HQCJTT0400
Availability: 7 pcs in stock
Manufacturer: Nem besorolt
