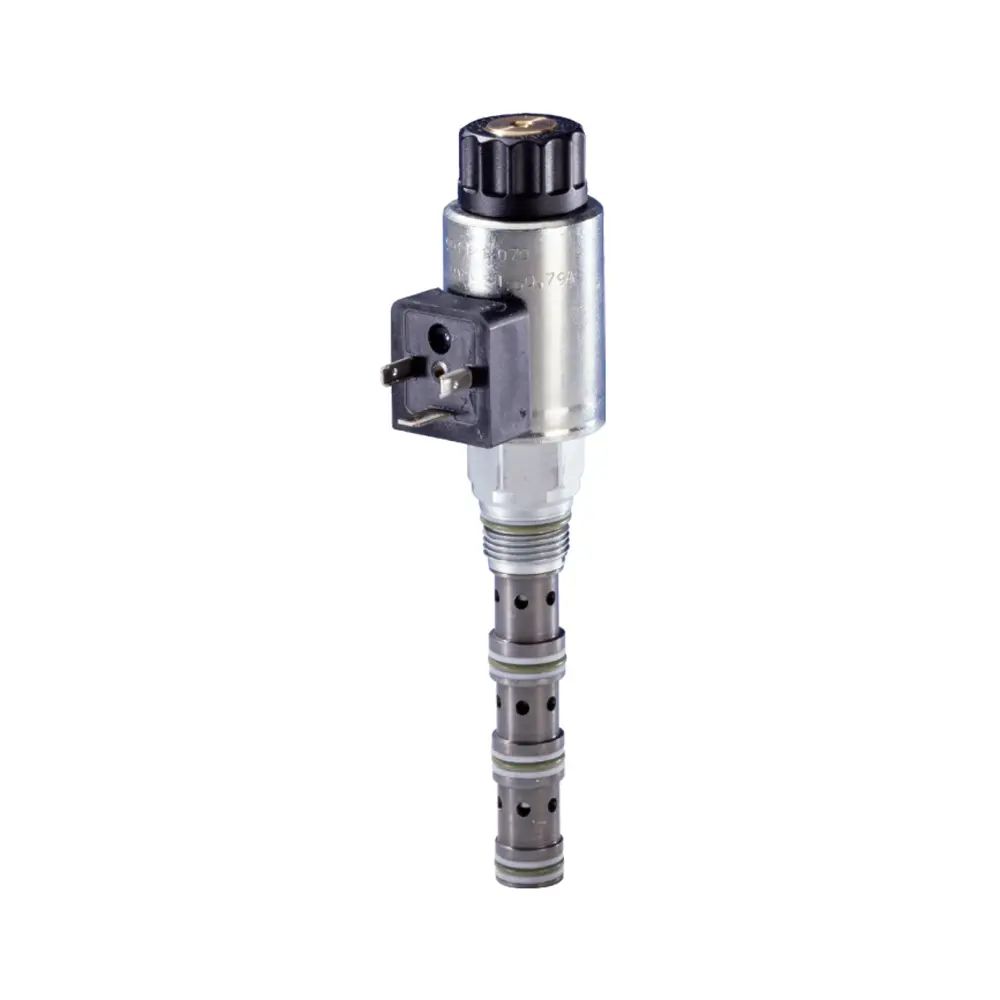

Spool valve - 4/2 - "F" - T-31A + housing + coil

KKDE.1 D/E/F 4/2-Way Directional Spool Valve: Compact and High-Pressure Control

This KKDE series screw-in cartridge valve is a 4/2-way directional spool valve designed for precise and reliable control in hydraulic systems. It offers a compact solution with direct solenoid actuation and is ideal for applications requiring high operating pressures and moderate flow rates.

Key Features

• High Pressure Capability: Rated for a maximum operating pressure of 350 bar (5000 psi).
• Direct Actuation: Ensures quick and responsive switching.
• Compact Design: Screw-in cartridge type, fitting into a Sun T-31A cavity.
• FKM Seals: Provides excellent compatibility with various hydraulic fluids.
• On/Off Control: Solenoid-actuated for straightforward directional switching.

Technical Specifications

• Product Family Classification: 4/2 directional spool valve, direct operated with solenoid actuation
• Product Family Type: KKDE
• Product Family: KKDE.1 D/E/F
• Product Type: KKDE
• Operating Pressure, Max.: 350 bar
• Max. Flow: 40 l/min (11 gpm)
• Nominal Flow: 40 l/min
• Ports Number: 4
• Positions: 2
• Spool Poppet: Spool type (Direct - Pilot, Direct acting)
• Type of Connection: Screw-in cartridge valve
• Cavity: Sun T-31A
• Type of Actuation: Solenoid-actuated on/off
• Coil: GZ37 (To be ordered separately, coil not integrated)
• Sealing Material: FKM
• Hydraulic Fluid Compatibility: HL, HLP, HETG, HEES, HEPG
• Weight: 0.35 kg
