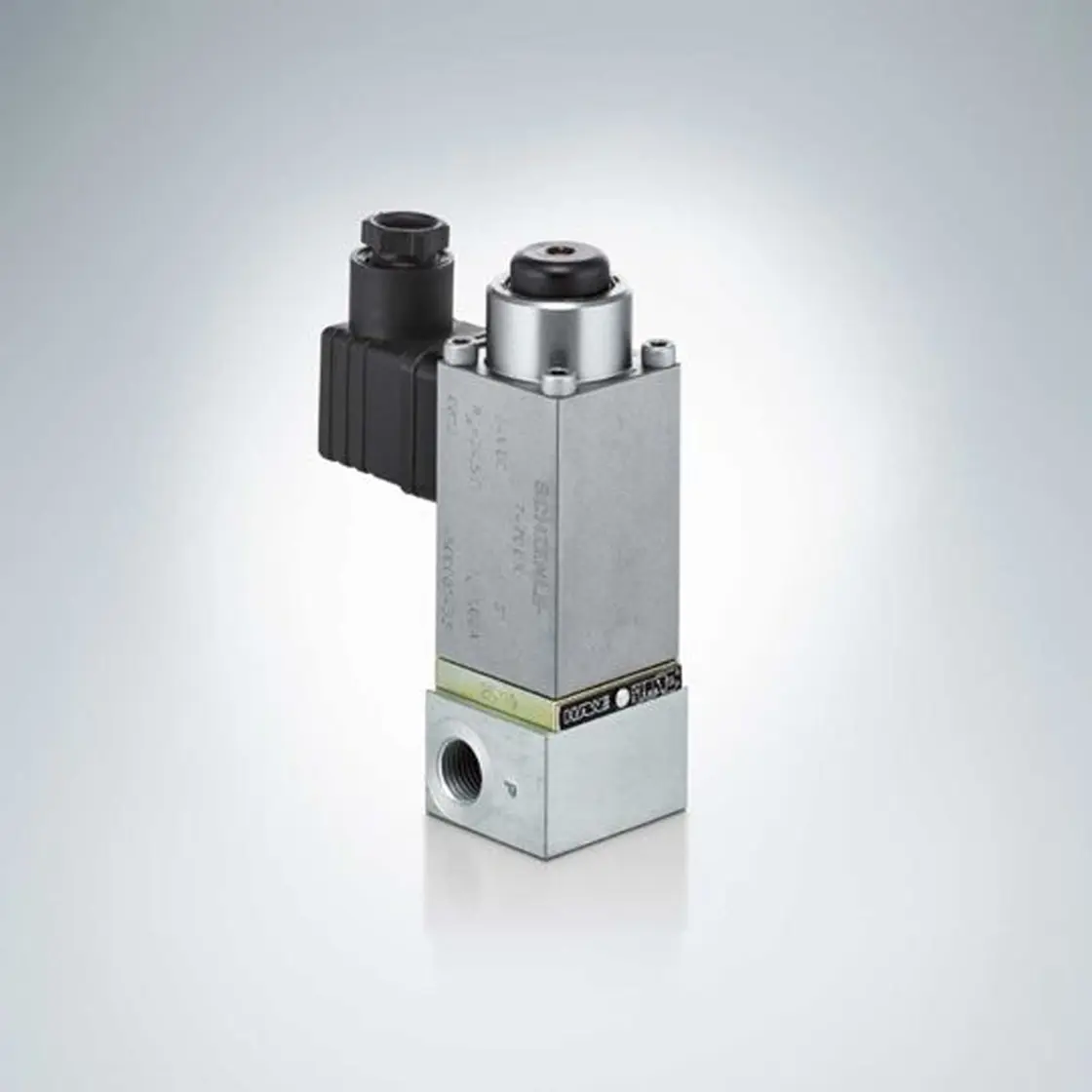

Seat valve - 3/2 - NO - 024VDC - WH 1 RG 24

HAWE WH Series 3/2-Way Directional Seated Valve: High Pressure, Compact Control

This HAWE WH Series directional seated valve is a robust and reliable solution for industrial hydraulic applications. Designed for manifold mounting, this 3/2-way valve is individually controlled by a 24V DC solenoid, making it ideal for precise on/off switching at high pressures.

Key Features

• High Pressure Capability: Handles maximum operating pressures of up to 450 bar.
• Precise Control: Provides reliable 3/2-way functionality for directional control.
• Solenoid Actuated: Features a 24V DC solenoid for efficient electrical control.
• Compact Design: Suitable for manifold mounting, saving space in hydraulic systems.

Technical Specifications

• Series: WH
• Size: 1
• Function: 3/2-way
• Flow Pattern: R
• Maximum Operating Pressure (Pmax): 450 bar
• Maximum Flow Rate (Qmax): 8 lpm
• Voltage: 24 VDC
