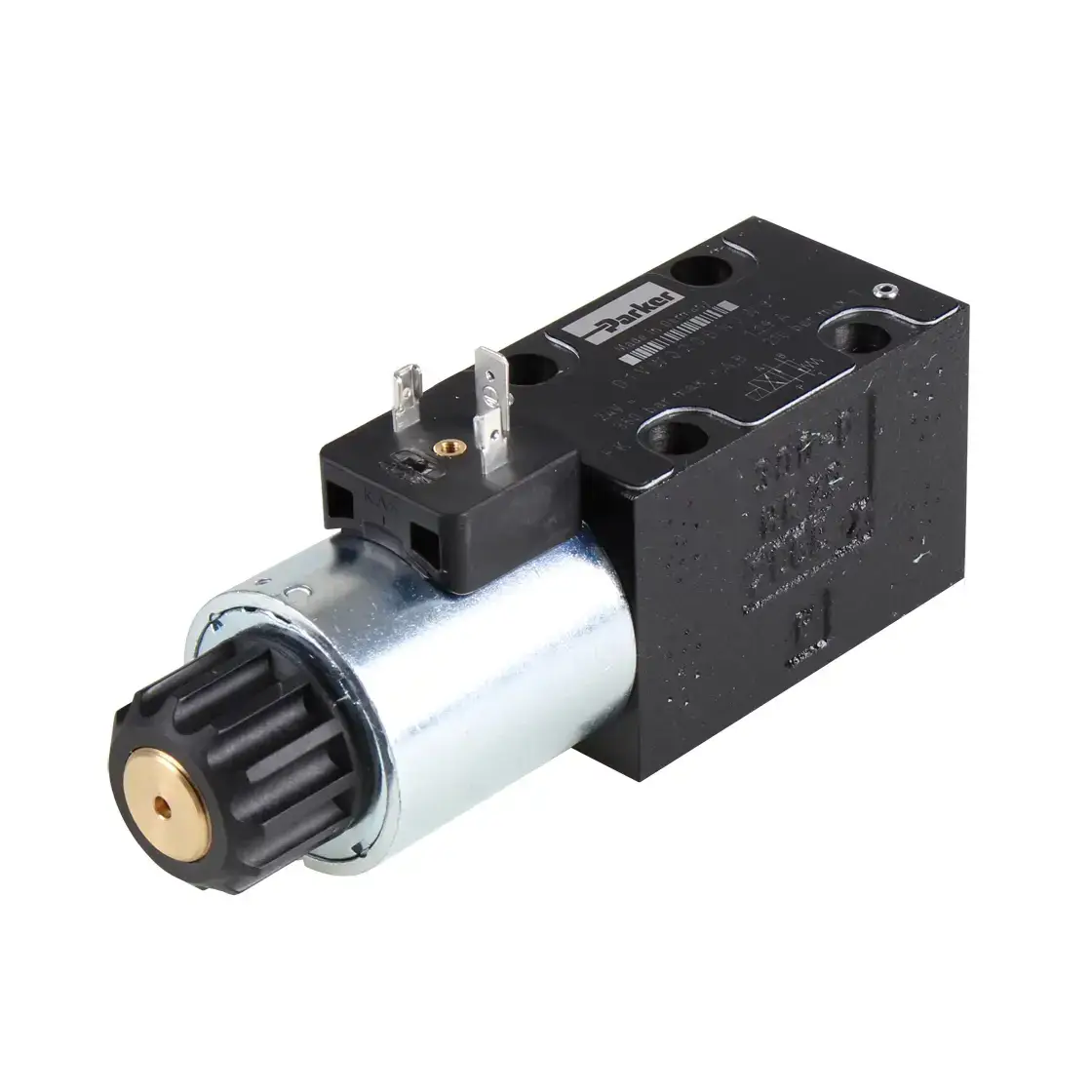

DCV 4/2 - NA06/D/024VDC - D1VW 020B NJW (4D01 3151 010C - B5G0Q 21E8)

D1VW Directional Control Valve: Compact, Efficient, and Versatile

The D1VW directional control valve in NG06 (CETOP 03 / NFPA D03) is a robust on/off valve designed for industrial applications. It offers high functional limits combined with a very low, energy-saving pressure drop, thanks to its optimized flow passages. This series represents over 40 years of experience in hydraulics, ensuring a proven and compact design.

Key Features and Benefits

• High Functional Limits: Supports flow rates up to 80 L/min and maximum operating pressures up to 350 bar.
• Energy-Saving Design: Optimized flow passages result in a very low pressure drop.
• Compact and Proven Design: Reflects extensive experience in hydraulics.
• Wide Range of Spools: Allows for designing an unlimited number of hydraulic circuits to fit all hydraulic systems.
• Short Lead Time: Reduces the need for extensive warehousing.
• Optional Soft Shift: Provides smooth operation, with an additional orifice in the solenoid anchor that dampens shifting time.
• Optional Manual Override: Adds flexibility in operation.
• Explosion-Proof Version (D1VW*EE):
  • Based on the standard D1VW series.
  • ATEX certified: Explosion-proof class Ex e mb II T4 Gb for use in Zone 1 and 2.
  • IECEx compliant solenoids: Certified in accordance with IECEx standard for equipment class 2 G.
  • All explosion-proof solenoids are DC design; valves for AC operate with an integrated rectifier.
