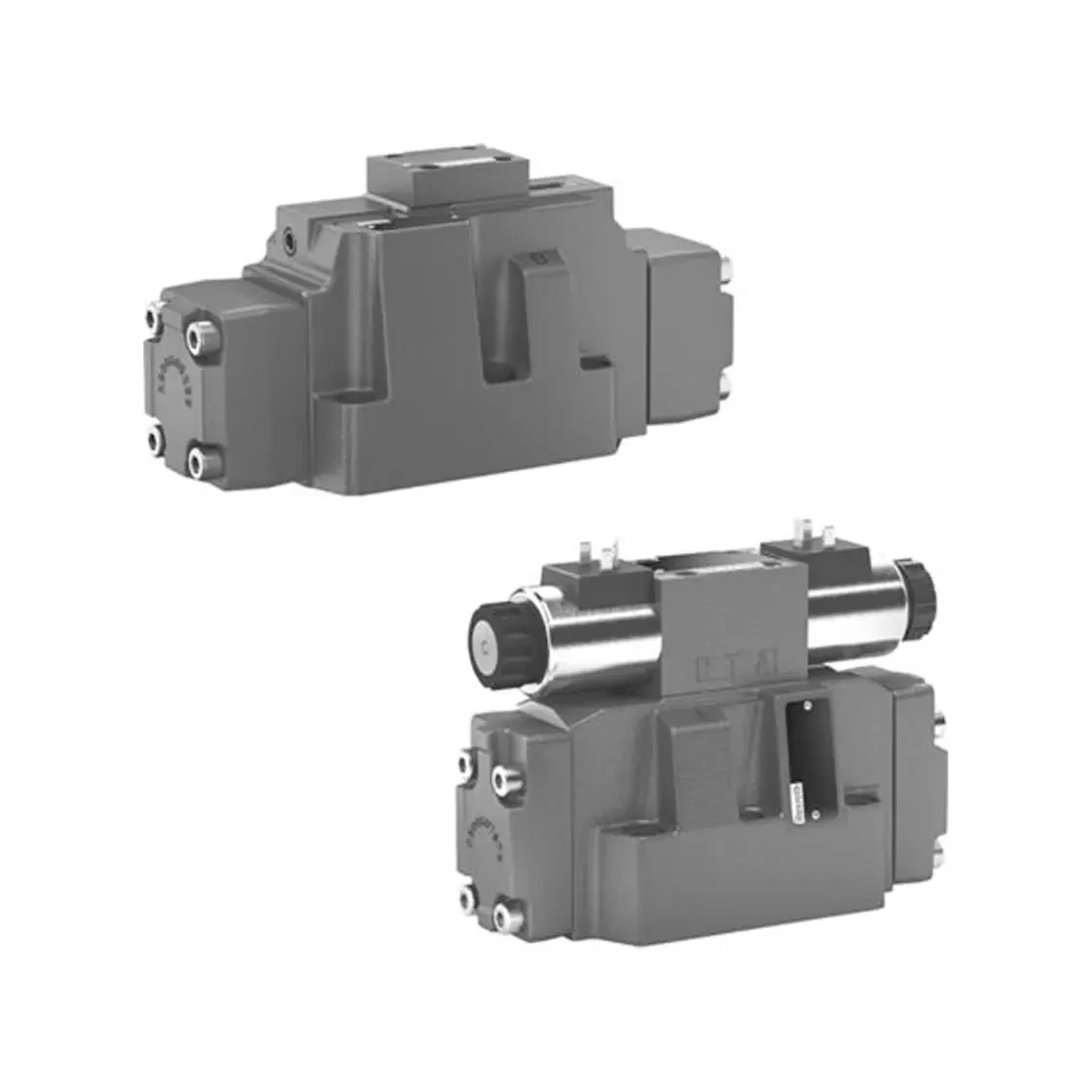

DCV 4/3 - NA16/J/024VDC - 4WEH16J7X/6EG24ETK4/10B10

H-4W.H. Directional Control Valve: High Performance & Reliable Piloted Operation

This industrial hydraulic valve in Size 16 is built for high-performance applications, offering reliable switching of oil flow direction according to its hydraulic symbol. As a pilot-operated spool valve, it provides robust control with internal pilot oil supply and internal pilot oil return.

Key Features

• Reliable switching of oil flow direction.
• High performance range for demanding industrial applications.
• Pilot-operated spool valve for robust control.
• Internal pilot oil supply and return for simplified system design.
• Durable NBR seals for broad hydraulic fluid compatibility.

Technical Specifications

• Product Family: H-4W.H.
• Size: 16
• Connection Diagram: ISO 4401-07-07-0-05
• Type of Connection: Subplate mounting
• Number of Ports: 4
• Number of Switching Positions: 3
• Spool Symbol: Symbol J
• Type of Actuation: Solenoid actuation
• Supply Voltage: 24 VDC
• Electrical Connector: 3-pole (2 + PE) connector
• Electrical Connection Description: Connector 3-pole (2 + PE) according to EN 175301-803
• Max. Operating Pressure: 280 bar
• Max. Flow: 300 L/min
• Hydraulic Fluid Compatibility: HL, HLP, HLPD, HVLP, HVLPD, HFC
• Seals Material: NBR
• Weight: 10.2 kg
