Valve - 5340981100

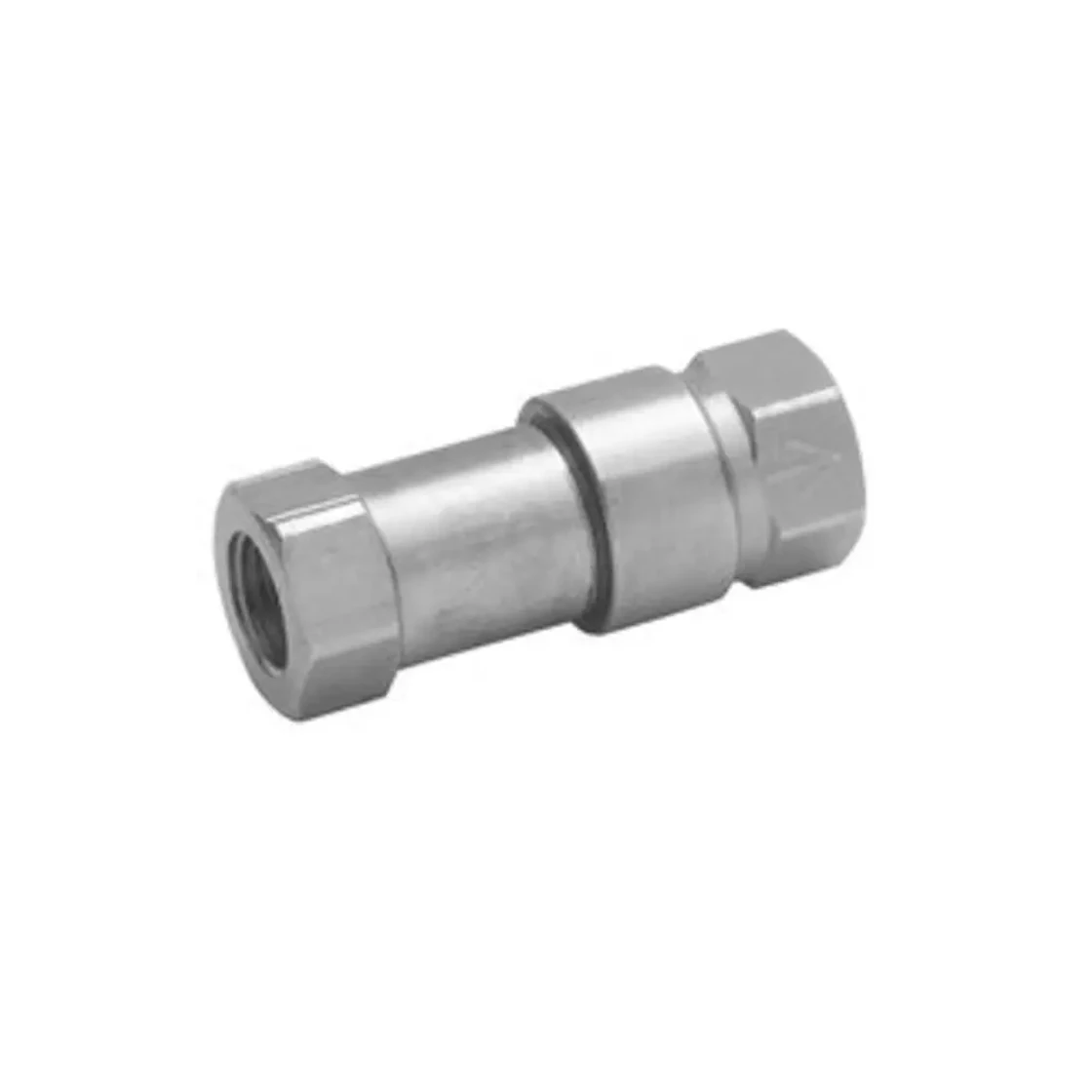

AVENTICS™ Non-return valve, Series NR01

This AVENTICS™ NR01 series non-return valve is a compact and reliable solution for compressed air systems. It features internal G 1/4 threaded connections on both sides and is designed for installation in piping. The valve is constructed with a brass housing and Acrylonitrile Butadiene Rubber (NBR) seals, ensuring durability and reliability within the specified operating conditions.

Specifications

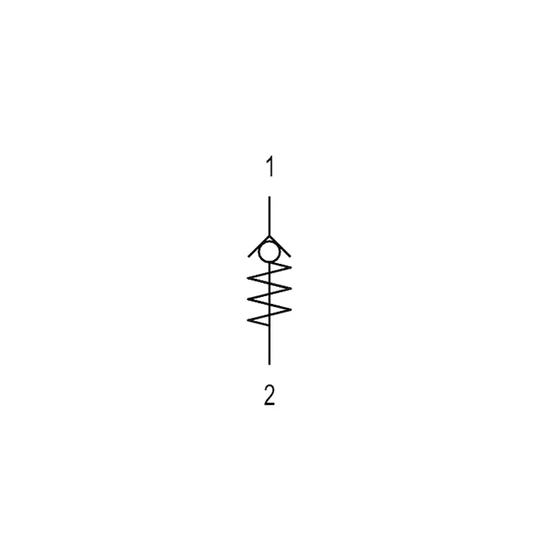

• Compressed air connection 1: G 1/4 (Internal thread)
• Compressed air connection 2: G 1/4 (Internal thread)
• Mounting: Installing in piping
• Type: Poppet valve
• Nominal flow Qn 1 to 2: 1050 l/min (Available Qn values: 40 l/min ... 7950 l/min)
• Working pressure min.: 0.5 bar
• Working pressure max: 15 bar
• Min. ambient temperature: -10 °C
• Max. ambient temperature: 60 °C
• Min. medium temperature: -10 °C
• Max. medium temperature: 60 °C
• Medium: Compressed air
• Weight: 0.168 kg
• Housing material: Brass
• Seal material: Acrylonitrile butadiene rubber
