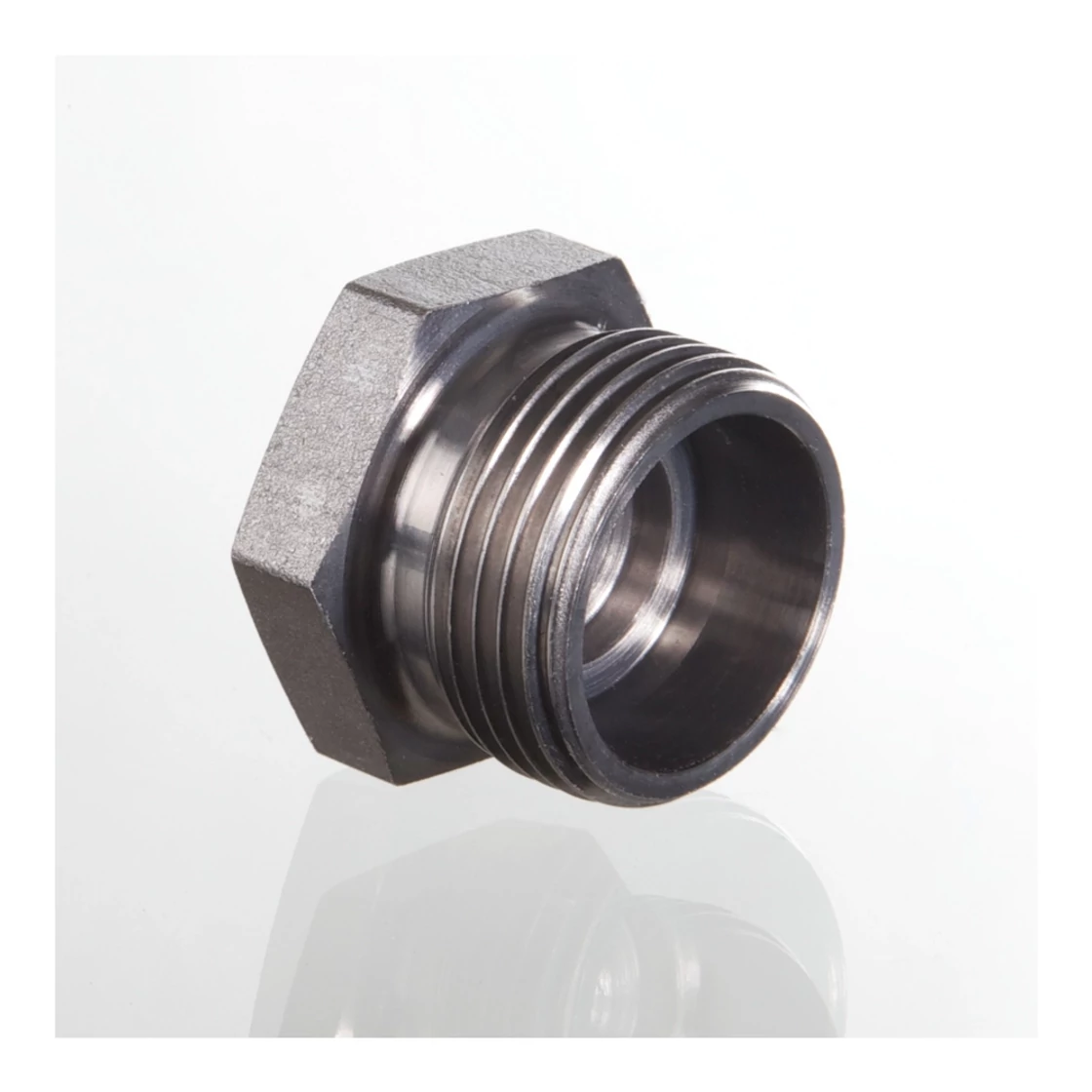

Tube Coupling - ROV 06-L
2.5606 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - ROV 06-L

2.5606 € + VAT
Qty:pcs
Add to Cart

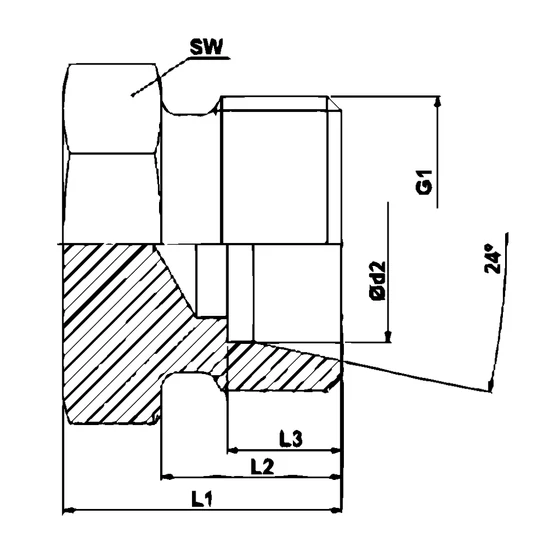

Material Steel
Connection 1 Metric male thread
Connection G1 (mm) M 12 x 1.5
Connector sub-type Metrikus menet - könnyű kivitel (ROV-L)
Connector type Zárócsavar hollanderbe - ROV
Ø d2 (mm) 6
Surface Galvanic coating
Design L
L1 (mm) 14
L2 (mm) 10
L3 (mm) 7
SW (mm) 12
Standard DIN 2353/ISO 8434-1
Structural form Plug for Swivel Nut - ROV
Extent Swivel nut, without cutting ring
Sealing 1 24° internal cone
Operating pressure (bar) 315
Main category Csatlakozók
SubCategory Csavarzatok
Manufacturer Nincs
Manufacturer article number: VHLNW04
Model: HQCBROV06L0
Availability: 21 pcs in stock
Manufacturer: Nem besorolt
