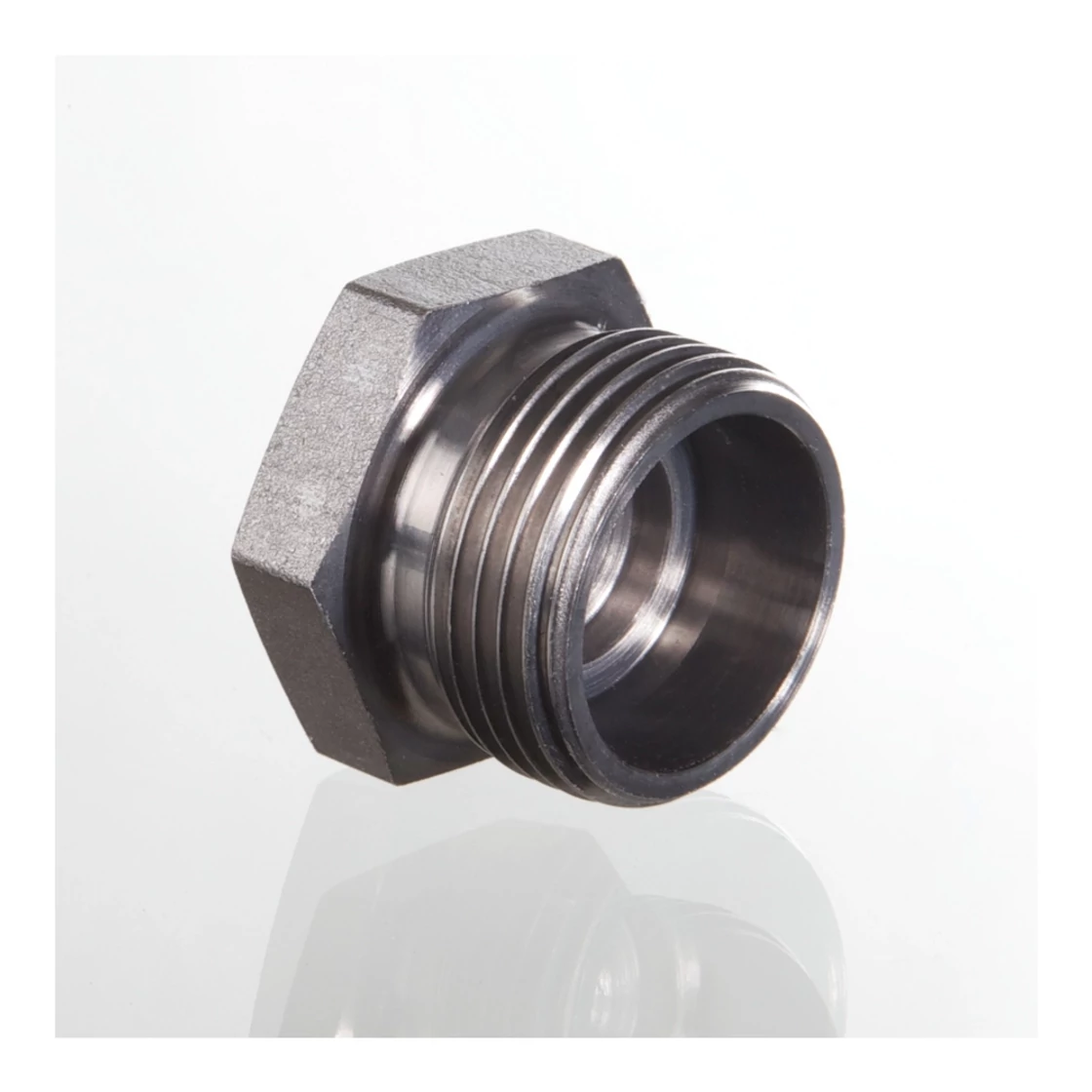

Tube Coupling - ROV 12-S
5.2500 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - ROV 12-S

5.2500 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric male thread
Connection G1 (mm) M 20 x 1.5
Connector sub-type Metrikus menet - nehéz kivitel (ROV-S)
Connector type Zárócsavar hollanderbe - ROV

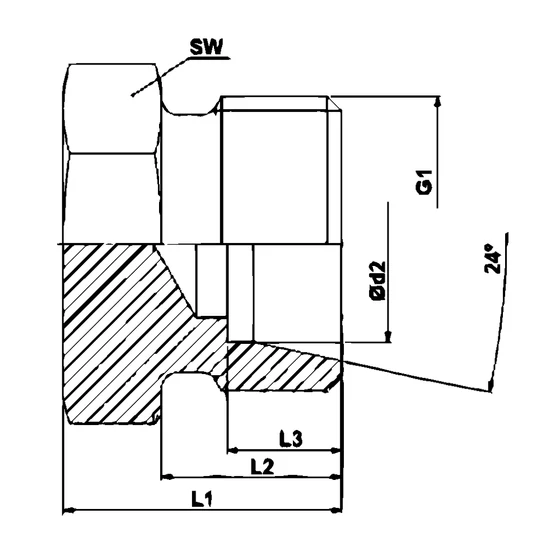

Ø d2 (mm) 12
Surface Galvanic coating
Design S
L1 (mm) 22
L2 (mm) 12
L3 (mm) 7.5
SW (mm) 22
Standard DIN 2353/ISO 8434-1
Structural form Plug for Swivel Nut - ROV
Extent Swivel nut, without cutting ring
Sealing 1 24° internal cone
Operating pressure (bar) 630
Main category Fittings
SubCategory Blanking plug for cone - ROV
Manufacturer Nincs
Manufacturer article number: VHSNW08
Model: HQCBROV12S0
Availability: 10 pcs in stock
Manufacturer: Nem besorolt
