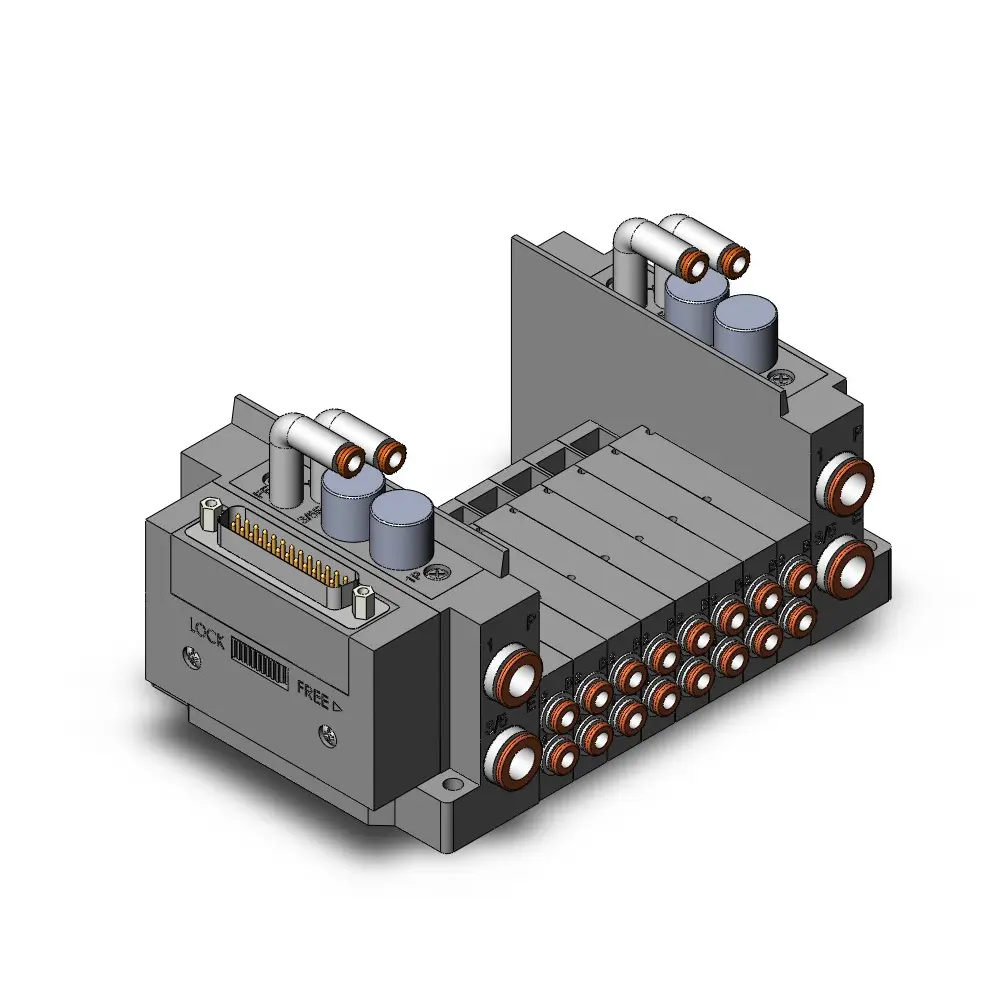

Manifold - SS5Y3-10F1-08BR-C4

SMC SY Series High-Performance Valves: Compact Design, Enhanced Reliability

The SMC SY series valves have undergone product improvements, leading to significantly enhanced performance and reliability. The SY3000 and SY5000 models retain the same valve width as their predecessors, while flow has increased by up to 80%, allowing for a reduction in valve size for the same performance.

A built-in strainer in the pilot valve prevents issues caused by foreign matter, increasing system stability. The main valve and seals are made from H-NBR material, which provides improved ozone resistance and extends service life.

Flexible installation options are available with side, top, and bottom port/pipe directions. The SY series is offered in body ported or base mounted styles and can be used individually or manifold mounted.

Key Features and Benefits

• Increased Flow: Up to 80% higher flow compared to predecessors of the same size, allowing for smaller valve selection.
• Superior Reliability: A built-in strainer in the pilot valve prevents troubles caused by foreign matter.
• Improved Ozone Resistance: Main valve and seals use H-NBR material for extended lifespan.
• Flexible Installation: Side, top, and bottom port/pipe directions available.
• Versatile Mounting: Available in body ported or base mounted styles, and can be used individually or manifold mounted.
• Plug-in Connector Connecting Base: Simplifies connectivity.
• External Pilot Option: Available with external pilot air.
• Connector Types: D-sub, Flat ribbon cable (26, 20, or 10 pins), PC wiring.
• One-Touch Fittings: For quick and easy tubing connection.
