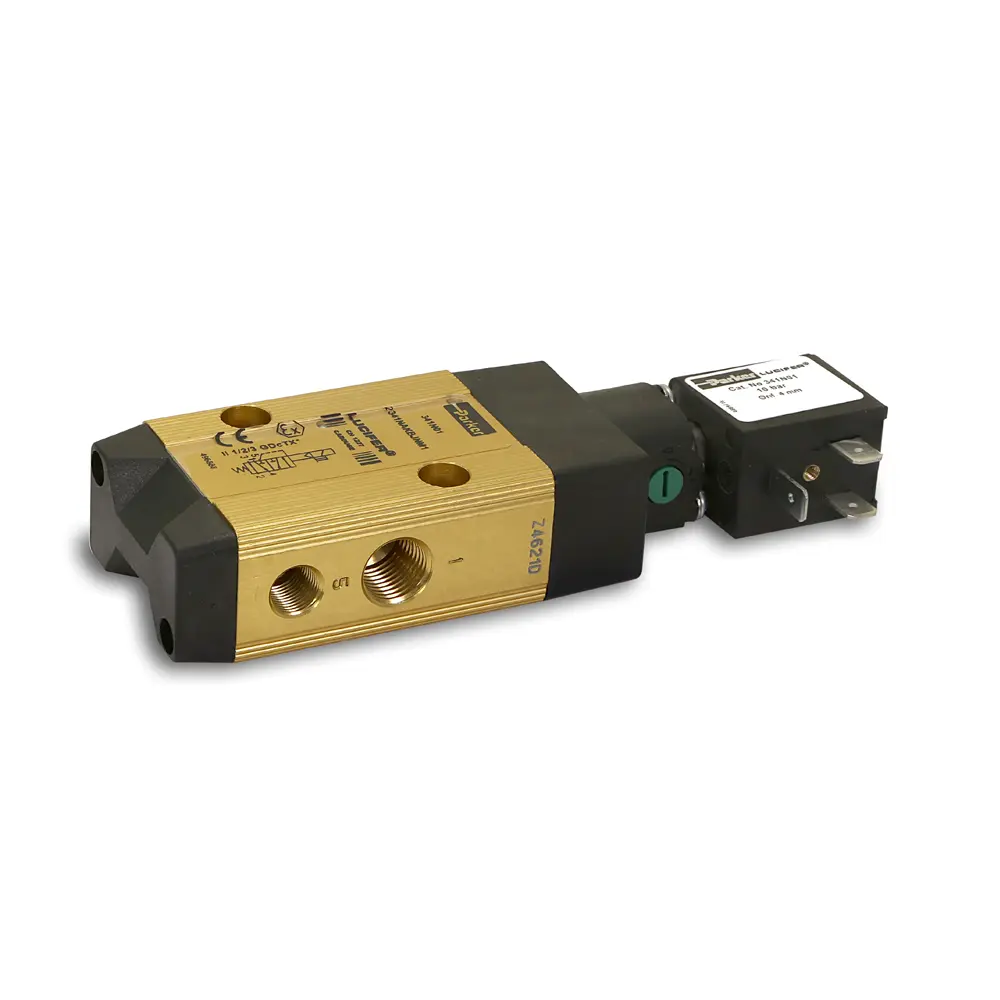

Valve - 341N01-8993-488980C2

N Series Heavy Duty Spool Valve for Critical Process Control Applications

The N Series of Heavy Duty NAMUR Spool valve is a full range of NAMUR indirect operated valves, solenoid or air operated, delivering a broad range of functions including 3/2, 5/2, and 5/3 ways. This product line is designed for continuous reliability, offering unmatched high flow performance up to 1400 l/min, making it the best choice for critical process control applications.

The spool design and materials make this product extremely reliable for both low and high-frequency applications. The modularity of this product solution, in combination with our ATEX coil program, can optimize total ownership costs by delivering high reliability, extreme flexibility, and best competitiveness.

Technical Specifications

• Valve Type: 3/2 - 5/2 Way
• Insulation Class: F 155 °C
• Specifications Met: With captured exhaust - Manual override - In-line operator
• Power Supply Voltage: 24V DC
• Coil Temperature Range: -40°C to +50°C
• Orifice Size: 4 mm
• Flow Coefficient 1: 600 l/min
• Maximum Fluid Temperature: +80°C
• Function: Spring Return
• ATEX Specifications Met: Yes
• Maximum Operating Pressure: 10 bar
• Minimum Operating Pressure: 2 bar
• Port Size: G 1/8 - G 1/4
• Actuation Type: Pilot Operated
• Port Type: Namur
• Body Material: Anodized Aluminum
• Media: Air
• Minimum Fluid Temperature: -25 °C
• Seal Material: NBR
• Coil Power Consumption: 2.5 W
• Electrical Connection: 2 P + E Plug According to EN 175301-803 Type B
• Coil Specifications Met: CE - EAC

Markets

• Pharmaceutical
• Food & Beverage production, storage
• Water treatment
• Refineries
• Powders dosing

Applications

• Valve Actuation

Features/Benefits

• Long life cycle expectancy
• High Flow
• SIL Approved by third party
• Wide range of coils available including ATEX
