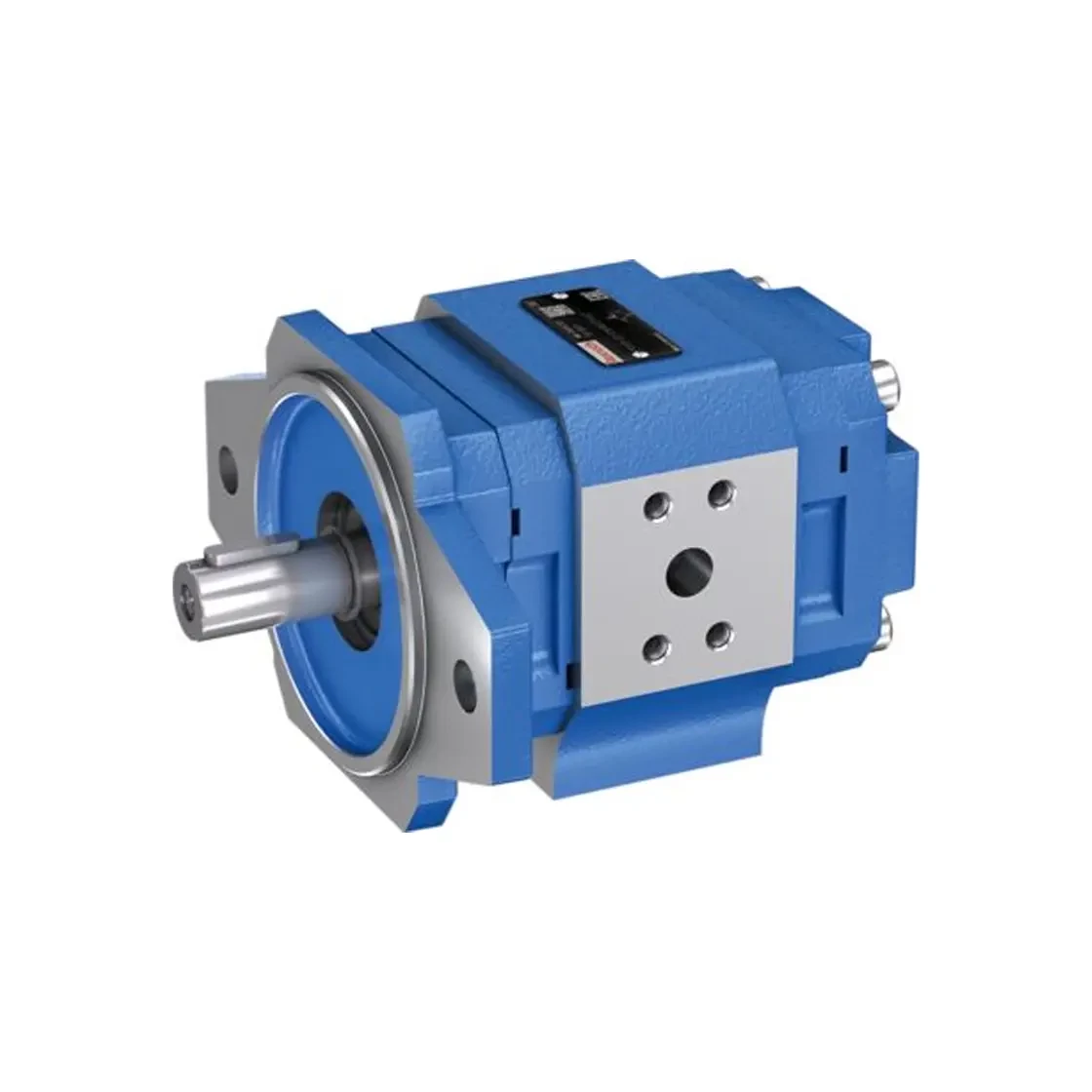

Internal gear pump - PGH2-2X/008RE07VU2

PGH Series Internal Gear Pump: High Performance for Industrial Applications

This internal gear pump is specifically designed for industrial applications within an open circuit. It's optimized for variable-speed drives, offering a robust and efficient solution for demanding hydraulic systems.

Key Features

• Optimized for variable-speed drives
• Low noise and low pulsation level
• High efficiency
• No load cycle limitation for extended durability
• Constant displacement
• Equipped with FKM seals for broad fluid compatibility
• Features a durable cast iron housing

Technical Specifications

• Size: 8
• Product Family: PGH
• Max. Operating Pressure:
  • Standard Fluids: 315 bar
  • Special Fluids: 210 bar
• Max. Flow: 24.6 l/min
• Through-drive: Yes
• Direction of Rotation: Counterclockwise
• Shaft End: Cylindrical ∅ 18 mm with fitting key
• Mounting Flange: 2-hole mounting flange 82-2 according to ISO 3019-1
• Hydraulic Fluid Compatibility: HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, HFDR
• Weight: 6.43 kg
