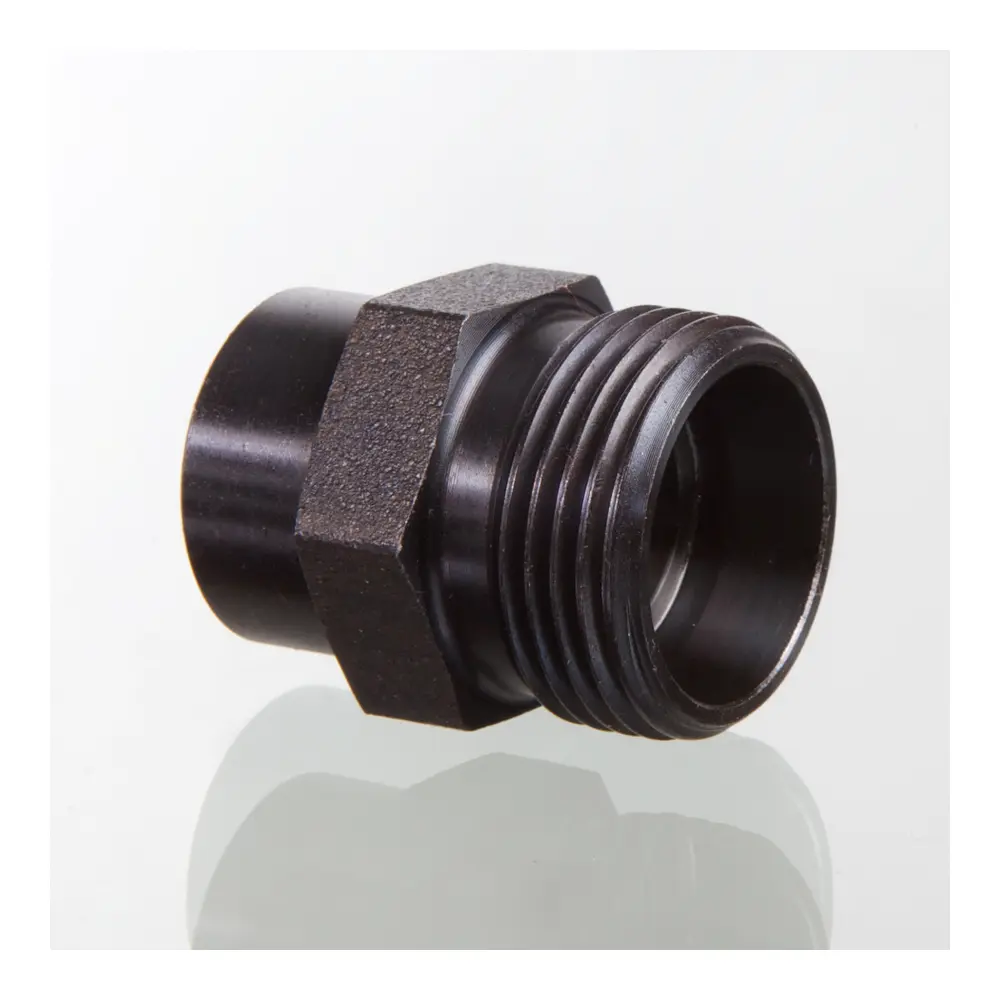

Tube Coupling - AS 10-L
2.4962 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - AS 10-L

2.4962 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric external thread
Connection G2 (mm) M16x1,5
Connector sub-type Metrikus menet - könnyű kivitel (AS-L)
Connector type Egyenes hegeszthető - AS

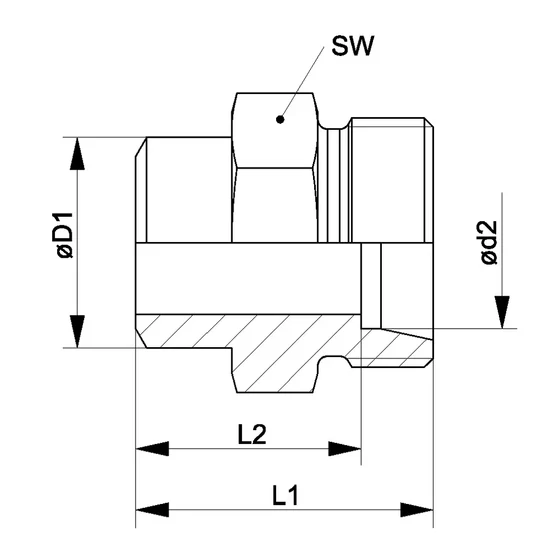

Ø d1 (mm) 14
Ø d2 (mm) 10
Surface Phosphated and oiled
Design L
L1 (mm) 25
L2 (mm) 18
SW (mm) 17
Standard ISO 8434-1
Structural form Straight weldable
Extent Nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 Welding filler material
Operating pressure (bar) 315
Manufacturer article number: 741753
Model: HQCAS10L00
Availability: 22 pcs in stock
Manufacturer: Nem besorolt
