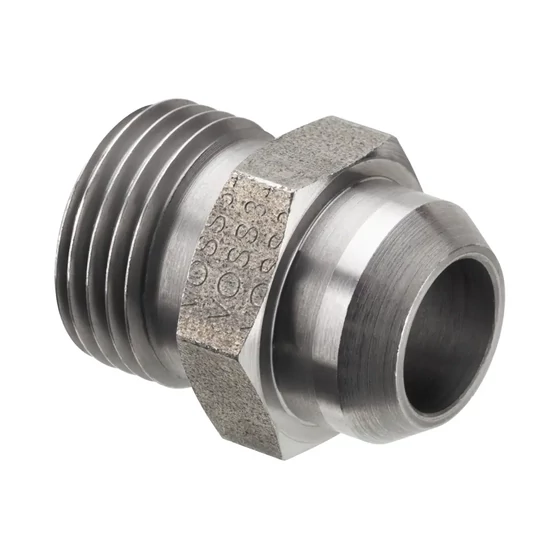

Tube Coupling - AS 12-S
4.9924 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - AS 12-S

4.9924 € + VAT
Qty:pcs
Add to Cart

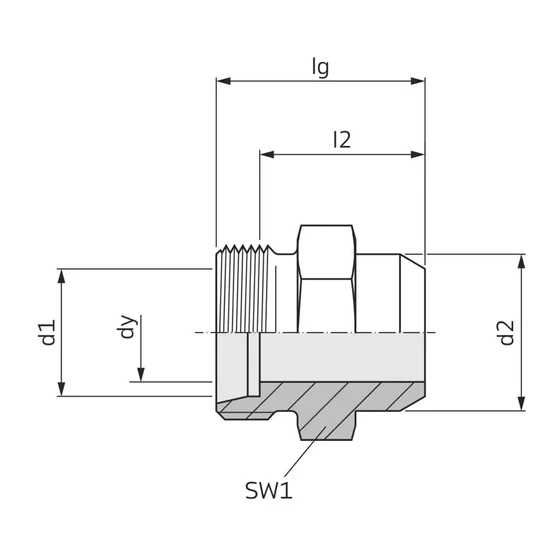

Material Steel
Connection 1 Metric external thread
Connection G1 (mm) M20x1,5
Connector sub-type Metrikus menet - könnyű kivitel (AS-S)
Connector type Egyenes hegeszthető - AS
Ø d1 (mm) 12
Ø d2 (mm) 17
dy (mm) 8
Surface Phosphated and oiled
l2 (mm) 24.5
Design S
lg (mm) 32
SW1 (mm) 22
Standard DIN 2353/ISO 8434-1
Structural form Straight weldable
Extent Nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 Welding filler material
Operating pressure (bar) 630
Manufacturer article number: TN91 - 12 - S
Model: HQCAS12S00
Availability: 10 pcs in stock
Manufacturer: Nem besorolt
