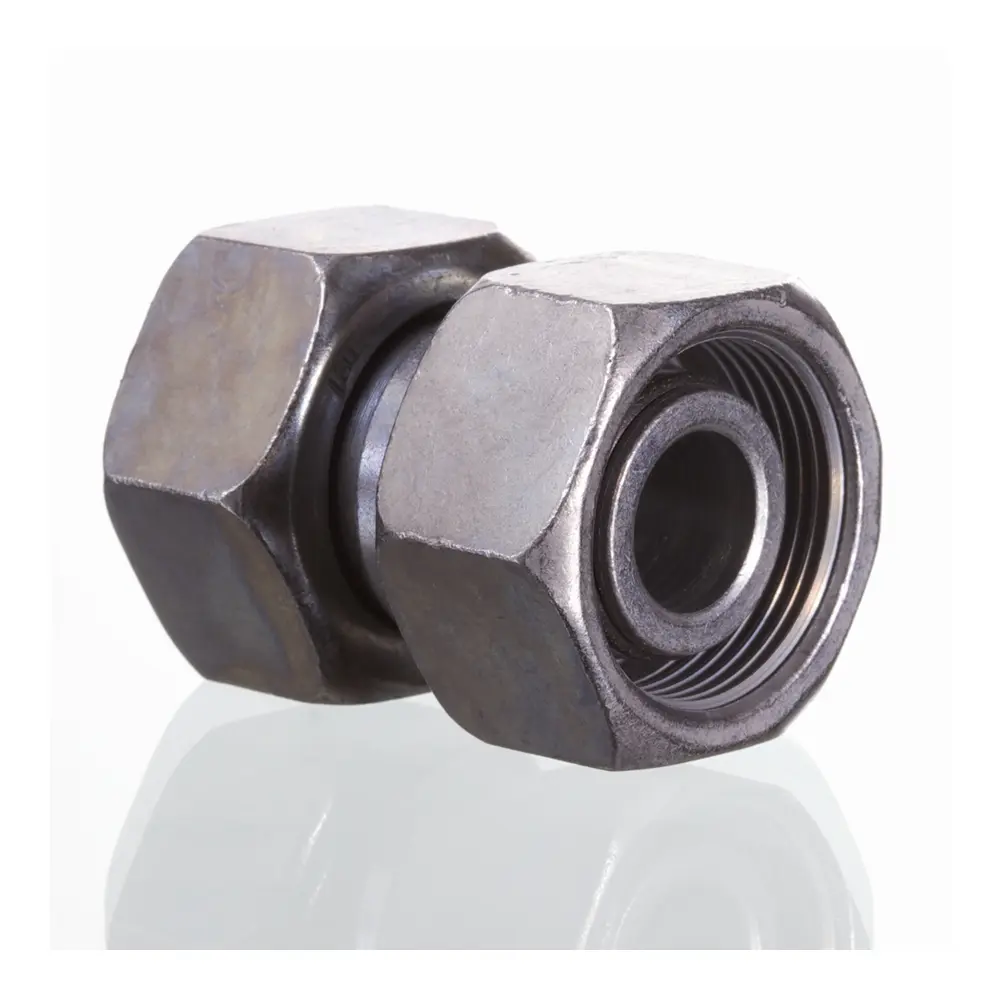

Tube Coupling - GZR 10/08-L
5.9909 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - GZR 10/08-L

5.9909 € + VAT
Qty:pcs
Add to Cart

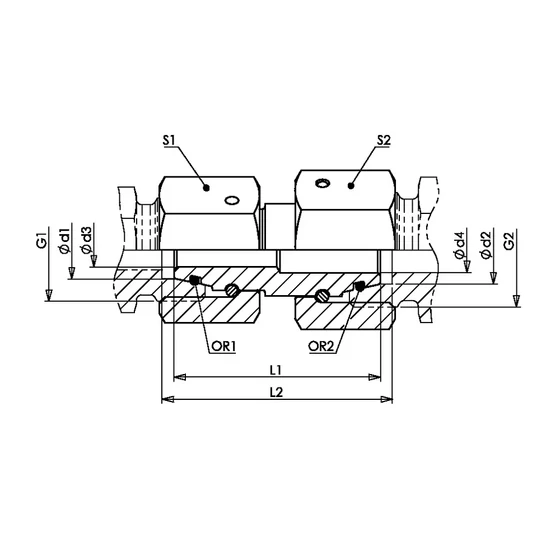

Material Steel
Connection 1 Metric swivel nut with internal thread
Connection 2 Metric swivel nut with internal thread
Connection G1 (mm) M 14 x 1.5
Connection G2 (mm) M 16 x 1.5
Connector sub-type Metrikus menet - könnyű kivitel (GZR-L)
Connector type Egyenes összekötő szűkítő - GZR
Ø d1 (mm) 8
Ø d2 (mm) 10
Surface Galvanic coating
H2 (mm) 19
Design L
L (mm) 33
OR1 6.0 x 1.5
OR2 7.5 x 1.5
S2 (mm) 17
Standard ISO 8434-1
Structural form Straight fitting
Extent Double nut
Sealing 1 24° external cone
Sealing 2 24° external cone
Operating pressure (bar) 315
Manufacturer article number: DMONW06L08
Model: HQCGZ10L080
Availability: 4 pcs in stock
Manufacturer: Nem besorolt
