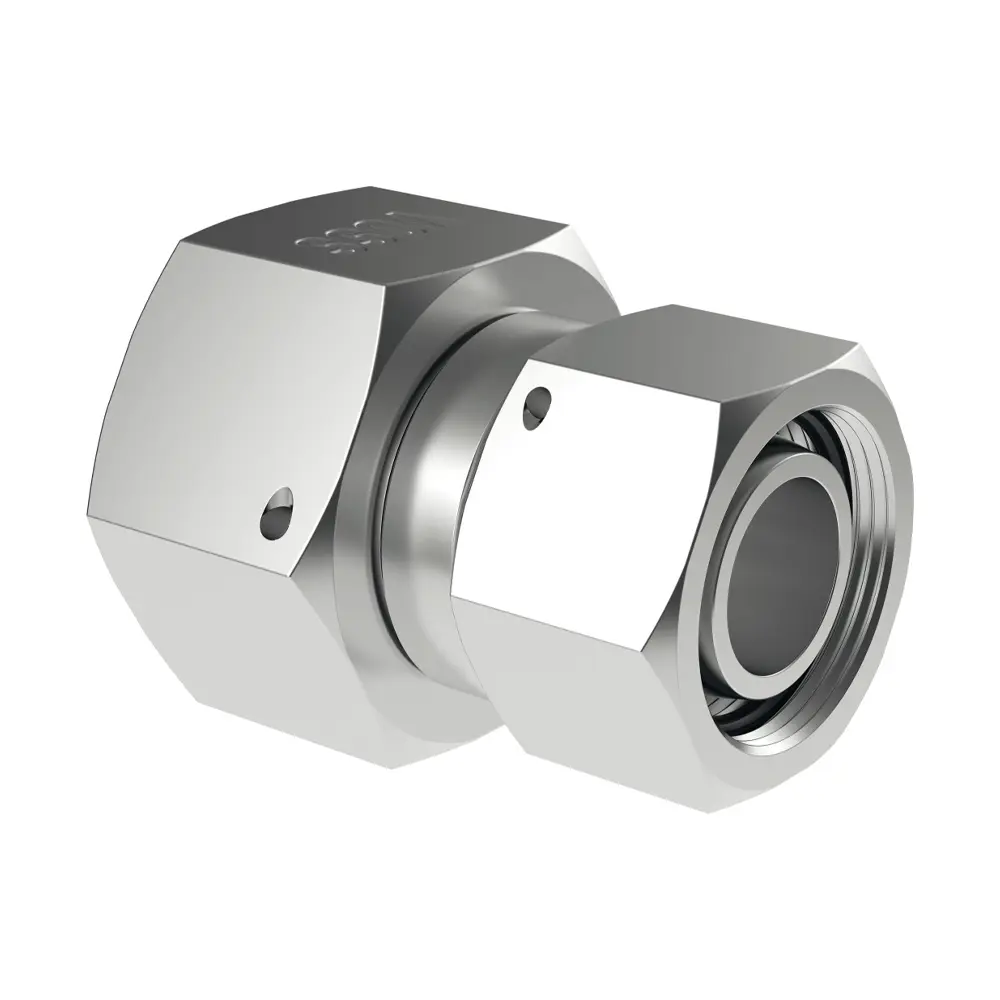

Tube Coupling - GZR 30/20-S
49.9238 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - GZR 30/20-S

49.9238 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric swivel nut with internal thread
Connection 2 Metric swivel nut with internal thread
Connection G1 (mm) M42x2
Connection G2 (mm) M30x2
Connector sub-type Metrikus menet - nehéz kivitel (GZR-S)
Connector type Egyenes összekötő szűkítő - GZR

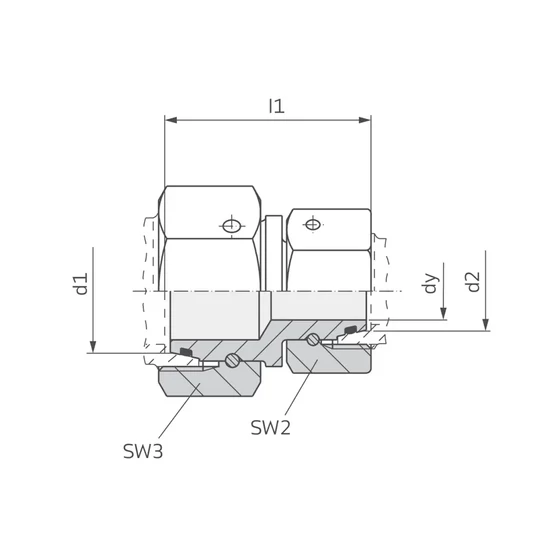

Ø d1 (mm) 30
Ø d2 (mm) 20
dy (mm) 14
Surface Galvanic coating
Design S - S
l1 (mm) 59
SW2 (mm) 36
SW3 (mm) 50
Standard DIN 2353/ISO 8434-1
Structural form Straight reducing connector - GZR
Extent Double nut
Sealing 1 24° external cone
Sealing 2 24° external cone
Operating pressure (bar) 420
Manufacturer article number: G20506
Model: HQCGZ30S200
Availability: 1 pcs in stock
Manufacturer: Nem besorolt
