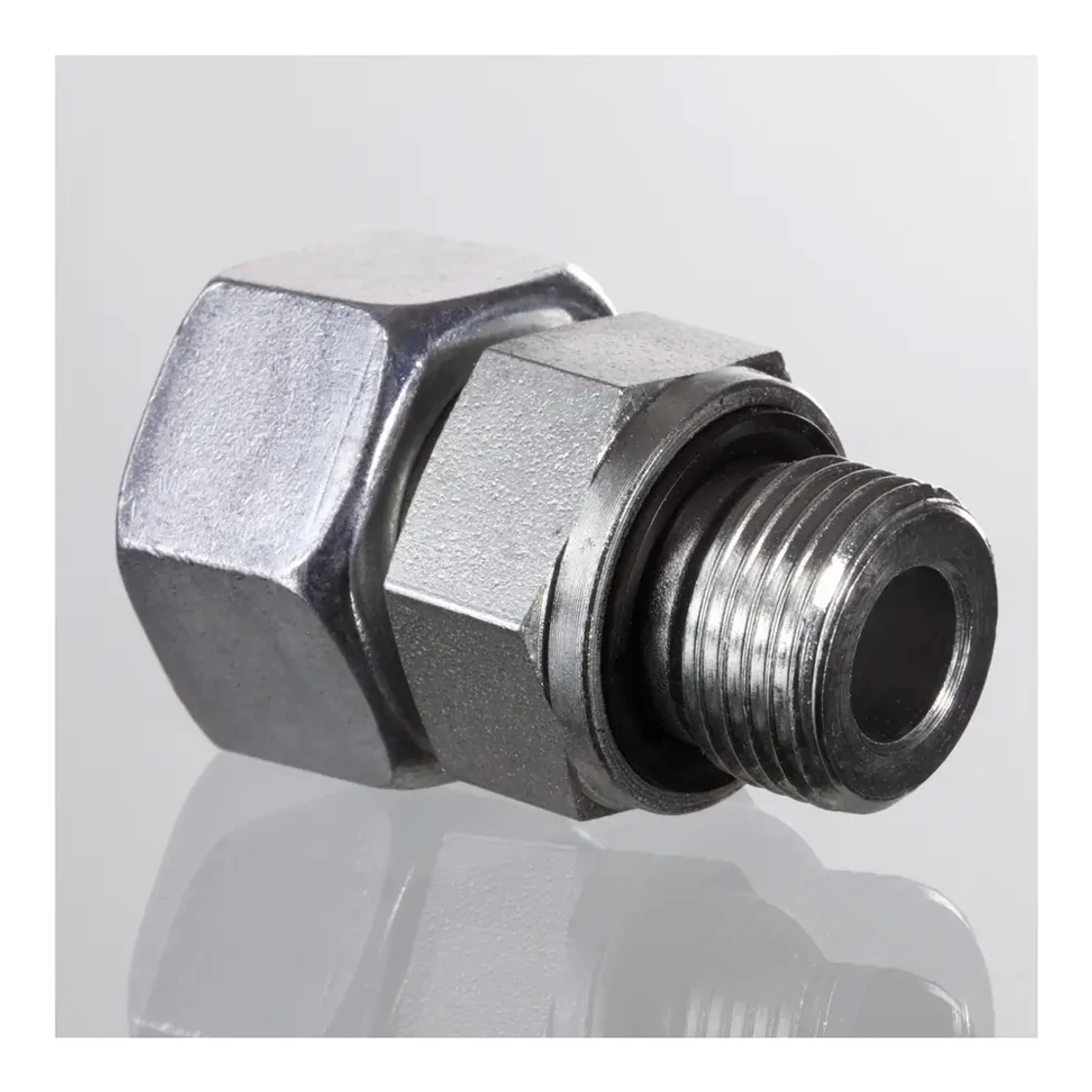

Tube Coupling - EGE 06-LR
5.4916 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - EGE 06-LR

5.4916 € + VAT
Qty:pcs
Add to Cart

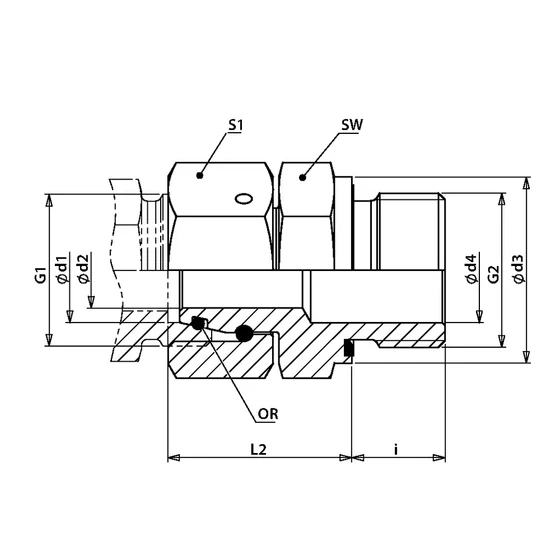

Material Steel
Connection 1 Metric swivel nut with internal thread
Connection 2 BSPP male thread
Ø d3 (mm) 13.9
Ø d1 (mm) 6
Surface Galvanic coating
i (mm) 8
Design L
L2 (mm) 24.5
S1 (mm) 14
SW (mm) 14
Structural form Straight Screw-in Insert - EGE
Sealing 1 60° external cone
Sealing 2 E-form
Operating pressure (bar) 315
Manufacturer article number: AOVRNW04LED
Model: HQCEG06LR020
Availability: 29 pcs in stock
Manufacturer: Nem besorolt
