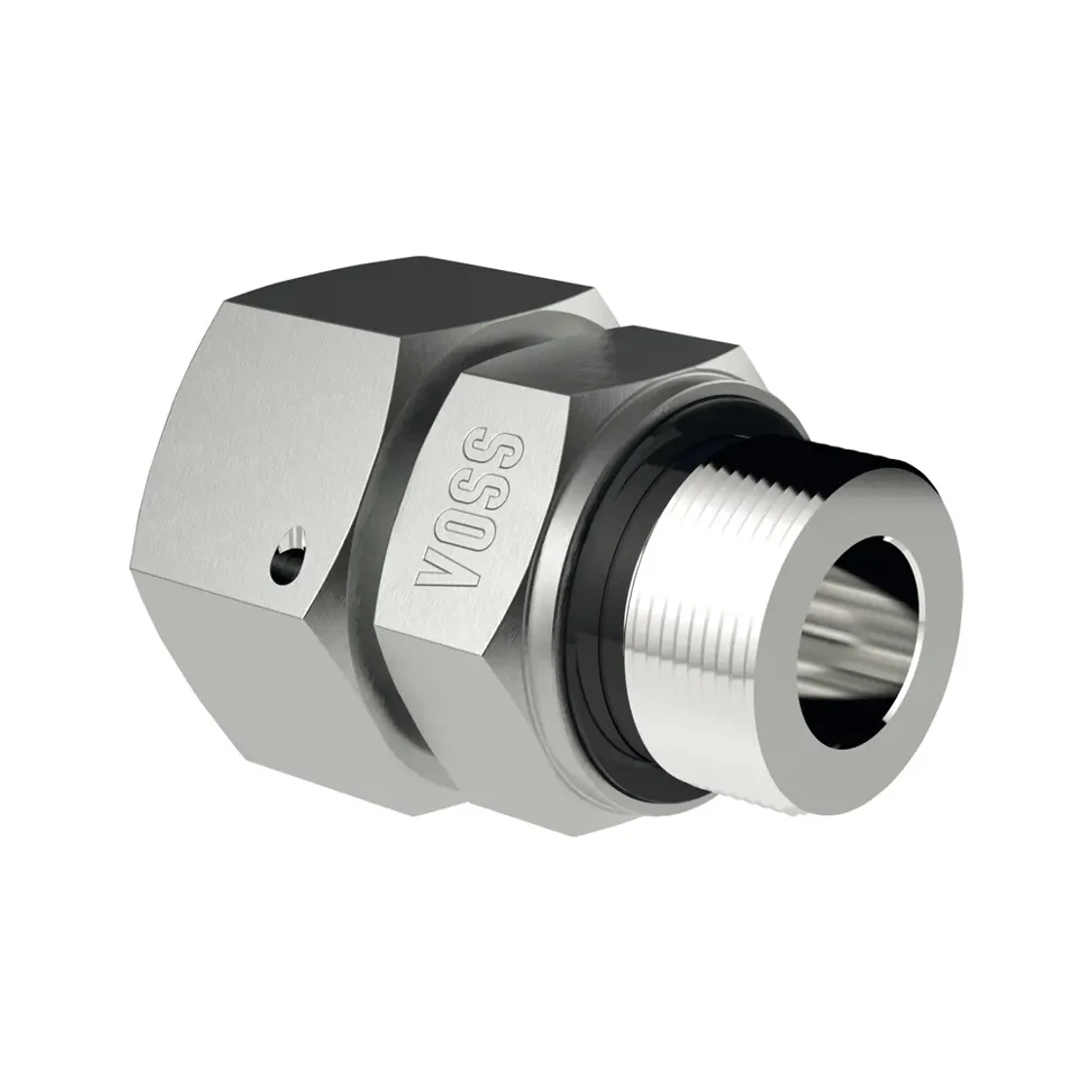

Tube Coupling - EGE 08-SR
5.0043 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - EGE 08-SR

5.0043 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric swivel nut with internal thread
Connection 2 BSPP male thread
Connection G1 (mm) M16x1,5
Connection G2 (mm) G 1/4 A
Connector sub-type Metrikus/BSP menet - nehéz kivitel (EGE-S/R)
Connector type Egyenes rátét becsavarható - EGE
d7 (mm) 18.9
Ø d1 (mm) 8
dx (mm) 4
Surface Galvanic coating
i (mm) 12
Design S
l5 (mm) 29.5
SW1 (mm) 19
SW3 (mm) 19
Standard DIN 2353/ISO 8434-1, ISO 1179-2
Structural form Straight Screw-in Insert - EGE
Extent Swivel nut, without cutting ring
Sealing 1 24° external cone
Sealing 2 E-form
Operating pressure (bar) 800
Manufacturer article number: 1165582000
Model: HQCEG08SR040
Availability: 13 pcs in stock
Manufacturer: Nem besorolt
