Tube Coupling - (EGE-R) - JIC 3/4
3.5030 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - (EGE-R) - JIC 3/4"-16 - G1/4"

3.5030 € + VAT
Qty:pcs
Add to Cart

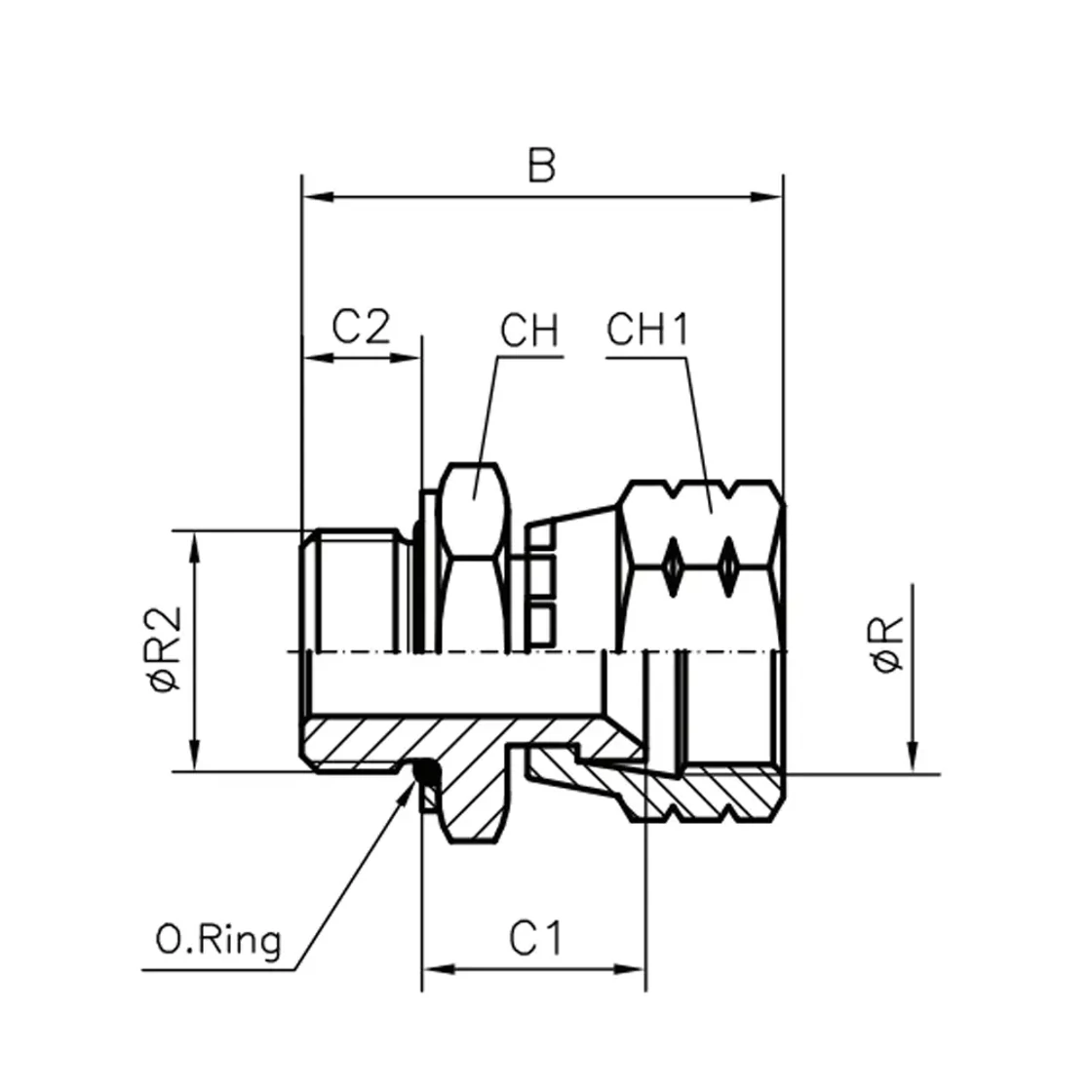

Material Steel
B (mm) 41.2
C1 (mm) 21
C2 (mm) 9.5
CH (mm) 19
CH1 (mm) 24
Connection 1 UNF female swivel nut
Connection 2 BSPP external thread
Connection ØR (col) 3/4
Connection ØR2 (inch) 1/4
Connector sub-type UNF/BSP menet - JIC kivitel (EGE-JIC/R)
Connector type Egyenes rátét becsavarható - EGE
Pipe size (mm) 12
Pipe size (inch) 1/2
Surface Galvanic coating
Structural form Straight Screw-in Insert - EGE
Sealing 1 37° internal cone
Sealing 2 O-ring
Operating pressure (bar) 350
Manufacturer article number: BA.49.08.04
Model: HQCJEG08R040
Availability: 5 pcs in stock
Manufacturer: Nem besorolt
