Tube Coupling - (EGE-R) - JIC 7/16
3.7592 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - (EGE-R) - JIC 7/16"-20 - G1/8"

3.7592 € + VAT
Qty:pcs
Add to Cart

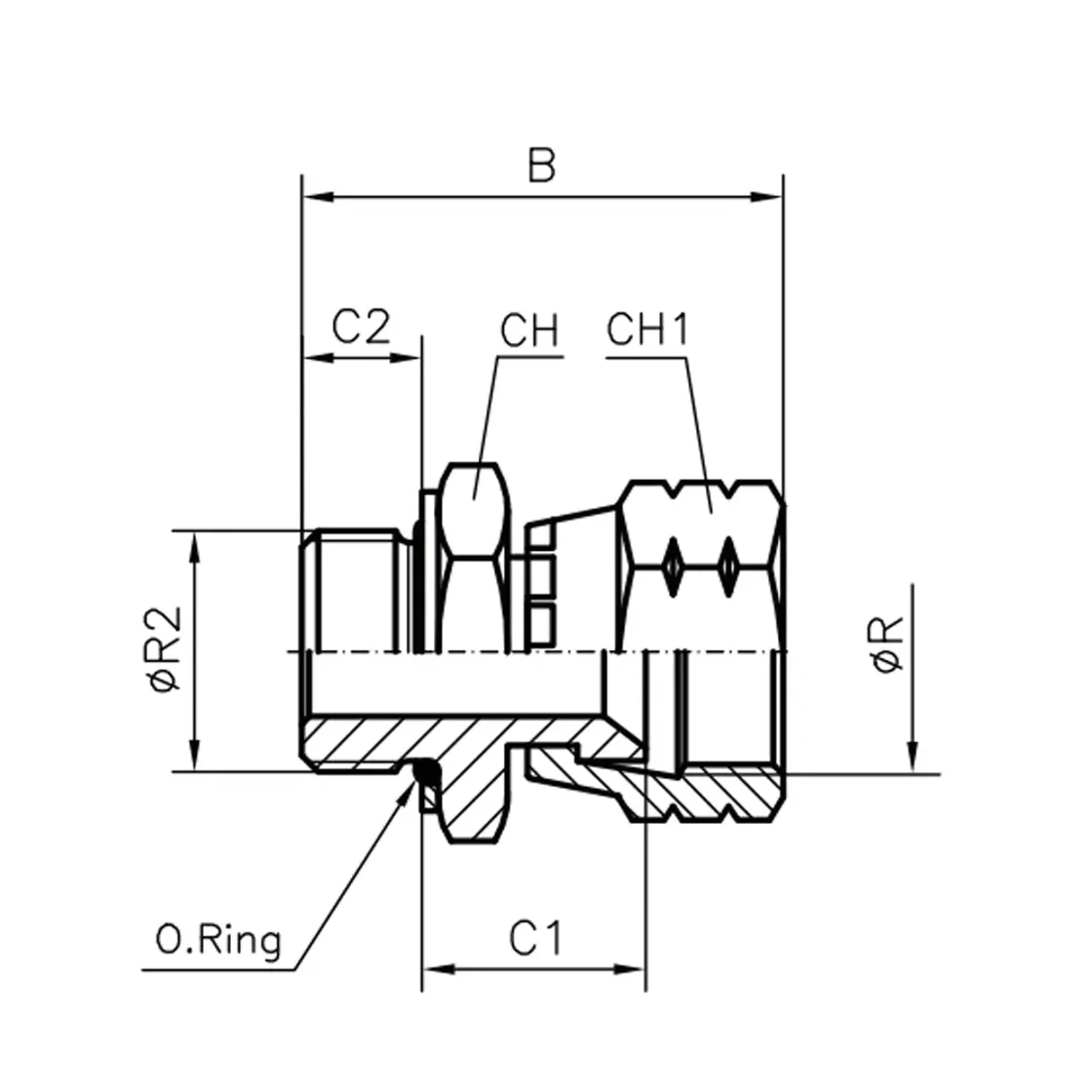

Material Steel
B (mm) 31.4
C1 (mm) 16.4
C2 (mm) 6.3
CH (mm) 161
CH1 (mm) 17
Connection 1 UNF female swivel nut
Connection 2 BSPP external thread
Pipe size (mm) 6
Surface Galvanic coating
Structural form Straight Screw-in Insert - EGE
Sealing 1 37° internal cone
Sealing 2 O-ring
Operating pressure (bar) 350
Manufacturer article number: BA.49.04.02
Model: HQCJEG04R020
Availability: 4 pcs in stock
Manufacturer: Nem besorolt
