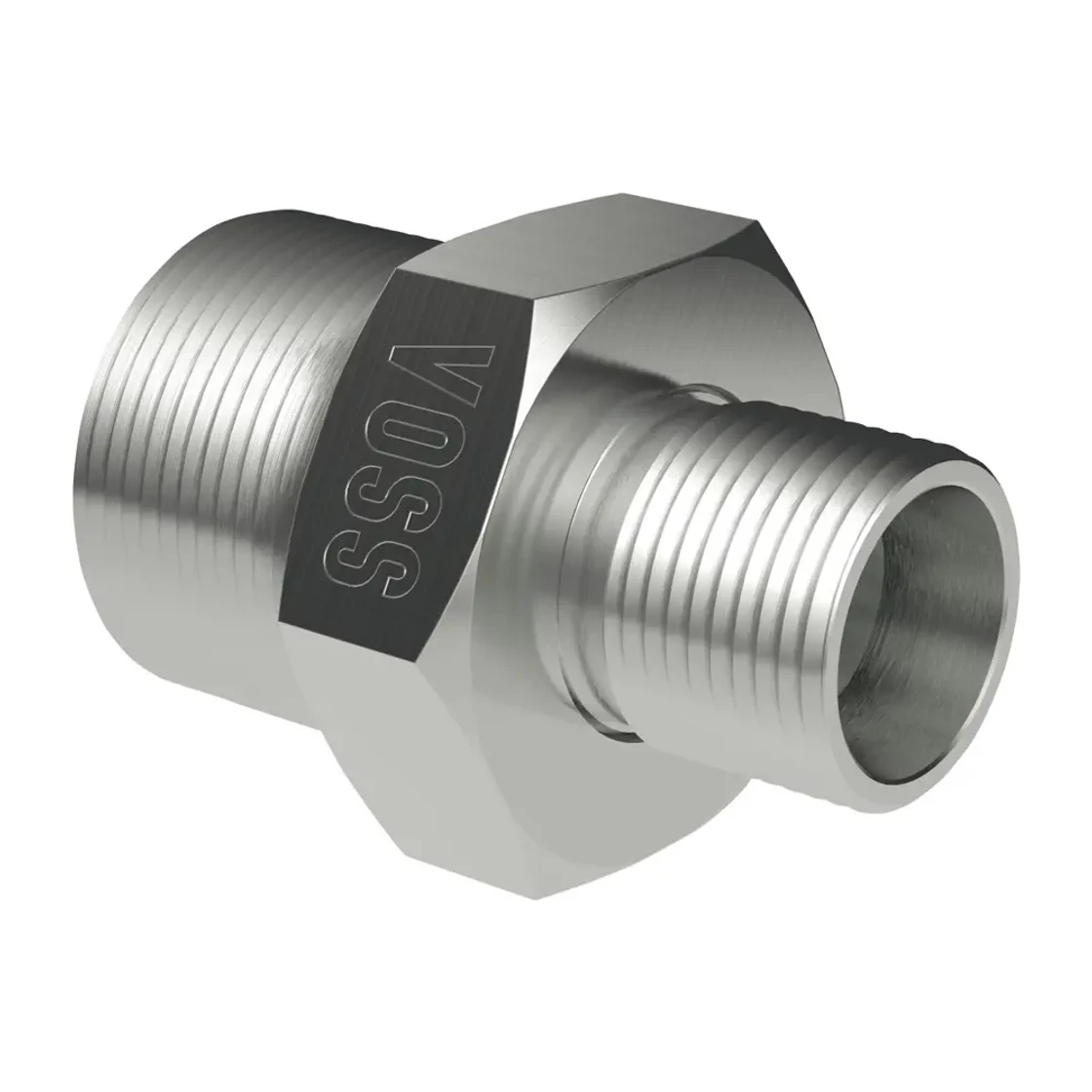

Tube Coupling - GR 08/06-S
3.7568 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - GR 08/06-S

3.7568 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric male thread
Connection 2 Metric male thread
Connection G1 (mm) M16x1,5
Connection G2 (mm) M14x1,5
Connector sub-type Metrikus menet - nehéz kivitel (GR-S)
Connector type Egyenes szűkítő - GR

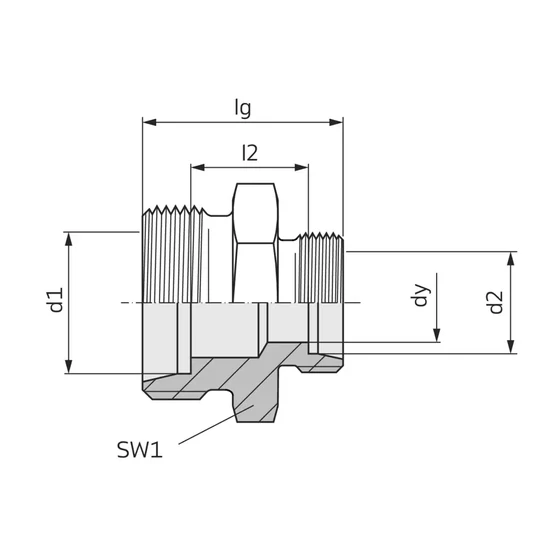

Ø d1 (mm) 8
Ø d2 (mm) 6
dy (mm) 4
Surface Galvanic coating
l2 (mm) 18
Design S
lg (mm) 32
SW1 (mm) 17
Standard DIN 2353/ISO 8434-1
Structural form Straight Reducer - GR
Extent Swivel nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 24° internal cone
Operating pressure (bar) 800
Manufacturer article number: AME0806S.1
Model: HQCGR08S06S0
Availability: 3 pcs in stock
Manufacturer: Nem besorolt
