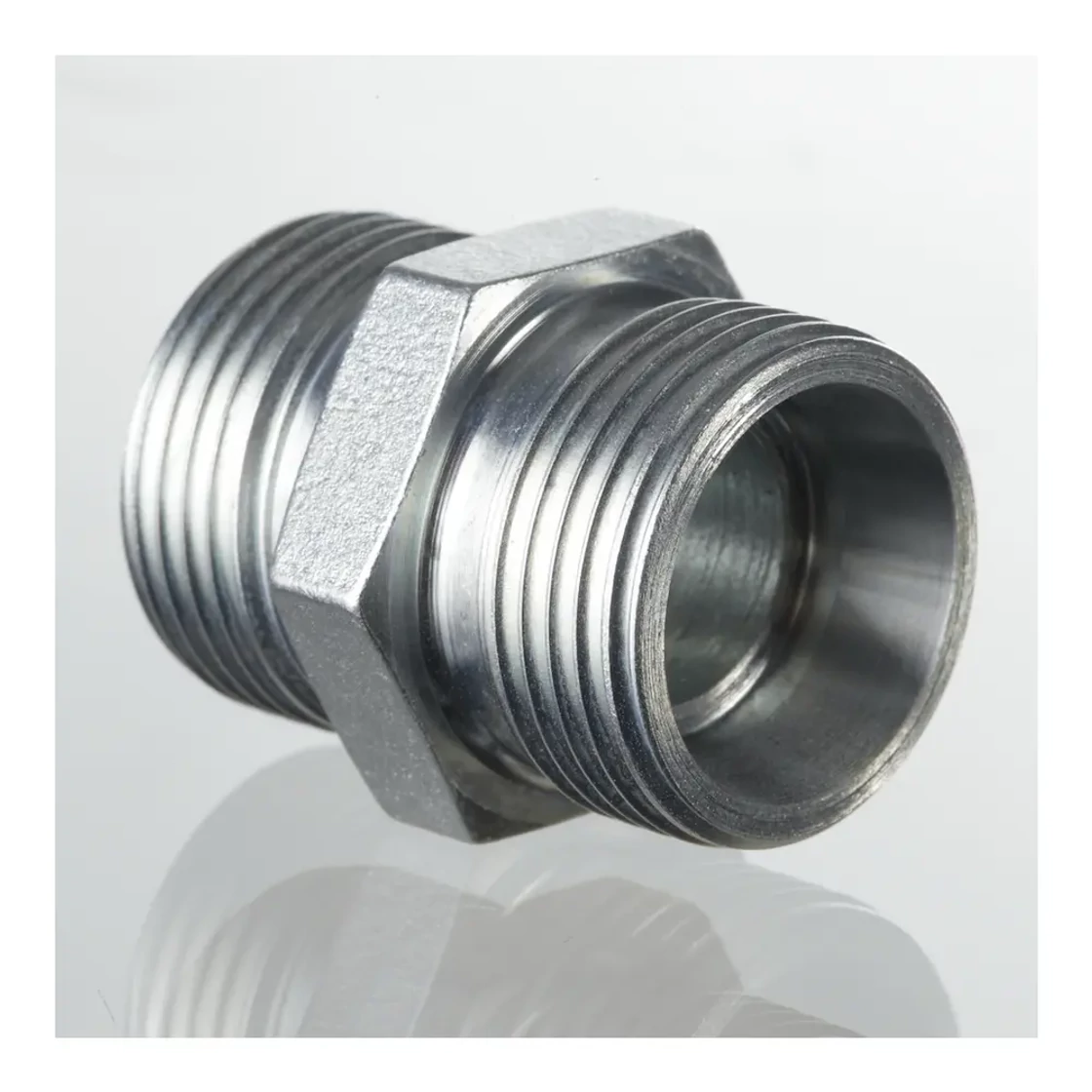

Tube Coupling - GR 12/10-L
4.7586 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - GR 12/10-L

4.7586 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric male thread
Connection 2 Metric male thread
Connection G1 (mm) M18x1,5
Connection G2 (mm) M16x1,5
Connector sub-type Metrikus menet - könnyű kivitel (GR-L)
Connector type Egyenes szűkítő - GR
Ø d1 (mm) 12
Ø d2 (mm) 10
Surface Galvanic coating
Design L
L1 (mm) 28
L2 (mm) 14
SW (mm) 19
Standard ISO 8434-1
Structural form Straight Reducer - GR
Extent Swivel nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 24° internal cone
Operating pressure (bar) 315
Manufacturer article number: VNW10HL08
Model: HQCGR12L10L0
Availability: 12 pcs in stock
Manufacturer: Nem besorolt
