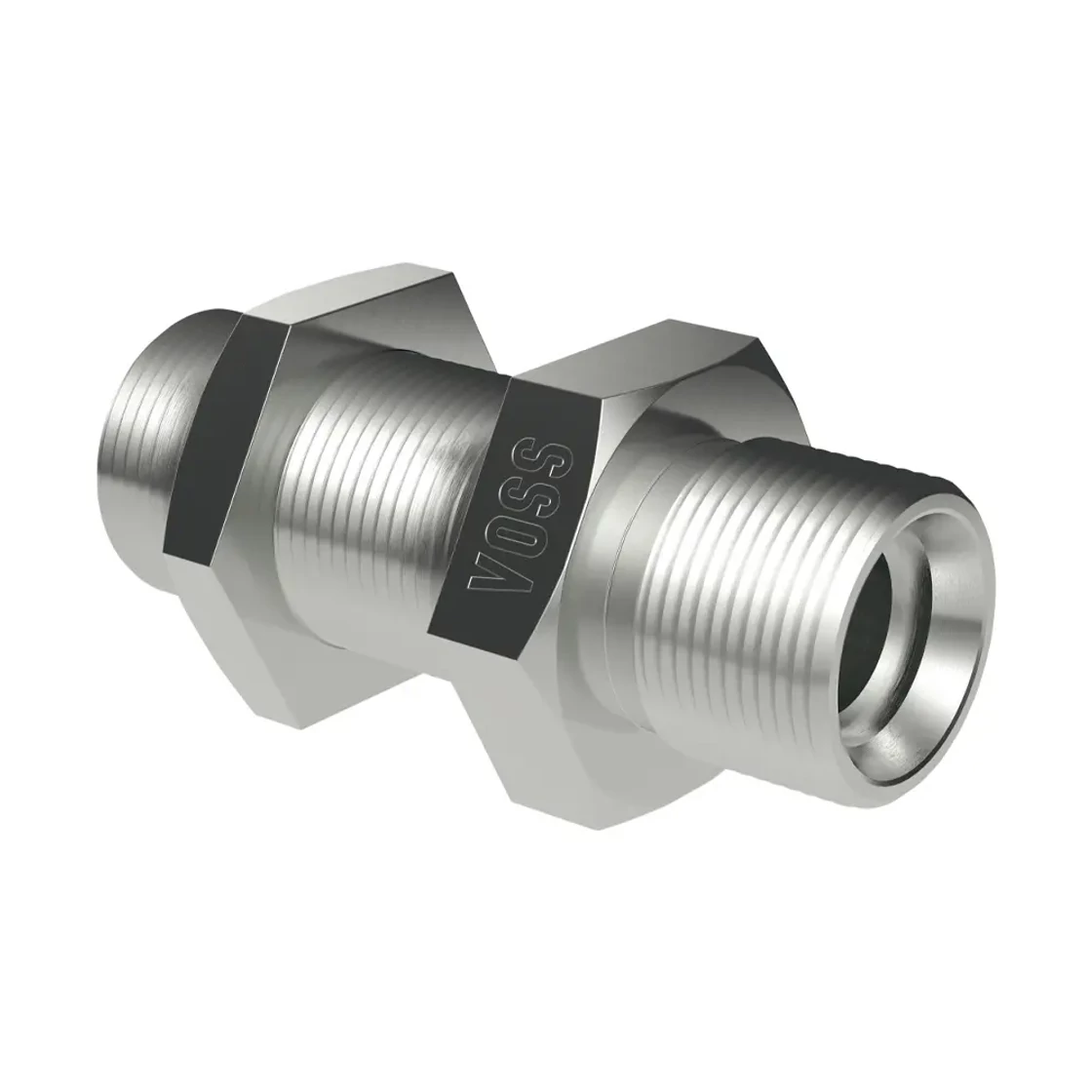

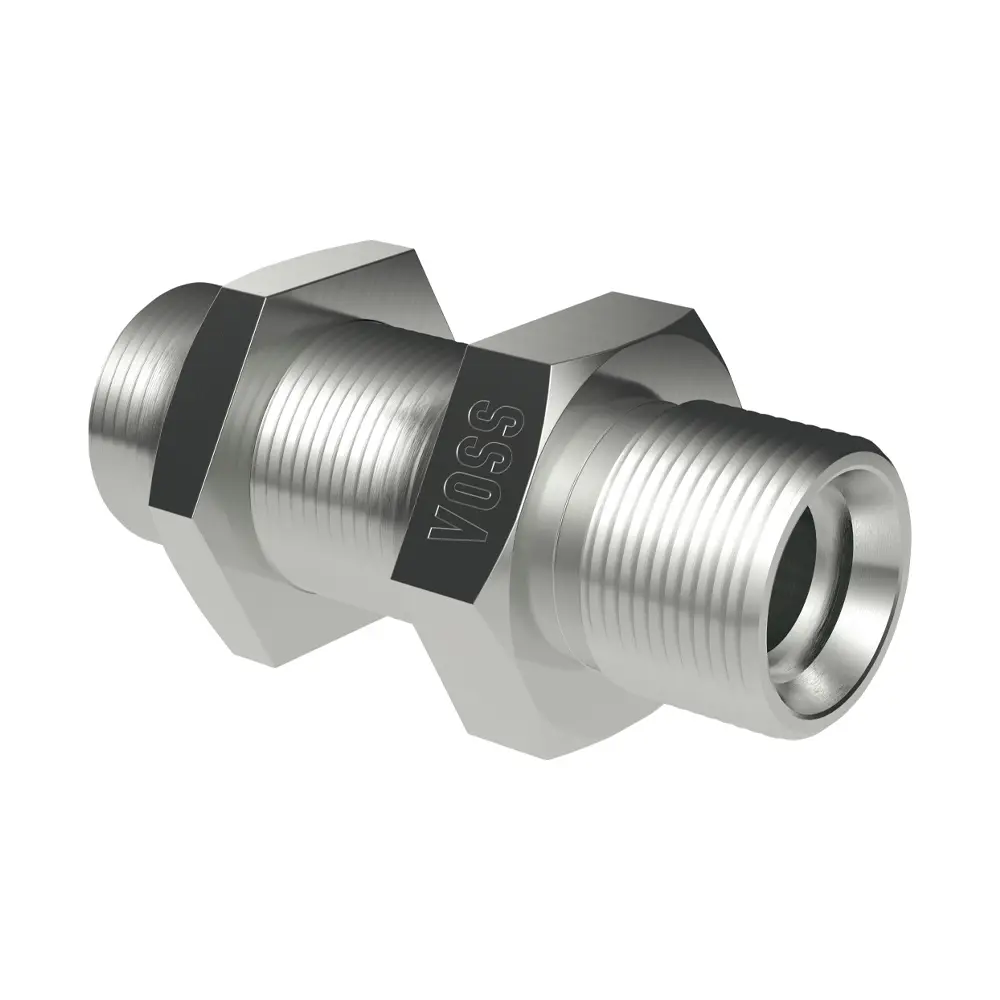

Tube Coupling - SV 06-S
3.0054 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - SV 06-S

3.0054 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric male thread
Connection 2 Metric male thread
Connection G1 - G2 (mm) M14x1,5
Connector sub-type Metrikus menet - nehéz kivitel (SV-S)
Connector type Falazatátvezető - SV

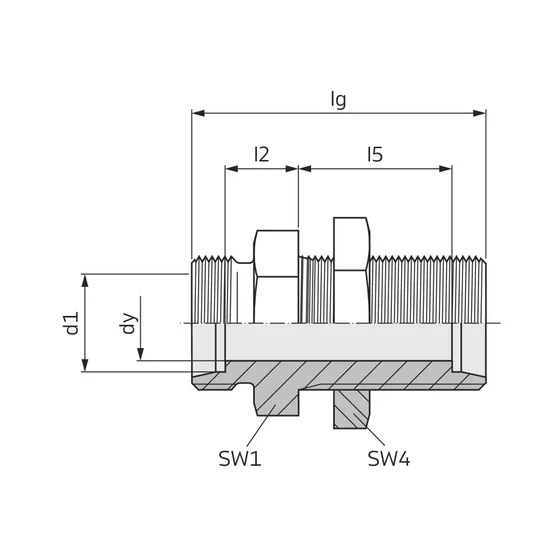

Ø d1 (mm) 6
dy (mm) 4
Surface Galvanic coating
l2 (mm) 12
Design S
l5 (mm) 29
lg (mm) 55
SW1 (mm) 19
SW4 (mm) 19
Standard DIN 2353/ISO 8434-1
Structural form Bulkhead Fitting - SV
Extent Swivel nut, without cutting ring
Sealing 1 24° internal cone, flat sealing
Sealing 2 24° internal cone
Operating pressure (bar) 800
Manufacturer article number: 137502007
Model: HQCSV06S00
Availability: 7 pcs in stock
Manufacturer: Nem besorolt
