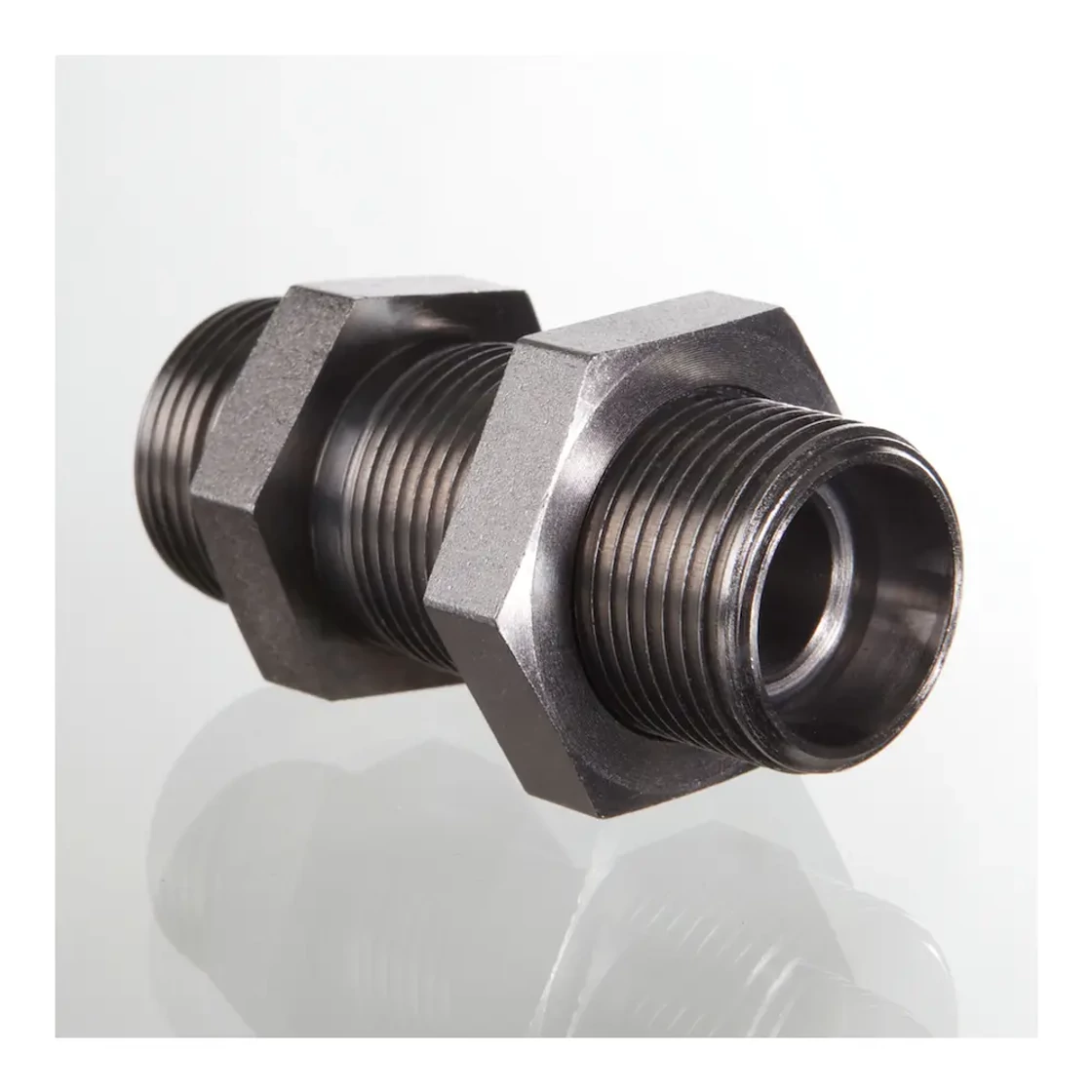

Tube Coupling - SV 08-L
4.2577 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - SV 08-L

4.2577 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric male thread
Connection 2 Metric male thread

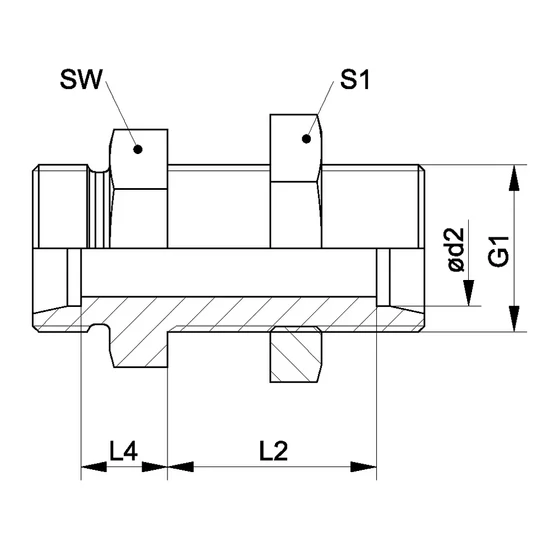

Connection G1 - G2 (mm) M 14 x 1.5
Connector sub-type Metrikus menet - könnyű kivitel (SV-L)
Connector type Falazatátvezető - SV
Ø d2 (mm) 8
Surface Galvanic coating
Design L
L2 (mm) 27
L4 (mm) 8
S1 (mm) 19
SW (mm) 19
Standard DIN 2353/ISO 8434-1
Structural form Bulkhead Fitting - SV
Extent Swivel nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 24° internal cone
Operating pressure (bar) 315
Manufacturer article number: SVNW06HL
Model: HQCSV08L00
Availability: 19 pcs in stock
Manufacturer: Nem besorolt
