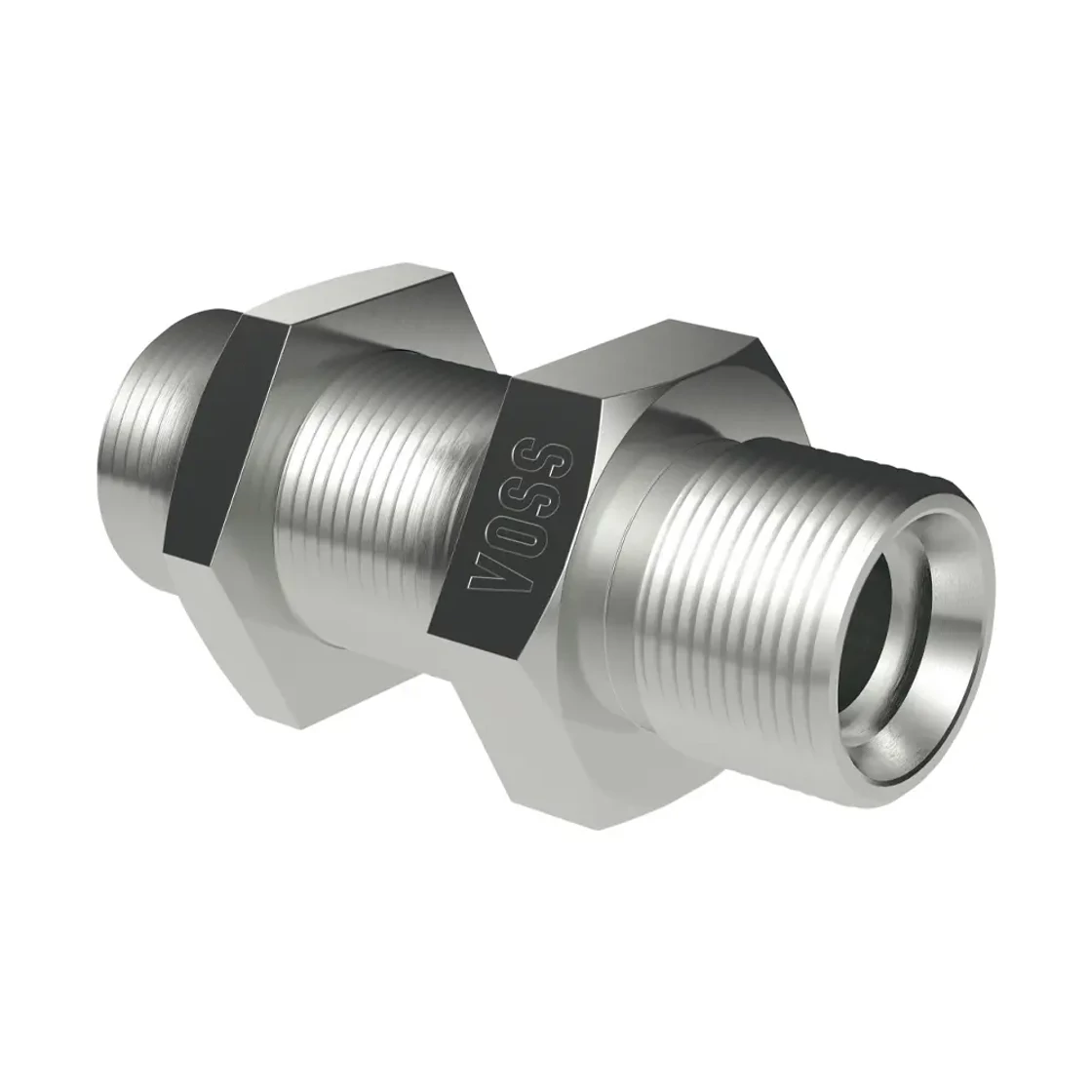

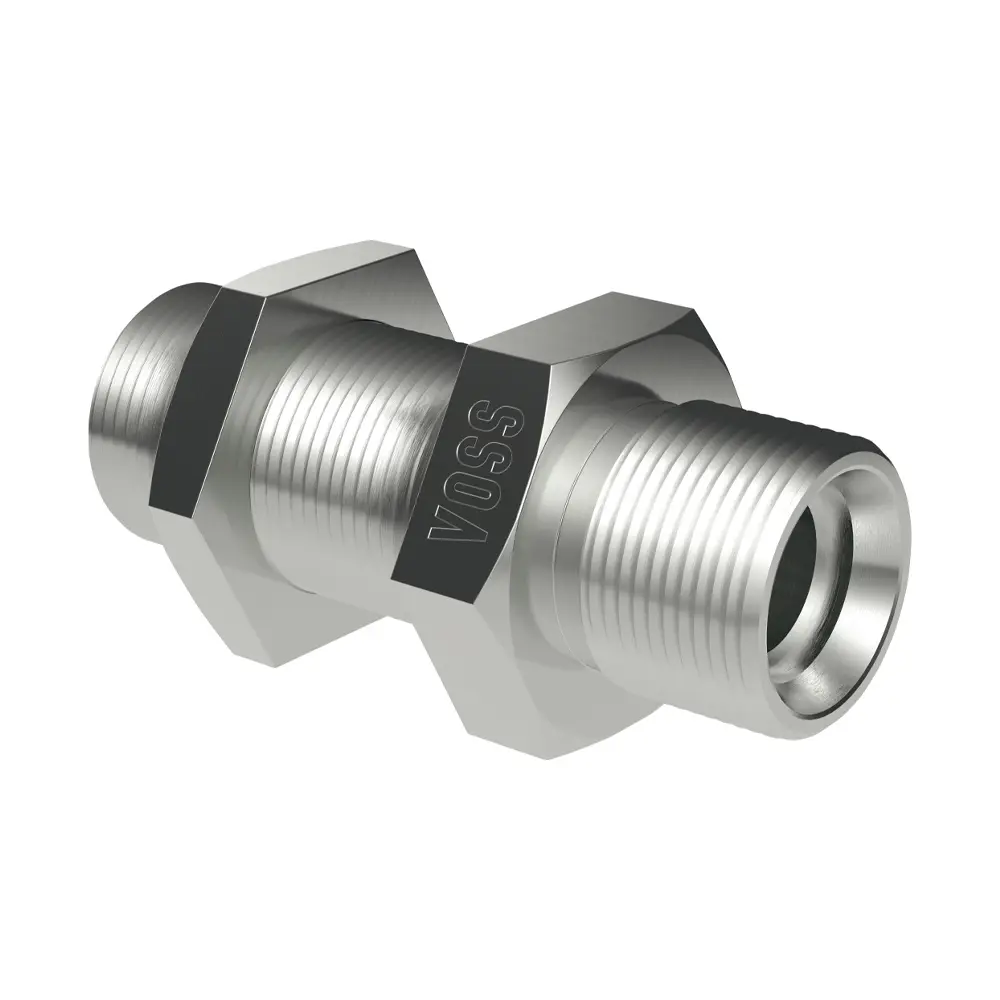

Tube Coupling - SV 08-S
5.5099 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - SV 08-S

5.5099 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric male thread
Connection 2 Metric male thread

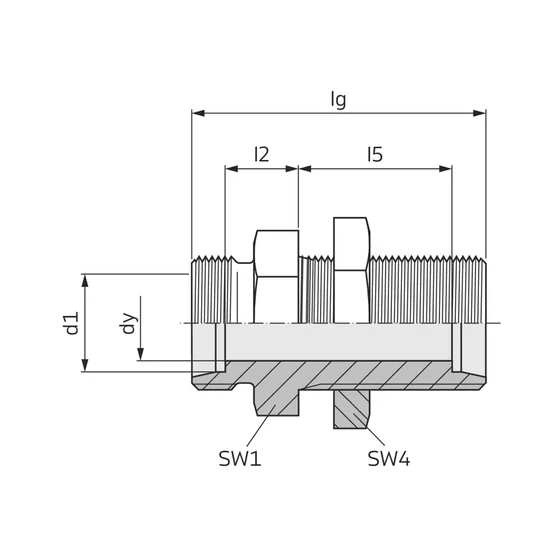

Connection G1 - G2 (mm) M16x1,5
Connector sub-type Metrikus menet - nehéz kivitel (SV-S)
Connector type Falazatátvezető - SV
Ø d1 (mm) 8
dy (mm) 5
Surface Galvanic coating
l2 (mm) 13
Design S
l5 (mm) 29
lg (mm) 56
SW1 (mm) 22
SW4 (mm) 22
Standard DIN 2353/ISO 8434-1
Structural form Bulkhead Fitting - SV
Extent Swivel nut, without cutting ring
Sealing 1 24° internal cone, flat sealing
Sealing 2 24° internal cone
Operating pressure (bar) 800
Manufacturer article number: 137552007
Model: HQCSV08S00
Availability: 30 pcs in stock
Manufacturer: Nem besorolt
