Tube Coupling - (SV-UNF) - JIC 7/8
6.2613 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - (SV-UNF) - JIC 7/8"-14

6.2613 € + VAT
Qty:pcs
Add to Cart
Material Steel

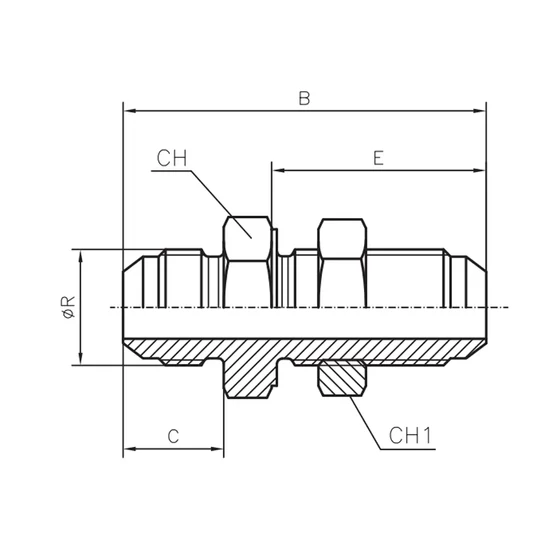

B (mm) 69.6
C (mm) 19.3
CH (mm) 30
CH1 (mm) 30
Connection 1 UNF male thread
Connection 2 UNF male thread
Connection ØR (col) 7/8
Connector sub-type UNF menet - JIC kivitel (SV-JIC)
Connector type Falazatátvezető - SV
Pipe size (mm) 16
Pipe size (inch) 5/8
E (mm) 41.1
Surface Galvanic coating
Structural form Bulkhead Fitting - SV
Sealing 1 37° external cone
Sealing 2 37° external cone
Operating pressure (bar) 350
Manufacturer article number: BA.53.00.10
Model: HQCJSV1000
Availability: 5 pcs in stock
Manufacturer: Nem besorolt
