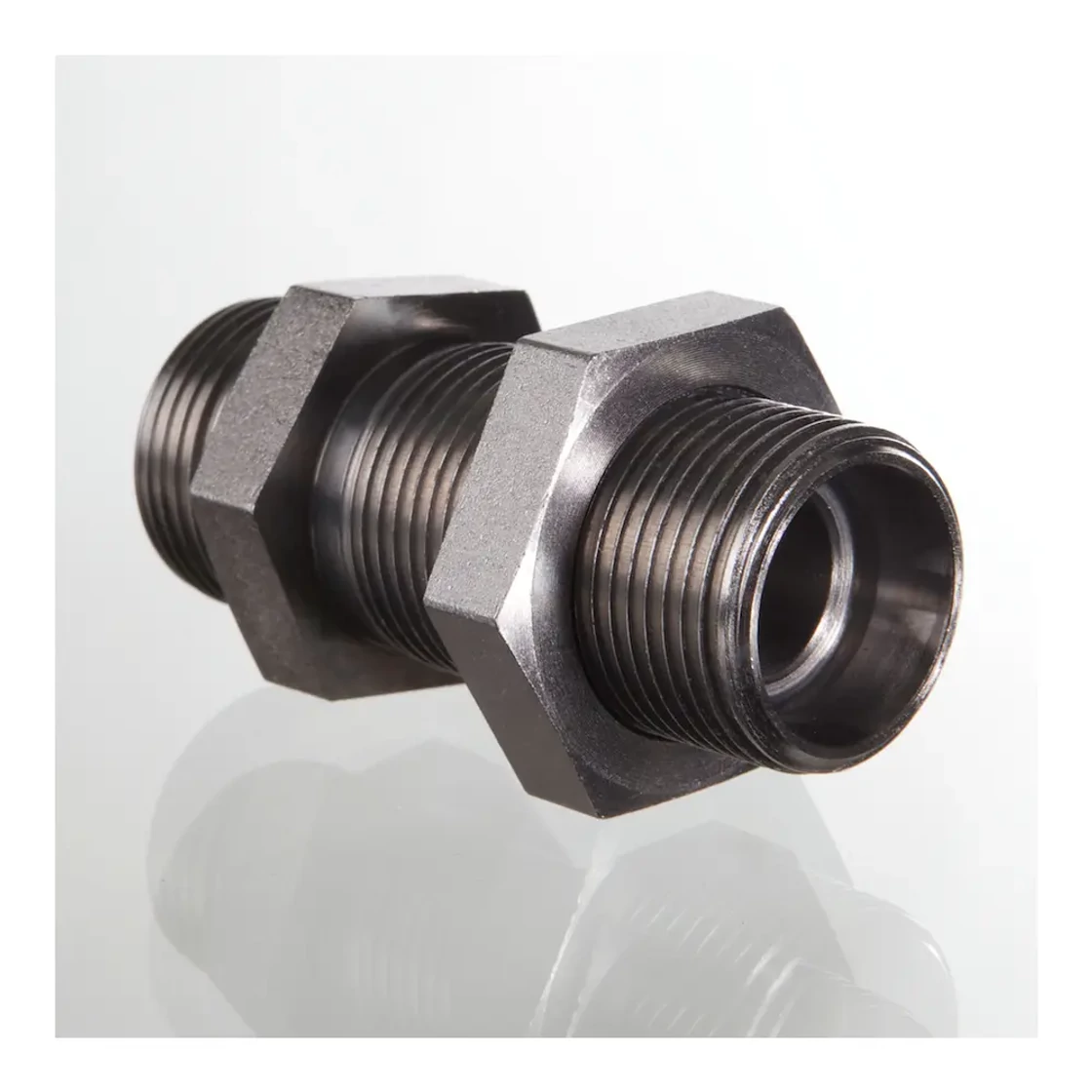

Tube Coupling - SV 42-L
37.5000 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - SV 42-L

37.5000 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric male thread
Connection 2 Metric male thread
Connection G1 - G2 (mm) M 52 x 2
Connector sub-type Metrikus menet - könnyű kivitel (SV-L)
Connector type Falazatátvezető - SV
Ø d2 (mm) 42
Surface Galvanic coating
Design L
L2 (mm) 36
L4 (mm) 19
S1 (mm) 65
SW (mm) 60
Standard DIN 2353/ISO 8434-1
Structural form Bulkhead Fitting - SV
Extent Swivel nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 24° internal cone
Operating pressure (bar) 160
Main category Fittings
SubCategory Bulkhead union - SV
Manufacturer Nincs
Manufacturer article number: SVNW40HL
Model: HQCSV42L00
Availability: 2 pcs in stock
Manufacturer: Nem besorolt
