Tube Coupling - (SV-UNF) - JIC 1.3/16
18.7838 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - (SV-UNF) - JIC 1.3/16"-12

18.7838 € + VAT
Qty:pcs
Add to Cart

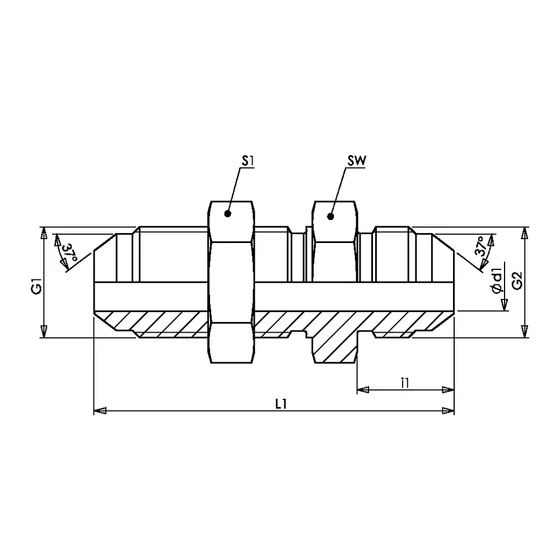

Material Steel
Connection 1 UNF male thread
Connection 2 UNF male thread
Connection G1 - G2 (mm) 1.3/16" -12 UN
Connector sub-type UNF menet - JIC kivitel (SV-JIC)
Connector type Falazatátvezető - SV
Surface Galvanic coating
S1 (mm) 38
SW (mm) 38
Standard ISO 8434-2
Structural form Bulkhead Fitting - SV
Sealing 1 37° external cone
Sealing 2 37° external cone
Manufacturer article number: SVHJ14
Model: HQCJSV1400
Availability: 2 pcs in stock
Manufacturer: Nem besorolt
