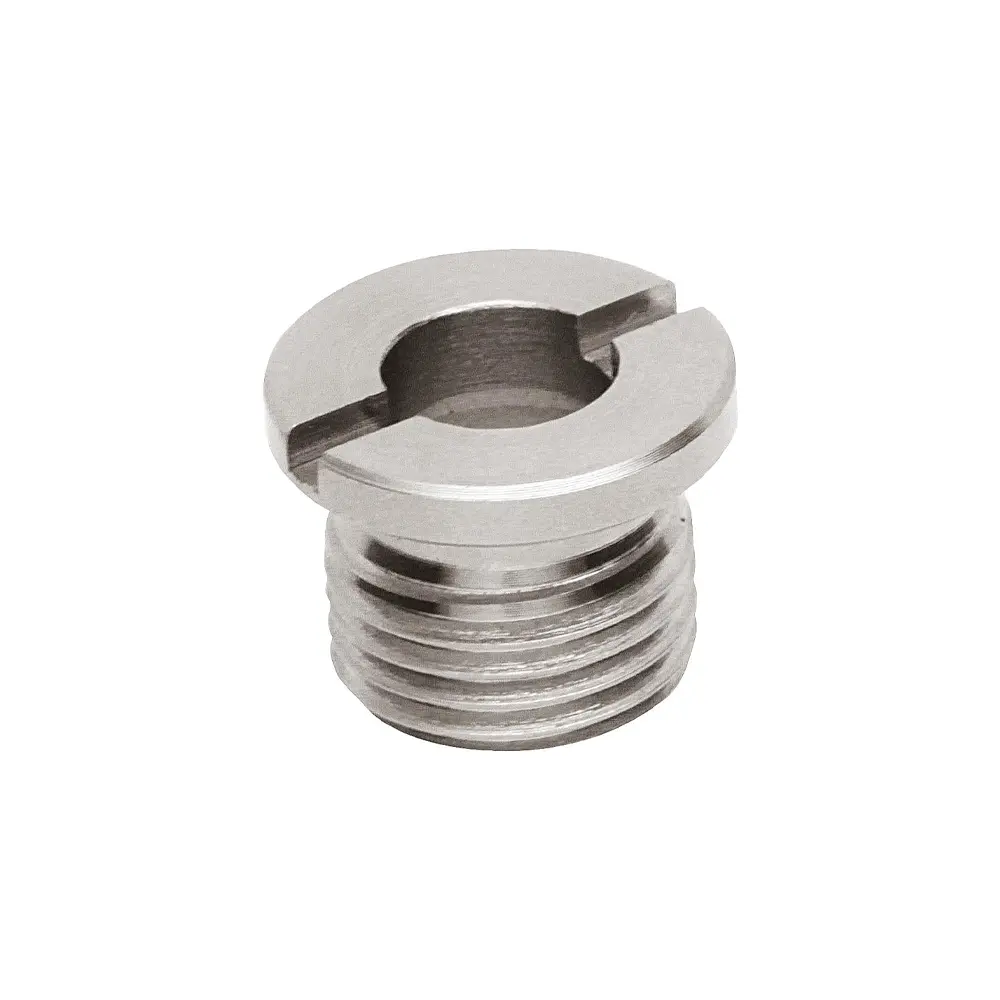

Locating bushes for ball lock pin - K1065.101
1.2481 € + VAT
Qty:pcs
Add to Cart

Locating bushes for ball lock pin - K1065.101

1.2481 € + VAT
Qty:pcs
Add to Cart
Model: MPGXK1065101
Availability: 10 pcs in stock

Material:

  • Steel or stainless steel.

Version:

  • Steel: nickel-plated.
  • Stainless steel: bright.

Note:

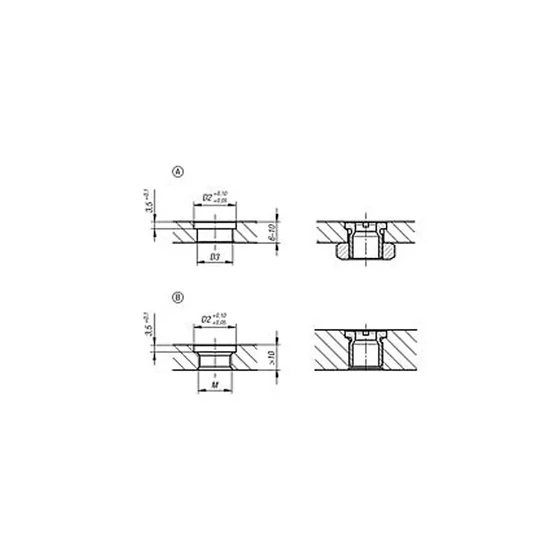

  • Mounting dimensions for Form A:
    • Mounting with nut, max. plate thickness 10 mm.
  • Mounting dimensions for Form B:
    • Screwed in, for plate thicknesses over 10 mm or in a blind hole.

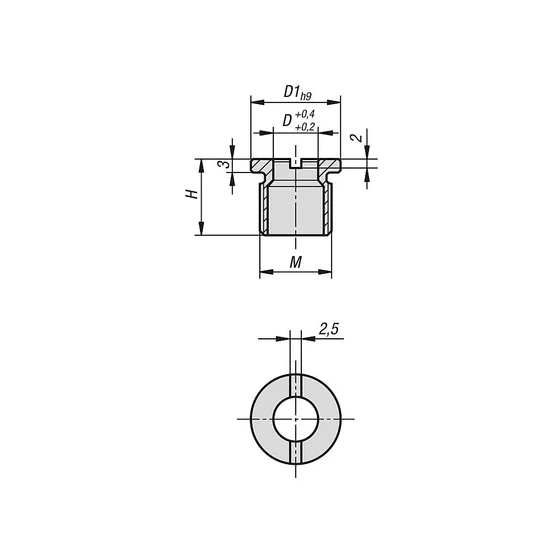

Order No. Material D D1 M H D2 D3
K1065.101 stainless steel 10 20 M16x1.5 17 20 17
