Ball lock pins with plastic twist knob - K1064.1028

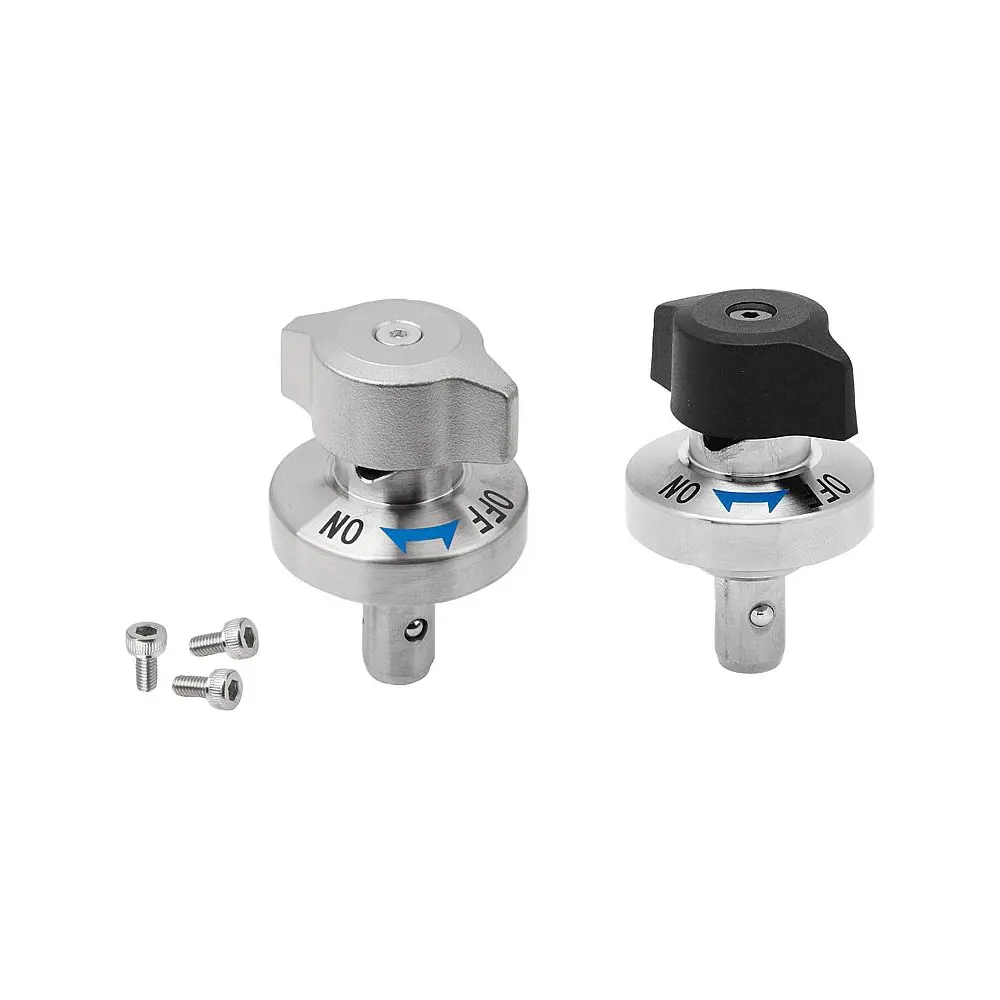

Quick Release Pin K1064.1028 (Polyamide Knob, Steel Pin)

This quick release pin is designed for versatile mounting in various plate thicknesses, offering reliable holding, clamping, and shearing forces. It features a robust construction with a polyamide knob and a steel pin, making it suitable for a range of industrial applications.

Description

• Material:
  • Housing: Stainless steel
  • Pin: Steel (or stainless steel, depending on version)
  • Knob: PA thermoplastic (polyamide) (or stainless steel, depending on version)
  • Ball and Spring: Stainless steel
• Version:
  • Housing: Bright
  • Steel Pin: Tempered and nickel plated
  • Twist Knob: Fibreglass reinforced, black (or bright, depending on version)
  • Ball: Tempered

Note

• Mounting Option 1: Suitable for plate thicknesses of 6 or 12 mm.
• Mounting Option 2: Suitable for plate thicknesses up to 20 mm.
• Including M2 or M3 fastening screws.

Important Considerations

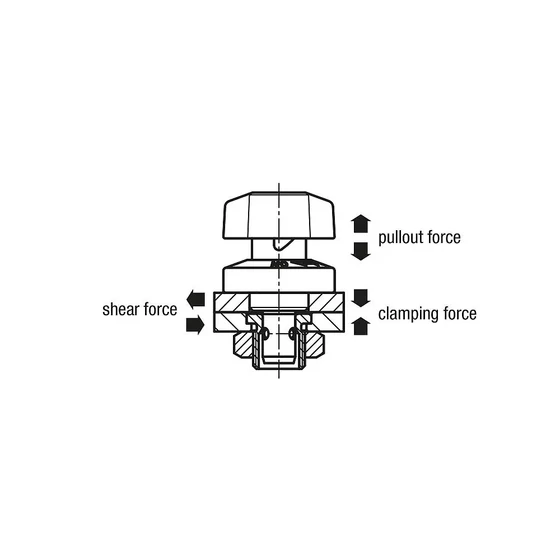

• A gap of more than 0.1 mm will appear between the plates if the retaining force is exceeded.
• Attention: The specified pullout forces only apply in conjunction with locating bush K1065.

Accessory

• Locating Bushes: K1065
• Locating Bushes with Status Sensor: K1843
• Locating Bushes for Status Sensor: K1844

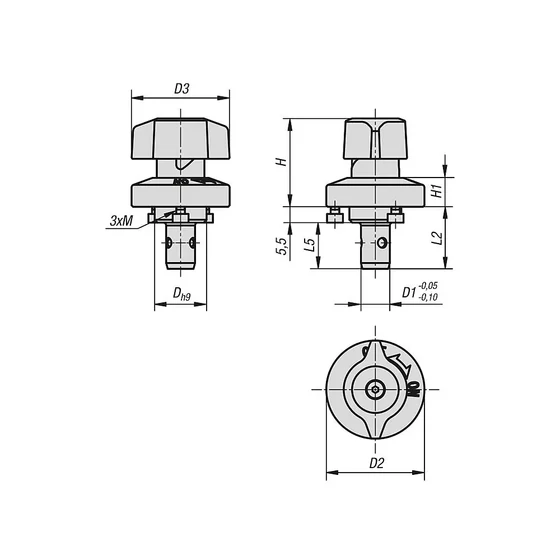

Drawing Reference

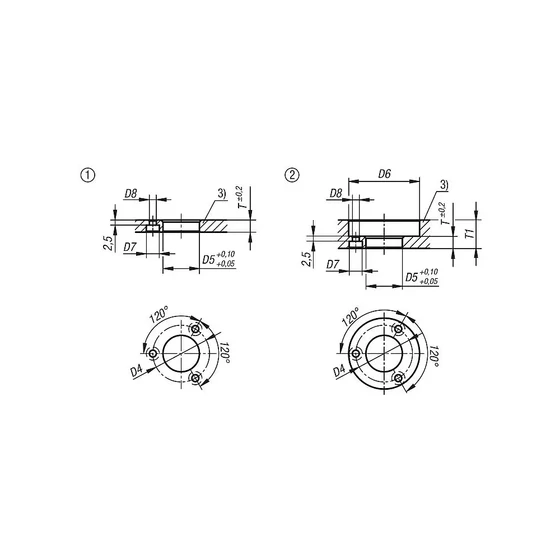

• 1. Mounting option 1
• 2. Mounting option 2
• 3. Plate
