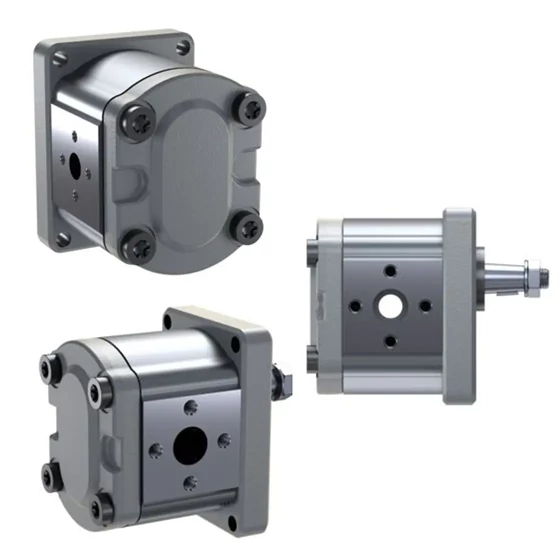

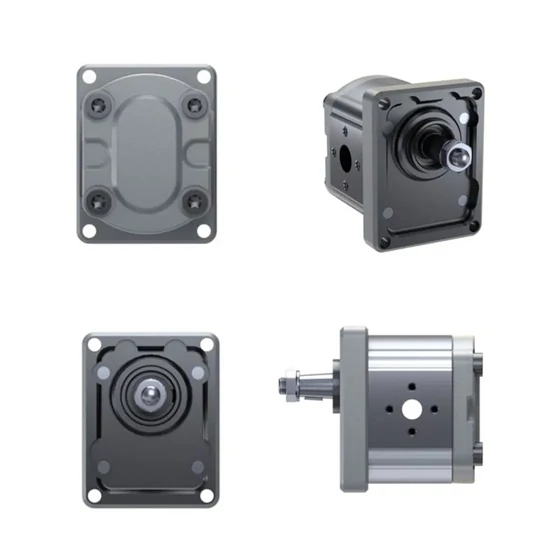

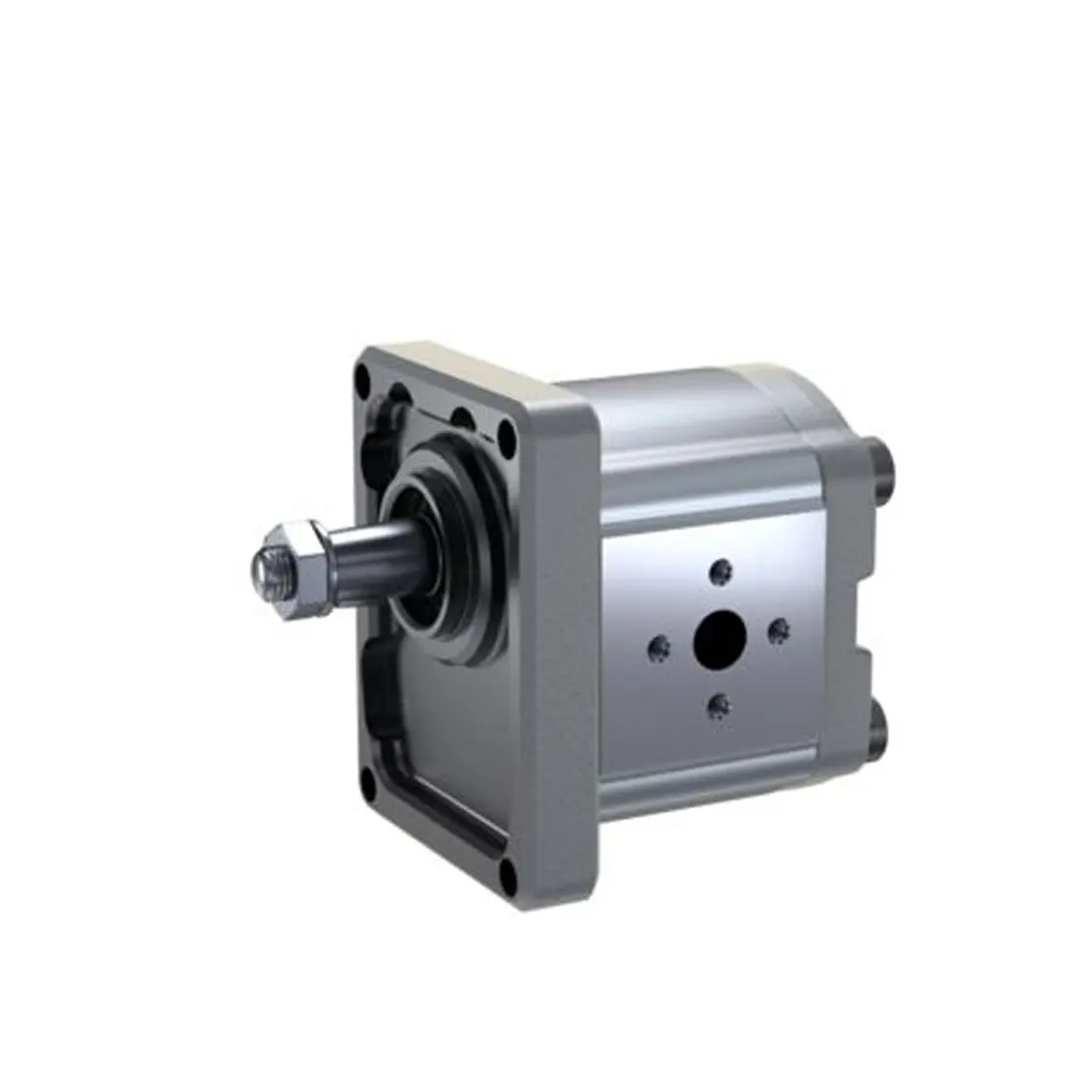

Gearpump - AZPF-12-004RHO30PB

External Gear Pump: High-Performance & Durable

This external gear pump efficiently converts mechanical energy into hydraulic energy. It's engineered with pressure-dependent gap sealing and high-precision manufacturing to ensure high efficiencies and minimize heat loss, making it a reliable choice for various applications.

Key Features

• Consistent high quality from large-volume production
• Long service life
• Slide bearings designed for high loads
• Available with flanged or threaded port connections
• Standard noise level
• Lightweight aluminum housing with a standard cast iron rear cover
• FKM sealing material for excellent compatibility

Technical Specifications

• Product Type: External gear unit (Pump function)
• Model: High performance (F) (ranging from 4…28 cm3/rev)
• Series: Bearing diameter 18 mm
• Nominal Size: 4 cm3/rev
• Max. Flow: 16.0 l/min
• Max. Intermittent Pressure: 280 bar
• Maximum Rotational Speed: 4000 rpm
• Direction of Rotation: Clockwise
• Drive Shaft: Conical keyed 1:8
• Front Cover: Rectangular flange with ∅ 36.47 mm (M8)
• Port Connection: Square flange (Italian version)
• Version: Zinc plated or aluminum, aligned cover
• Weight: 3.1 kg
