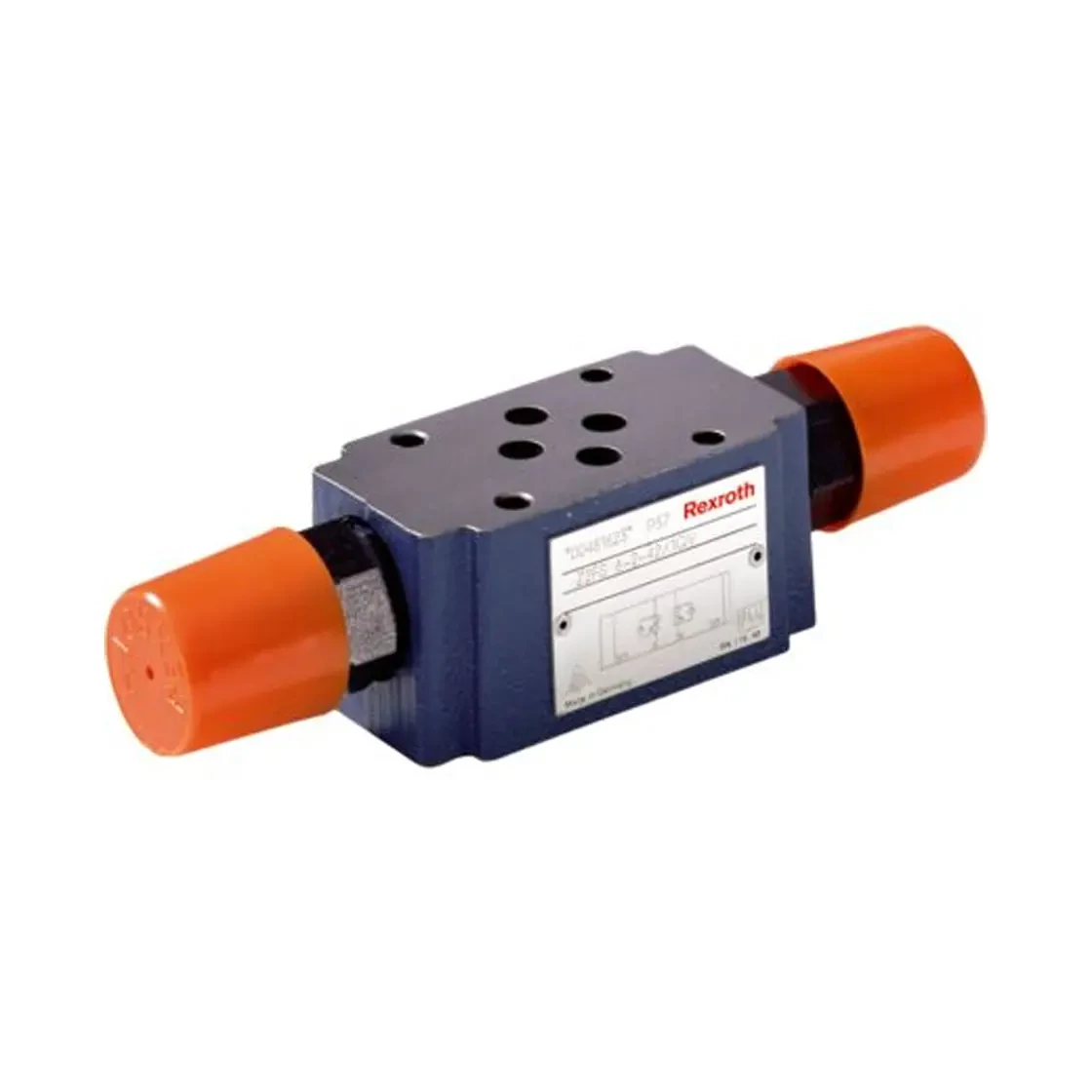

Throttle check sandwich valve - Z2FS 6 A2-4X/1QV

Z2FS6 Flow Control Valve: Precise Mechanical Throttling

This Z2FS6 flow control valve in Size 6 is an industrial hydraulic valve designed for high-performance applications. It offers reliable throttling of flow to a precise setting value, making it ideal for accurate flow regulation in hydraulic systems.

Key Features

• Reliable Flow Throttling: Ensures consistent and precise flow regulation.
• Direct Actuation: Provides immediate and accurate response to mechanical adjustments.
• Setscrew with Lock Nut: Allows for fine adjustment and secure locking of the desired flow rate.
• High Performance Range: Suitable for demanding industrial applications.

Technical Specifications

• Product Family: Z2FS6
• Size: 6
• Connection Diagram: ISO 4401-03-02-0-05
• Type of Connection: Sandwich plate
• Number of Ports: 4
• Number of Switching Positions: 2
• Spool Symbol: A1 → A2 or A2 → A1
• Type of Actuation: With mechanical actuation
• Operating Pressure, Max.: 350 bar
• Max. Flow: 80 L/min
• Electrical Connection Description: Connector 3-pole (2 + PE) according to EN 175301-803 (Note: While electrical connector details are present, the actuation type is mechanical, suggesting this might refer to a monitoring or optional electrical feature not directly controlling the valve's primary function.)
• Hydraulic Fluid Compatibility: HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, HFDR
• Seals Material: FKM
• Weight: 0.98 kg
