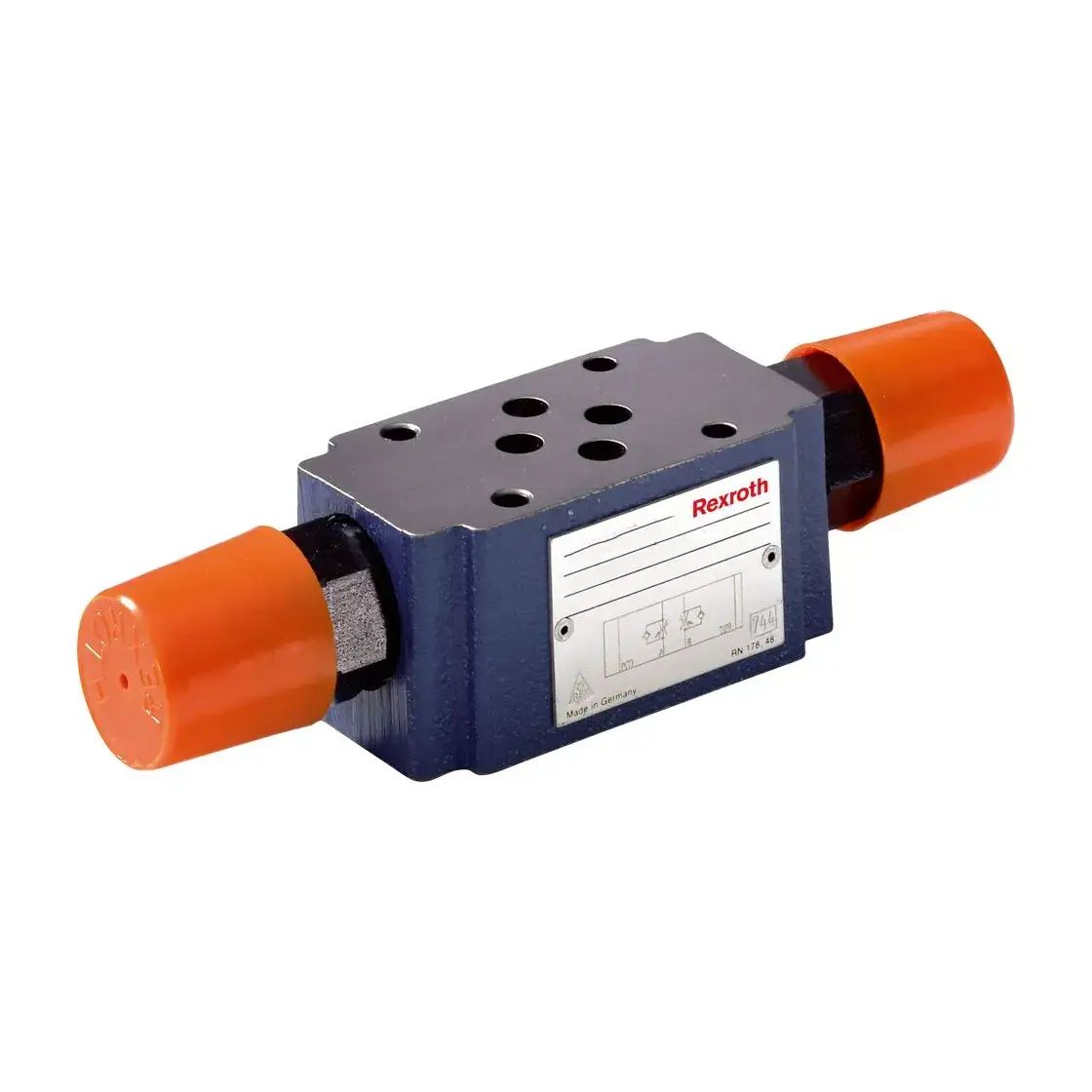

Description
|
Connection diagram |
ISO 4401-03-02-0-05 |
|
Family |
Z2FS6 |
|
Operating pressure max. [bar] |
350 |
|
Max. flow rate [l/min] |
80 |
|
Piston symbol |
A1 → A2, B1 → B2 or A2 → A1, B2 → B1 |
|
How to connect |
Intermediate disk |
|
Rated Size |
6 |
|
Control Method |
with hydraulic actuation |
|
Number of connectors |
4 |
|
Number of switching positions |
2 |
|
Working fluid |
HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR |
|
Seals |
FKM |
|
Weight [kg] |
1.04 |
