Material	Steel
Connection 1	Metric male thread
Connection 2	Metric male thread
Connection 3	Metric male thread
Connection 4	Metric male thread
Connection G1 - G4 (mm)	M14x1,5

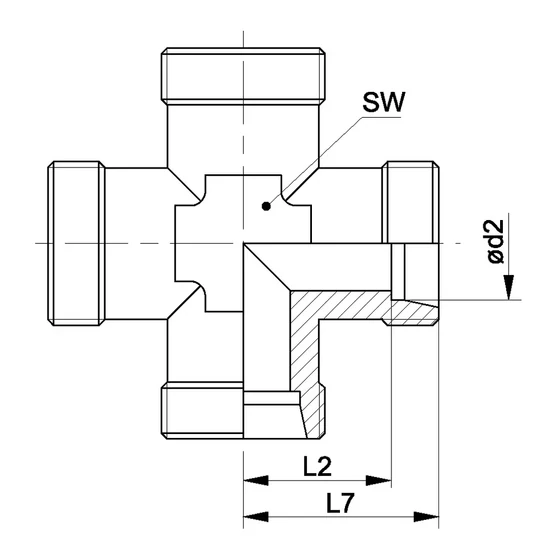

Ø d2 (mm)	8
Surface	Galvanic coating
Design	L
L2 (mm)	14
L7 (mm)	21
SW (mm)	12
Standard	DIN 2353/ISO 8434-1

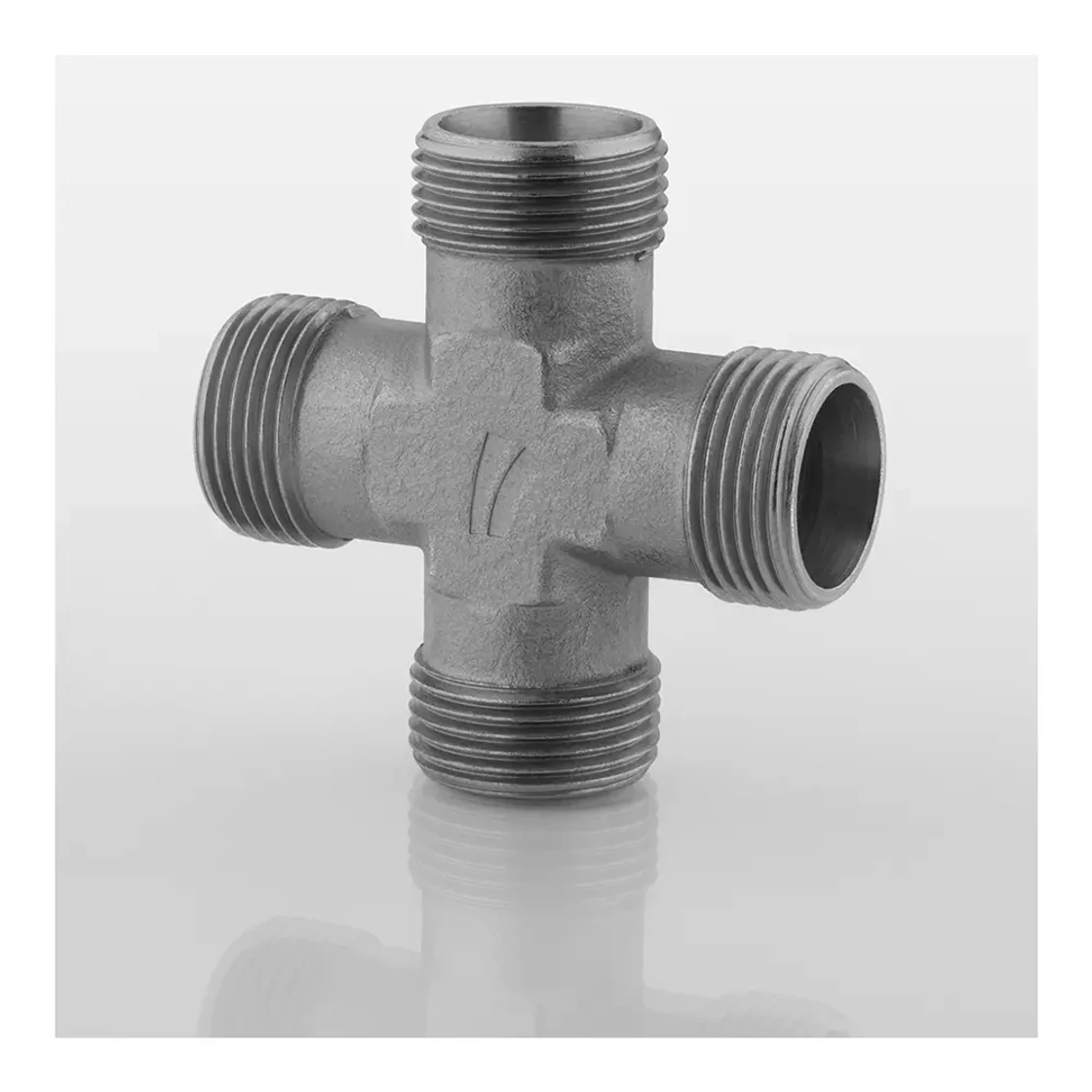

Structural form	K - fitting
Extent	Nut, without cutting ring
Sealing 1	24° internal cone
Sealing 2	24° internal cone
Sealing 3	24° internal cone
Sealing 4	24° internal cone
Operating pressure (bar)	315
Manufacturer article number:	1BX101LO08
Model:	HQCKK08L00
Availability:	Available to order
Manufacturer:	Nem besorolt
