Material	Steel
Connection 1	Metric male thread
Connection 2	Metric male thread
Connection 3	Metric male thread
Connection 4	Metric male thread
Connection G1 - G4 (mm)	M20x1,5

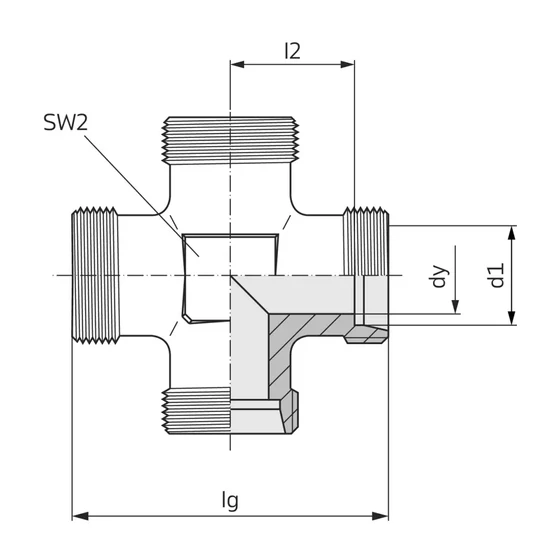

Ø d1 (mm)	12
dy (mm)	8
Surface	Galvanic coating
l2 (mm)	21.5
Design	S
lg (mm)	58
SW2 (mm)	17
Standard	DIN 2353/ISO 8434-1

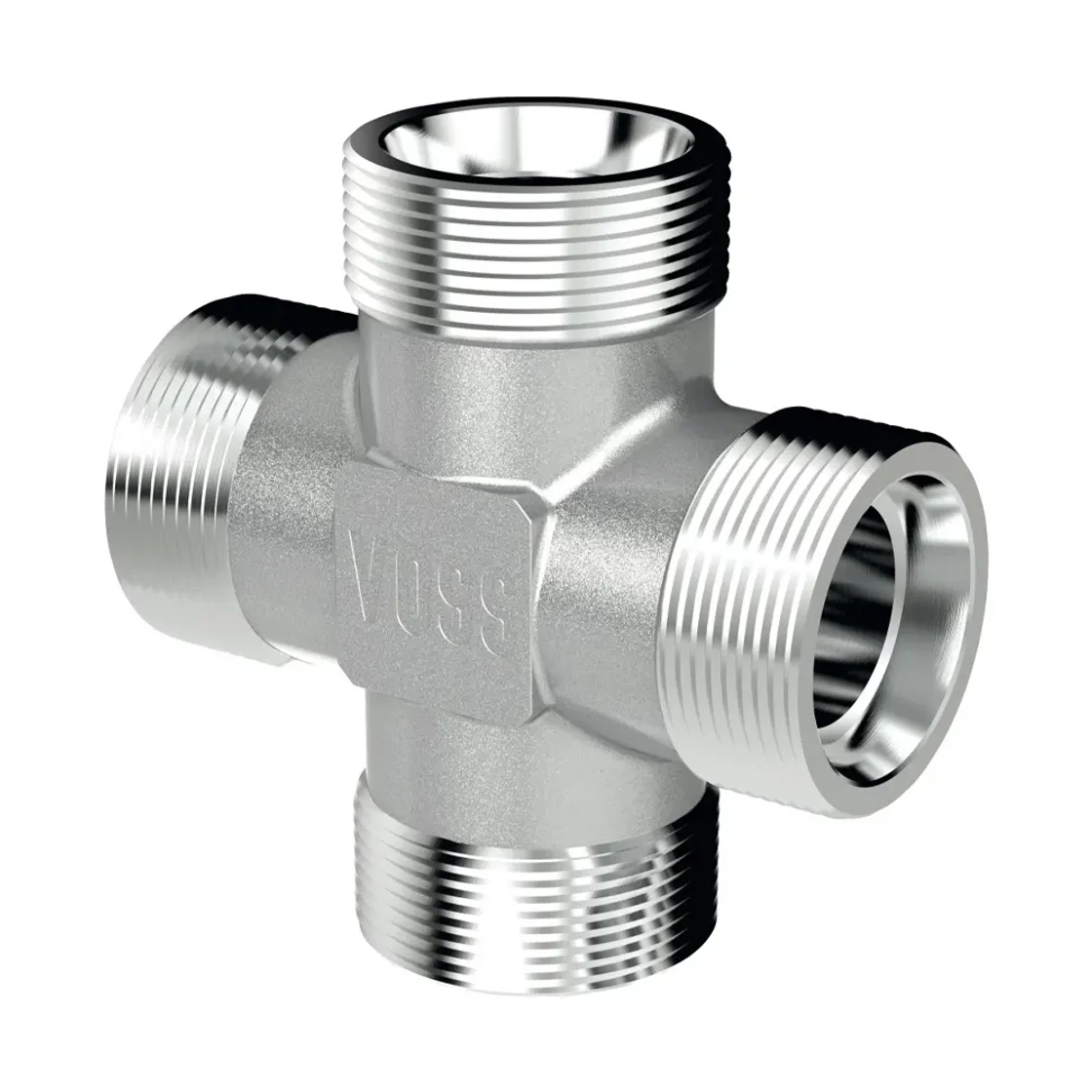

Structural form	K-fitting
Extent	Nut, without cutting ring
Sealing 1	24° internal cone
Sealing 2	24° internal cone
Sealing 3	24° internal cone
Sealing 4	24° internal cone
Operating pressure (bar)	630
Manufacturer article number:	1BX101SO12
Model:	HQCKK12S00
Availability:	Available to order
Manufacturer:	Nem besorolt
