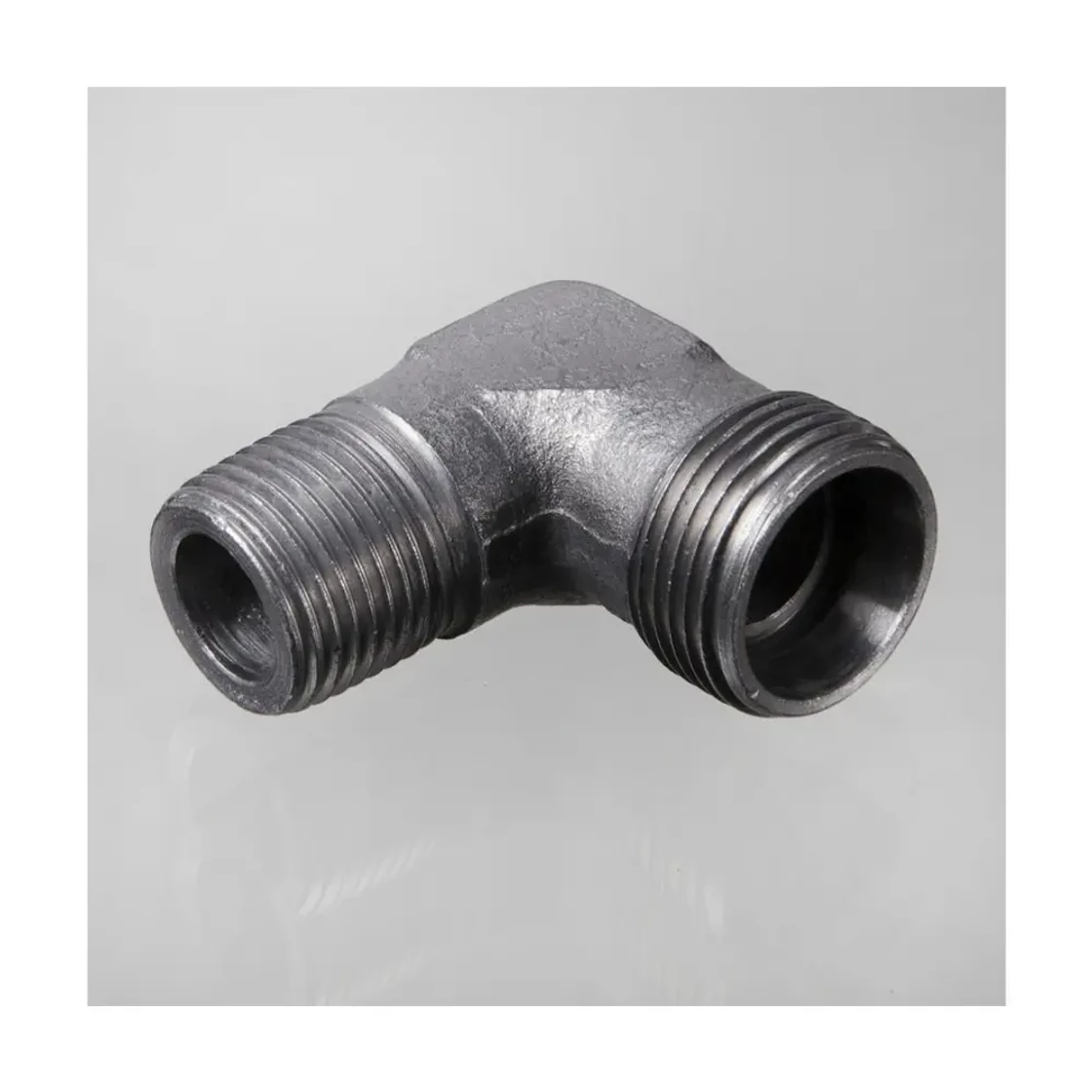

Tube Coupling - WE 06-LLM
4.5310 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - WE 06-LLM

4.5310 € + VAT
Qty:pcs
Add to Cart

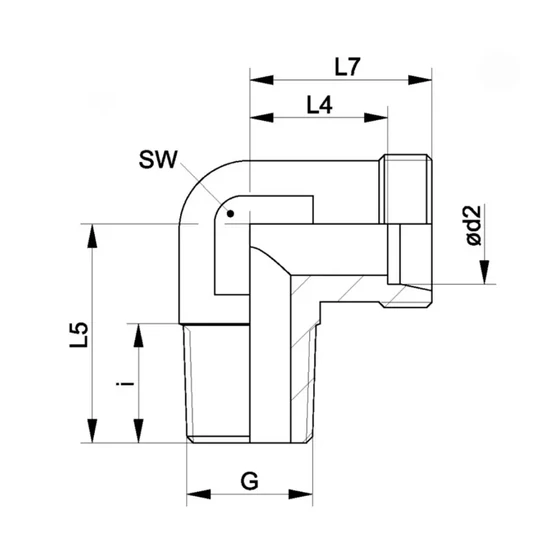

Material Steel
Connection 1 Metric tapered male thread
Connection 2 Metric male thread
Connection G1 (mm) M 10 x 1 K
Connection G2 (mm) M10x1
Connector sub-type Metrikus/metrikus kúpos menet - extra könnyű kivitel (WE-LL/M)
Connector type Könyök becsavarható - WE
Ø d2 (mm) 6
Surface Galvanic coating
i (mm) 9
Design LL
L4 (mm) 9.5
L5 (mm) 17
L7 (mm) 15
SW (mm) 9
Standard DIN 2353/ISO 8434-1
Structural form Screw-in Elbow Fitting - WE
Extent Swivel nut, without cutting ring
Sealing 1 Thread-sealing
Sealing 2 24° internal cone
Operating pressure (bar) 100
Manufacturer article number: 1AX094MLL06
Model: HQCWE06LLM100
Availability: 18 pcs in stock
Manufacturer: Nem besorolt
